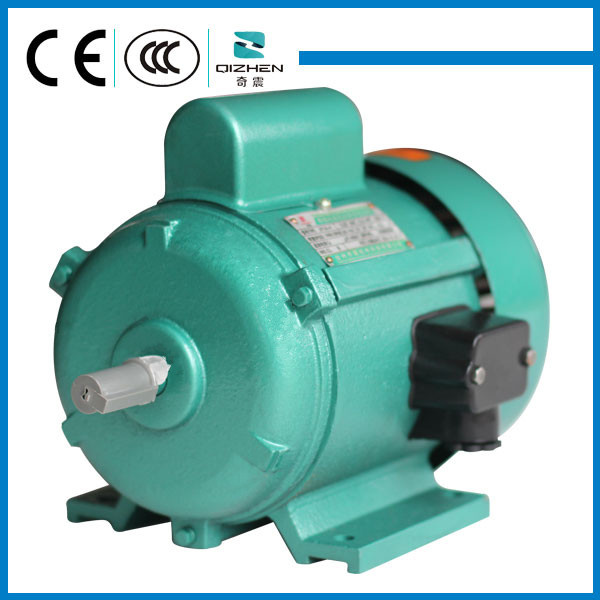

JY Series Capacitor Starting Single Phase Motor

Name: JY Series Capacitor Starting Single Phase Motor
Brand: all-electronics-online.com
SKU: 762990695
Availability: InStock
Rating: 4.7 (47 reviews)

Price:	US $ 45/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JY09A~JY3A
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Frame:	Jy09~3A
Housing:	Cast Iron
Protection Class:	IP44
Insulation Class:	F
Core Wire:	Copper
Pole:	2p, 4p
Duty:	S1
Mounting:	B3
Application:	Power Tools
Operating Speed:	Constant Speed
Number Of Stator:	Single-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Protection Type
Species:	Single Phase
Starting Mode:	Capacitor Starting
Brand:	Qizhen

Product Description

Additional Info

Trademark: QIZHEN
Packing: Carton for Motor Below Iec132 Frame or Wooden Case
Standard: IEC
Origin: Zhejiang, China
Production Capacity: 1000000/PCS/Year

Product Description

Frame: Size 09, 1 and 2, are totally enclosed fan-cooled. The frames can be of cast iron or case aluminum.
Power: 1.1kw to 0.18kw
Protection class: IP44
Insulation class: F
Applications: Where a larger starting torque and a limited starting current are required, and can be used as driving motor of air compressors, refrigerators, medical apparatus and any other small machines which demand full load starting.
Npte: The motor is designed according to powersupplies 220V/110V, 50Hz, Special design may be accommodated with the customers, particalar requirements as 230V, 50Hz or 220V/110V, 60Hz, ect.

Model	power		pole	volt	frequencuy	effiency	power factor	startingtorque	max torque
Model	Kw	Hp	speed r/min	volt	Hz	%	power factor	rated torque	rate torque
JY2A-2	1.1	1.5	2/2850	220	50	0.77	71	2-3.5	1.8-2
JY2B-2	0.75	1	2/2850	220	50	0.75	70	2-3.5	1.8-2
JY2A-4	0.75	1	4/1400	220	50	0.68	69	2-3.5	1.8-2
JY2B-4	0.55	3/4	4/1400	220	50	0.68	67	2-3.5	1.8-2
JY1A-2	0.55	3/4	2/2800	220	50	0.72	66	2-3.5	1.8-2
JY1B-2	0.37	1/2	2/2800	220	50	0.72	66	2-3.5	1.8-2
JY1A-4	0.37	1/2	4/1400	220	50	0.62	64	2-3.5	1.8-2
JY1B-4	0.25	1/3	4/1400	220	50	0.62	60	2-3.5	1.8-2
JY09A-2	0.25	1/3	2/2800	220	50	0.72	63	2-3.5	1.8-2
JY09B-2	0.18	1/4	2/2800	220	50	0.72	60	2-3.5	1.8-2
JY09A-4	0.18	1/4	4/1400	220	50	0.62	56	2-3.5	1.8-2
