Jy Series Low Voltage Current Transformer

Name: Jy Series Low Voltage Current Transformer
Brand: all-electronics-online.com
SKU: 796335245
Availability: InStock
Rating: 4.3 (99 reviews)

Price:	US $ 1-10/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JY series current transformer
Model:	Jy Series Current Transformer 13mm
Is Customized:	Yes
Application:	Electronic
Phase:	Single

Product Description

JY series current transformer is compact.smaller than other models with the current ratio of the transformer is small,clamshell-style terminal cover is well protected by the second terminal.With related accessories you can use Din rail mounting,a current from 5A to 5000A.

Feature

Safe,easy to install,portable

Wide inner window,allowing clamping of big cables or bus -bars

Wide range of sizes to accommodate all the existing installation

Application

Current measurement,monitoring and protection for electrical wiring and equipment.

Current and power measurement for electric motors,lighting,air compressor,heating and ventilation system,air-condition equipment and automation-control system.

Current,power and energy monitoring device.

Relay protection device.

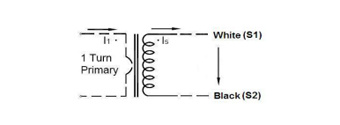

Circuit connection diagram

Technique Index

Electrical Paramenter		Mechanical Parameter

Frequency	50-60Hz	Case	PA/UL94-V0
Rated Input	5A-5000A	Bobbin	PBT
Measuring range	5%In-130%In	Core	Silicon steel
Rated Output	0-5A	Internal structure	_--
Ratio	≤±0.5%	Construction	Screw
Phase angle	≤±30min	Operating Temp	_-25°C~+75°C
Dielectric strength	2.5KV/1mA/1min	Operating Humidity	≤85%
Insulation Resistamce	DC500V/100MΩmin	Output Connection	Terminal

Type Selection(Output: 1A/5A)

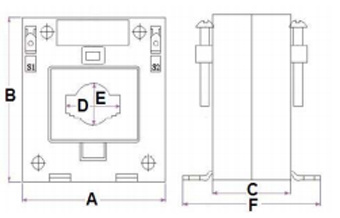

Mfg P/N	Rated Input(A)	Output(A)	Accuracy	Dimensions(mm)
				A	B	C	D	E	F
JY-30	30-400A	1A/5A	0.5 ,1.0	79.0	87.0	42.0	30.0	22.0	66.0
JY-40	100-800A	1A/5A	0.5 ,1.0	79.0	87.0	42.0	41.0	30.0	66.0
JY-60	250-1500A	1A/5A	0.5 ,1.0	103.0	113.0	42.0	60.0	47.0	66.0
JY-100	500-3000A	1A/5A	0.5 ,1.0	151.0	166.0	45.0	101.0	71.0	70.0
JY-125	800-5000A	1A/5A	0.5 ,1.0	192.0	212.0	45.0	126.0	126.0	70.0

We are the professional manufacturing the 0.5-35 KV outdoor indoor, fuse cut out composite insulator dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on

1. Who we are

Heyi is dynamic company established in 1992, who specializes in research and design, manufacturing, and distribution of all kind ofcurrent transformer

Further more, we also develop ours business for the electrical product, like energy meter, power meter, power capacitor, relay, proximity switch and so on, focusing in ours customers needs, provide the best solution supporting ours customers, be the best in their filed of businss

2 why choose us

We have our own facilities for R&D, Production, Sales & Market, and Customer Support, specializing in the design, manufacture and delivery of customized solution. Equipped with all kinds of professional instruments and testing equipment, combined the professional standard of product testing methods, now we has an annual output of 5, 000, 000 or more products.

3 Heyi Mission, vision values

Heyi mission is to provide reliable, accurate and customized current transformer solution

Heyi vision is leading global split core CT manufacture and energy solution provider

Values Enthusiastic by our work, we offer a quality personal and close service to our customers

Some products have been approved by CE and IEC certificates.
