| Prod Model: |
JZC-22F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Current: |
20A |
| Brand: |
Winston |
| Protect Feature: |
Sealed |
| Contact Load: |
Low Power |
| Contact Form: |
1A, 1b, 1c |
Product Description
Specifications

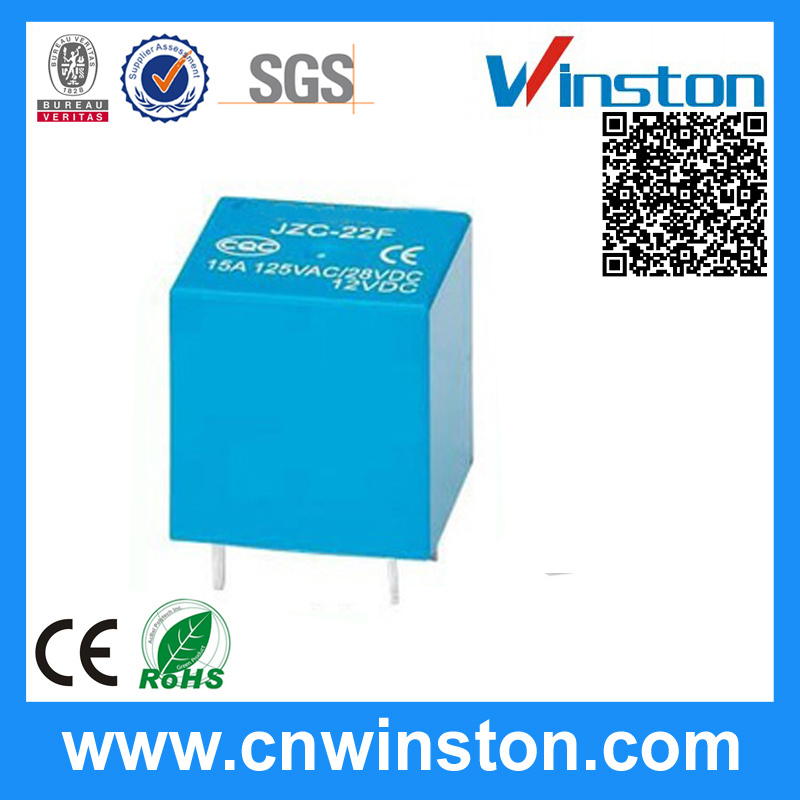

JZC-22F Miniature relay / pcb relay / pcb mounting relay
1 widely exported to middle east, Asia, Europe, etc
2 fast delive
Product Description
JZC-22F Miniature relay / pcb relay / pcb mounting relay
Our company have more other Power relay, PCB relay, Air-conditioning relay, General-purpose relay, Automotive relay, Magnetic latching relay, Time relay, Solid state relay types, welcome to contact us for deails.
Contact Specification
|
Contact form
|
1Z, 1H
|
Contact resitance
|
≤100mΩ ( 1A 6VDC )
|
Contact material
|
AgCdO AgSnO 2
|
Contact capacity
|
1A 240VAC/30VDC 2A 120VAC
|
|
Technical Specification
|
Insulation resistance
|
≥100 mΩ ( 500VDC )
|
Dielectric strength
|
Between coil and contacts≥500VAC 1min
|
Between open contacts≥500VAC 1min
|
Terminal type
|
PCB mounting
|
|
Coil Specification
|
Rated coil power
|
360mW
|
|
Coil Data
|
Nominal voltage
|
Operate voltage
|
Release voltage
|
Coil resistance
|
VDC
|
VDC
|
VDC
|
Ω± 10%
|
3
|
2.3
|
0.3
|
25
|
5
|
3.8
|
0.5
|
70
|
6
|
4.5
|
0.6
|
100
|
9
|
6.8
|
0.9
|
220
|
12
|
9.0
|
1.2
|
400
|
24
|
18.0
|
2.4
|
1600
|
| Dimension |
| 20.3mm*16.6mm*20.4mm |
| Contact Feature |
Form |
1A,1B,1C |
| Rated load | 10A 15A |
| Max switching voltage | 240VAC/28VDC NO:125V |
| Contact resistance | ≤100mΩ |
| Material | Sliver Alloy |
| Electrical life | ≥1*105 |
| Mechanical life | ≥1*107 |
| Operate voltage (23ºC) | DC:≤75%*Rated voltage |
| / |
| Release voltage (23ºC) | DC:≥10%*Rated voltage |
| / |
| Maximum voltage (23ºC) | 110%*Rated voltage |
| Coil voltage | DC | DC6-220V(Customize allowed) |
| AC | / |
| Coil power | DC | 2.0W |
| AC | / |
| Pick-up time | ≤10ms |
| Release time | ≤5ms |
Dielectric
strength | Between Same-pole contacts | 1200VAC/1min(leakage current 1mA) |
| Between Opposite-pole contacts | / |
| Between contacts and coil | 1500VAC/1min(leakage current 1mA) |
| Insulation resistance | ≥100mΩ(500VDC) |
| Ambient temperature | -55ºC ~70ºC |
| Ambient humidity | 35%-80%RH |
| Atmospheric pressure | 86-106KPa |
| Shock resistance | 10G (sinusoidal half-wave pulse:11ms) |
| Vibration resistance | 10-55Hz (double amplitude: 1.5mm) |
| Installation | PCB |
| Packing | Inner box | Foam box | 100PCS |
| Inner box | Foam box | 1200PCS/CTN |
Dimension of the
carton |
150PCS/CTN | 300mm*230mm*195mm |
Weight | 1PCS | Approximate 12g |
| 150PCS/CTN | G.W:15.5Kg N.W:14.5Kg |
TRADE INFO
Trade Terms:FOB ,CIF ,CFR,EXW,DDP
Payment terms:T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions:30% deposit in advance,70% balance before shipping.
Delivery time:3-7working days after deposit,2-4 working days for inventory
Packing:Neutral carton,Wooden case for large size
Shipping:By sea,by air and by express delivery
