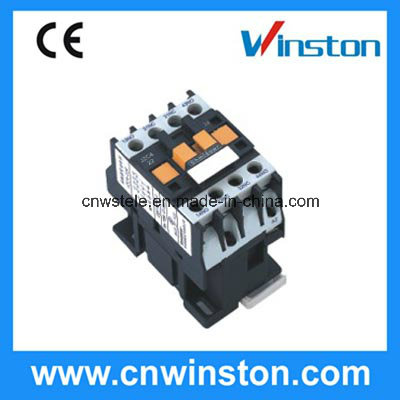

| Prod Model: |
JZC4-40, 31, 22, 13, 04 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Protect Feature: |
Sealed |
| Contact Load: |
Low Power |
| Frequency: |
50/60Hz |
| Contacts: |
Silver/Copper |
| Quality: |
Stable and Reliable |
Product Description

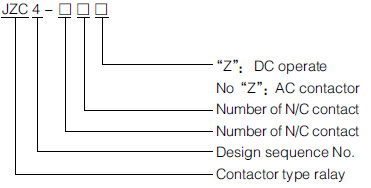

Model and meaning
Main Technical Parameter
Rated insulation voltage |
660V |
Miniature load |
6V*10mA |
Mechanical life |
10000000 |
Electrical life |
1000000 |
Operating frequency |
1200/h |
Coil voltage |
24V, 36V,48V, 110V, 127V, 220V, 380V |
Rated controlled power |
DC-13 |
220V, 33W |
AC-15 |
380V, 360VA |
Conventional thermal current (A) |
10 |
Contact Combination
Type |
Open contact number *2 |
Close contact number *2 |
JZC4-40 |
4 |
0 |
JZC4-31 |
3 |
1 |
JZC4-22 |
2 |
2 |
JZC4-13 |
1 |
3 |
JZC4-04 |
0 |
4 |
F4-11 |
1 |
1 |
F4-20 |
2 |
0 |
F4-02 |
0 |
2 |
F4-13 |
1 |
3 |
F4-31 |
3 |
1 |
F4-22 |
2 |
2 |
F4-40 |
4 |
0 |
F4-04 |
0 |
4 |

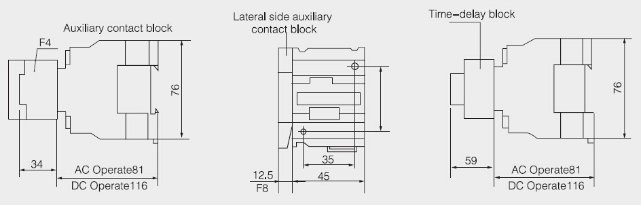

Dimension
Structure features: 1. The contactor type relay has the excellent features with small volume, light weight, low power consumption, long life time, easy mounting, safety and reliable features
2. Coil voltage of the relay: AC24V, 110V, 220V,380V; DC12V,24V,48V,110V,220V
Special coil voltage please negotiate with our company for Custom made
3. Motion characteristics
Voltage Pick-UP: AC 85~110%us; DC 80~110%us;
Voltage Drop-out: AC 20~75%us: DC 10~70%us
Normal working conditions and installation conditions:
1. Ambient air temperature: -5~40, The average ambient air temperature data within 24 hours can not exceed more than +35
2. Height above sea level: no more than 2000m
3. Air conditions:
4. class of pollution degree: Class 3
5. Mounting degree: III
6. Mounting condition: Skewness between the fitting surface and the vertical more than +/-5
7. Mounting method: Can use nail or 35mm standard card rail installed.
