| Prod Model: |
K type Assembly Thermocouple |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thermocouple: |
Assembly Thermocouple |
| Brand: |
Hongtai Assembly Thermocouple |
| Flange Or Screw: |
Customized |
| MOQ: |
1 PC |
| K Type Thermocouple: |
Max 1200 C |
| E Type Thermocouple: |
Max 900 C |
| J Type Thermocouple: |
Max 750 C |
| T Type Thermocouple: |
Max 350 C |
| S Type Thermocouple: |
Max 1600 C |
| Output: |
Digital Sensor |
| Material: |
Metal |
Product Description

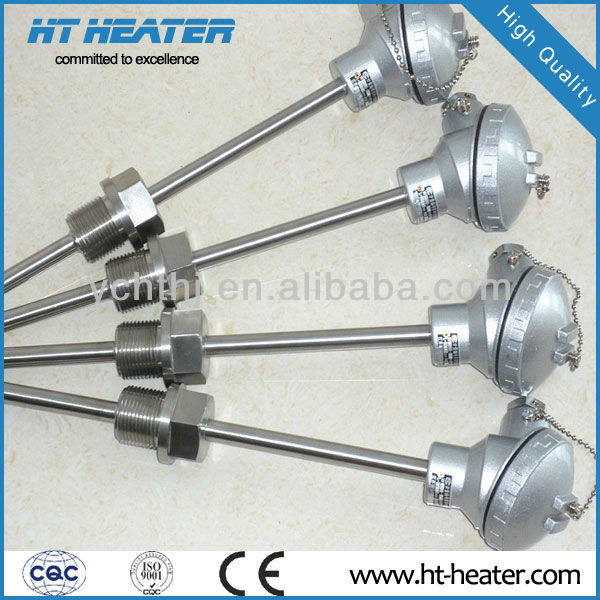

K type Assembly Thermocouple for temperature
K type Assembly Thermocouple
Hongtai's thermocouples are mainly customized strictly according to customer's requirements. To meet various standards, the production process is carefully inspected by our engineer and technician.
The assembly thermocouple has the ability of good corrosion resistance, high working temperature, stable performance and long operating life. The calibration of it can be K/E/J/B/S etc. With different calibration, its working temperature range also changes.
Due to the high demand of this kind thermocouple, our technican will cooperate with you and help you make a better choice.
Model naming method:
W----temperature instrument
R----thermocouple
Thermal element material
N: NiCr-NiSi
M: NiCrSi-NiSi
E: NiCr-CuNi
C: Cu-CuNi
F: Fe-CuNi
Filament
Blank Simples
2 Duplex
Mounting & Fixing
1. Without Fixing Device
2. Threaded connector
3. Movable flange
4. Fixed flange
5. Threaded cone connector
Junction Box
2. Anti-spray type
3. Water-proof type
Protection tube diameter
1. Diameter 16
2. Diameter 20
3. Diameter 16 high Al content tube
4. Diameter 20 high Al content tube
Applications:
1. Widely used in science and industry
2. Temperature measurement for kilns
3. Gas turbine exhaust application
4. Used for diesel engines and other industrial processes.
When inquiry, please specify:
1. Full series No, If you have
2. Application Scope (Petroleum industry, Chemical industry, Power Station, etc)
3. Required Temperature Range
4. Sensor Material or type(PtRh6, K, N, P, C etc)
5. Fixing or Installation Type (Movable Flange Type, Non Fixing type Thread type)
6. Thermowell Material and Diameter if needed (1Cr18Ni9Ti)
7. Insert Length
8. Accuracy Class (Thermocouple, Resistance thermometer AB)
9. Other Special Requirements
|
Model |
Graduation Mark |
Temperature |
Mounting & Fixing |
|
WRN |
K |
-40-1200 |
1. without fixing devices
2. threaded connector
3. Movable flange
4. fixed flange
5. elbow tube connection
6. threaded cone connection
7. straight tube connection
8. fixed threaded tube connection
9. movable threaded tube connection |
|
WRE |
E |
-40-900 |
|
WRF |
J |
0-750 |
|
WRC |
T |
-40-350 |
|
WRP |
S |
0-1600 |
|
WRQ |
R |
0-1600 |
|
WRR |
B |
600-1700 |
|
WRM |
N |
-40-1300 |
