Kema Certified MCCB Circuit Breaker

Name: Kema Certified MCCB Circuit Breaker
Brand: all-electronics-online.com
SKU: 676299915
Availability: InStock
Rating: 4.4 (141 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	400/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	UKM32-160A/3P
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty:	2 Years
Arc-extinguishing Medium:	Air
Breaking Capacity:	Low Voltage Circuit Breakers
Poles Number:	3
Certification:	Kema
Operation:	Electric Type
Installation:	Fixed
Speed:	High-Speed Circuit Breaker
Structure:	Moulded Case Circuit Breaker
Type:	Moulded Case Circuit Breaker
Function:	Overload Protection

Product Description

KRIPAL IS THE ONLY ONE WHO MAKE THIS SERIES IN CHINA.

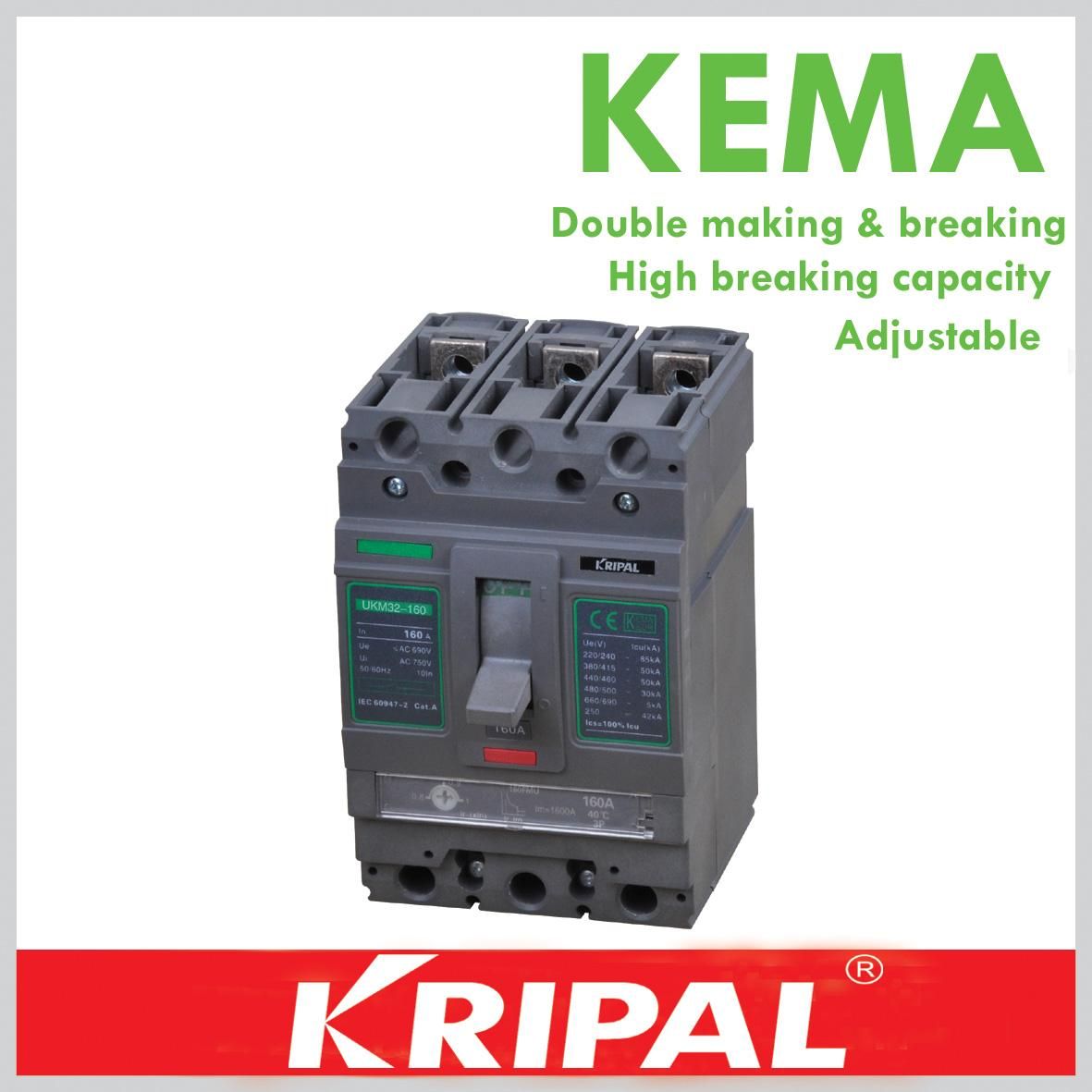

MCCB circuit breaker

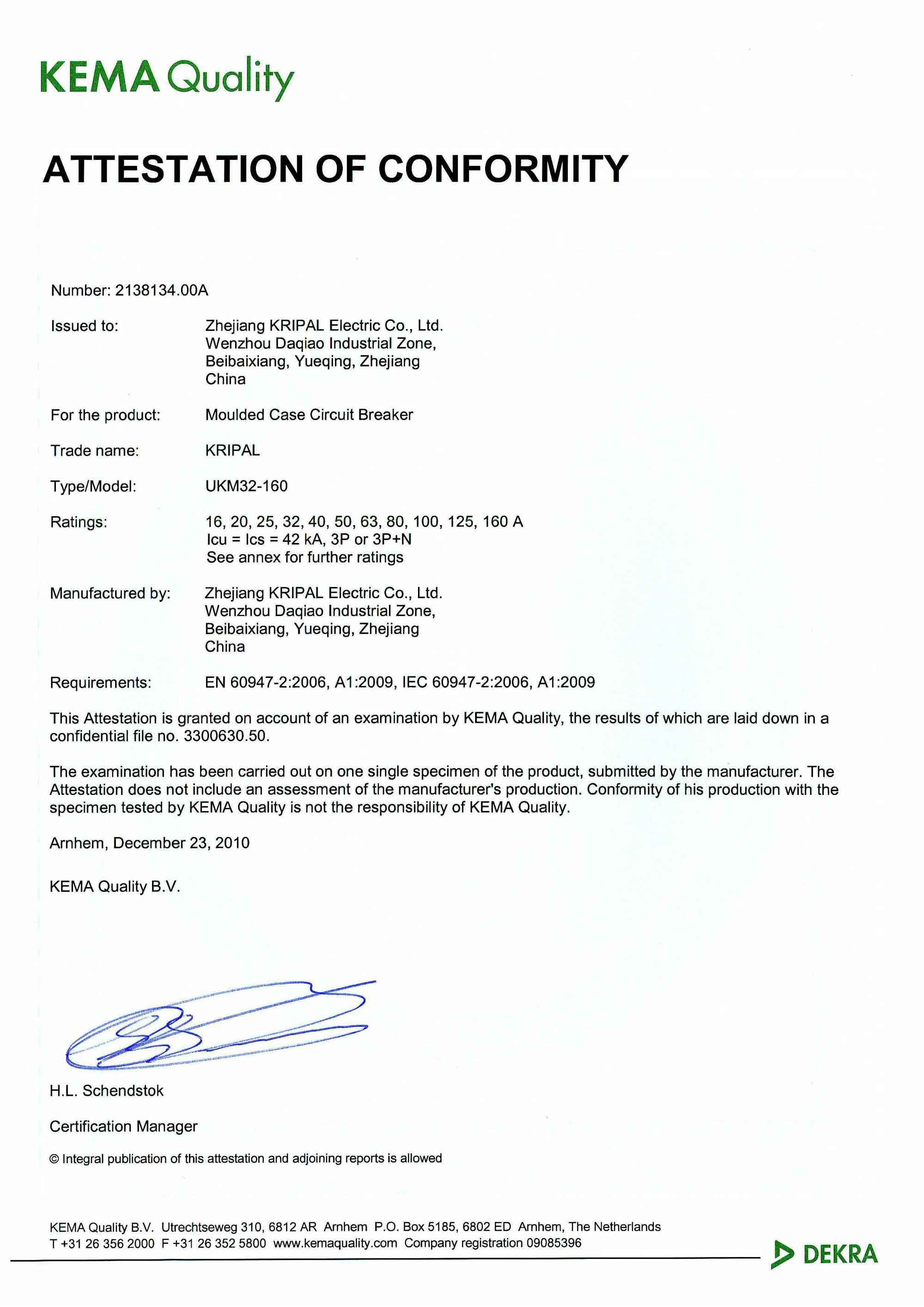

KEMA CERTIFIED

1. Thermal Magnetic Adjustable

2. Double making & double breaking design

3. Contacts: 85% AgCdO

4. Metal parts: Copper

5. Plastic Parts: Brand-new materials

6. High breaking capacity.

7. Bearing rotating shaft

8. The max breaking capacity of each model is up to 150 kA

9. U-type fixed contact design

10. Advanced magnetic field analysis

11. Don't contain any noxious substances and its manufacturing And processing are performed in accordance with the requirements of ISO14001.

MCCBs for power distribution		UKM32-160	UKM32-250	UKM32-630
Frame size		160	250	630
Rated current, In		16, 20, 25, 32, 40, 50, 63, 80, 100, 125, 160	40, 50, 63, 80, 100, 125, 160, 200, 250	300, 400, 500, 630
Poles		3, 4,	3, 4,	3
Rated operational Voltage, Ue	AC (V)	690	690	690
Rated operational Voltage, Ue	DC (V)	500	500	500
Rated impulse withstand voltage, Uimp		8	8	8
Rated insulation voltage. Uimp		750	750	750
Rated ultimate short circuit breakering capacity, Icu		N	N	N
AC 50/60HZ	220/240V (KA)	85	100	100
	380/415V (KA)	50	85	65
	440/460V (KA)	50	70	65
	480/500V (KA)	30	50	42
	660/690V (KA)	5	8	10
DC	250V (KA)	42	65	50
2 poles in series	500V (KA)	42	65	50
Rated service breaking capacity, Ics(%Icu)		100%	100%	100%

Founded: In 1987;

People of the staff: 500;

Engineers: More than 30

QA/QC: More than 20

Certificate: CCC, CB, CE, UL, TUV, Semko, KEMA, SAA, ISO9001

The land space of the company: Amounts to 20000m2

What we do: Products' Design, mold building, production of parts (injection & punching), assembling, and products' Inspection

Main products: Isolator switch, changeover switch, waterproof switch socket, industrial plug socket, cable float level switch, terminal junction box, solar photovoltaic inverter, circuit breaker contactor relay and etc.

Main market: Europe, Australia, Middle-east, Asia, Southeast Asia, America, Africa
