Keypad Membrane Flexible FPC Design 3m Tape Adhesive

Name: Keypad Membrane Flexible FPC Design 3m Tape Adhesive
Brand: all-electronics-online.com
SKU: 827072405
Availability: InStock
Rating: 4.3 (69 reviews)

Price:	US $ 1.33/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-1827-V9
Board Thick:	0.10mm
Surface Cu Thickness:	35 Um (1oz)
Coverlay Colour:	Yellow
Stiffener Thickness:	0.2mm
Color of Silkscreen:	White
Surface Finish:	Immersion Gold
Peeling Test of Coverlay:	No Peelable
Stiffener Material:	Polyimide Stiffner / 3m Tape
RoHS Required:	Yes
Test:	100% Electrical Test
Structure:	Single-Sided FPC
Material:	Polyimide
Combination Mode:	Adhesive Flexible Plate
Conductive Adhesive:	Conductive Silver Paste
Application:	Keypad Membrane

Product Description

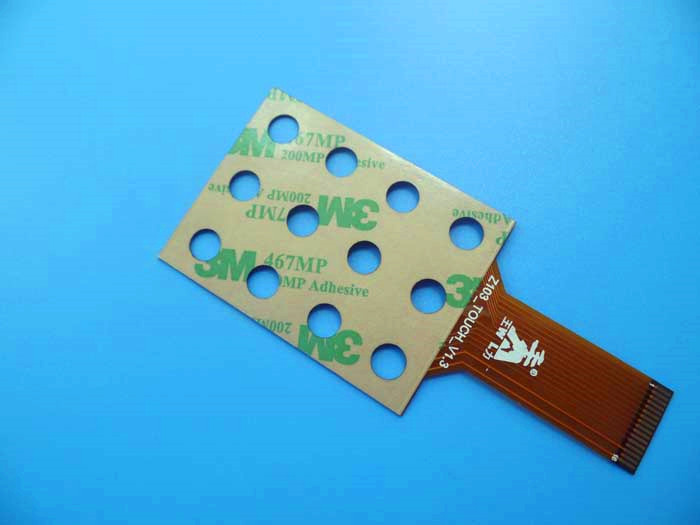

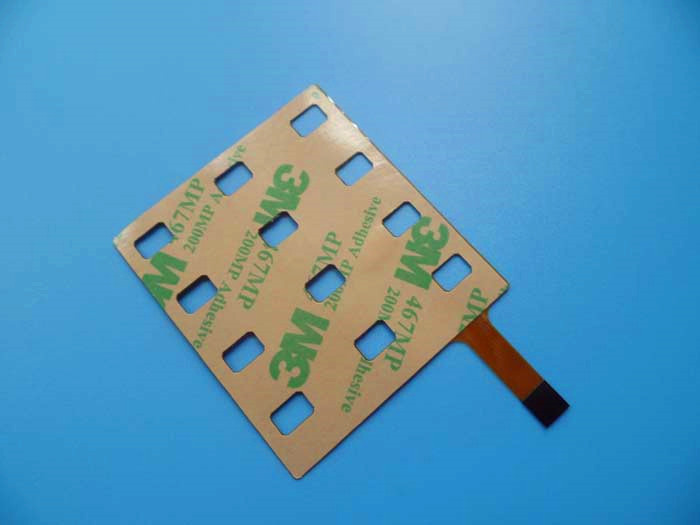

Keypad Membrane Flexible FPC Design 3M Tape Adhesive 403

Commodity Introduction

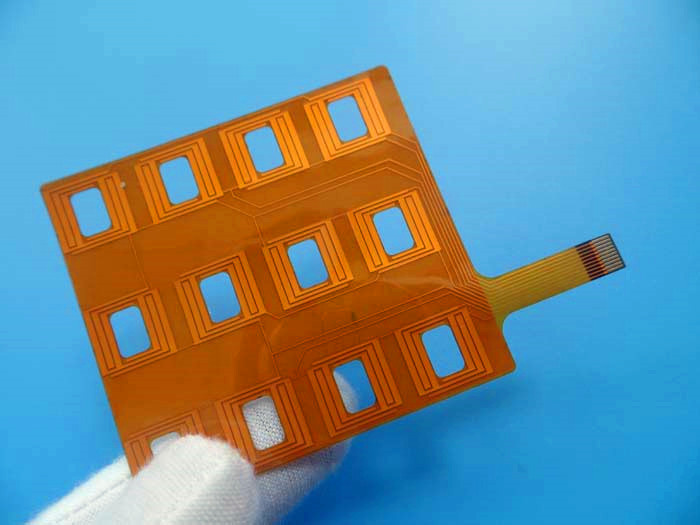

This is a type of flexible printed circuit for the application of keypad membrane. It's a single sided layer FPC at 0.1mm thick. The base laminate is from ITEQ, It's fabricated per IPC 60
-12 Class 2 using supplied Gerber data. Polyimide stiffner is applied on the inserting head.

Parameter & Data Sheet

Size of Flexible PCB	67.23 X 50.56mm
Number of Layers	1
Board Type	Flexible PCB
Board Thickness	0.10mm
Board Material	Polyimide 25µm
Board Material Supplier	ITEQ
Tg Value of Board Material	60ºC

PTH Cu thickness	≥20 µm
Inner Iayer Cu thicknes	N/A
Surface Cu thickness	35 µm

Coverlay Colour	Yellow
Number of Coverlay	2
Thickness of Coverlay	25 µm
Stiffener Material	Polyimide stiffner / 3M tape
Stiffener Thickness	0.2mm

Type of Silkscreen Ink	IJR-4000 MW300
Supplier of Silkscreen	TAIYO
Color of Silkscreen	White
Number of Silkscreen	1

Peeling test of Coverlay	No peelable
Legend Adhesion	3M 90ºC No peeling after Min. 3 times test

Surface Finish	Immersion Gold
Thickness of Nickle/Gold	Au: 0.03µm(Min.); Ni 2-4µm
RoHS Required	Yes
Famability	94-V0

Thermal Shock Test	Pass, -25ºC±125ºC, 1000 cycles.
Thermal Stress	Pass, 300±5ºC,10 seconds, 3 cycles. No delamination, no blistering.
Function	100% Pass electrical test
Workmanship	Compliance with IPC-A-600H & IPC-6013C Class 2

Standard specifications of RO4350B and RO4003C Substrate

RO4000 Series High Frequency Circuit Materials
Standard Thickness
RO4003C
0.008" (0.203mm)
0.012" (0.305mm)
0.016" (0.406mm)
0.020" (0.508mm)
0.032" (0.813mm)
0.060" (1.524mm)

RO4350B
0.0040" (0.101mm)
0.0066" (0.168mm)
0.010" (0.254mm)
0.0133" (0.338mm)
0.0166" (0.422mm)
0.020" (0.508mm)
0.030" (0.762mm)
0.060" (1.524mm)

Standard Panel Size
12" x 18" (305 x 457 mm)
24" x 18" (610 x 457 mm)
24" x 36" (610 x 915 mm)
48" x 36" (1.224m x 915 mm)
0.004"(0.101mm) material is not available in panel size larger than 24" x 18" (610 x 457 mm)

Standard Copper Cladding
1/2 oz(17µm) electrodeposited copper foil (0.5ED/0.5ED)
1 oz (35µm) electrodeposited copper foil (1ED/1ED)
2 oz (70µm) electrodeposited copper foil (2ED/2ED)
