| Prod Model: |
KN518 |
| SIP VoIP Poe: |
Support |
| With Camera: |
Optional |
| Webpage Upto: |
50+ IP Station Direct Call |
| IP Address Sound Reporting: |
LCD Display |
| Borad Cast Amplifier: |
for Paging Option |
| Terminal Ports: |
8PCS I/O Terminal Ports |
| Working Temperature: |
-40 Degree +70 Degree |
| Optional: |
with TFT Display and Camera |
| Support: |
Adjustable Sound Volume |
| Door Phone: |
RFID Card Reader |
| Type: |
VoIP SIP PCB Board Kn518 Kntech Poe |
| Dielectric: |
VoIP SIP PCB Board Kn518 Kntech Poe |
| Material: |
VoIP SIP PCB Board Kn518 Kntech Poe |
| Flame Retardant Properties: |
VoIP SIP PCB Board Kn518 Kntech Poe |
| Mechanical Rigid: |
VoIP SIP PCB Board Kn518 Kntech Poe |
| Processing Technology: |
VoIP SIP PCB Board Kn518 Kntech Poe |
| Base Material: |
VoIP SIP PCB Board Kn518 Kntech Poe |
| Insulation Materials: |
VoIP SIP PCB Board Kn518 Kntech Poe |
| Model: |
Kn518 |
| Brand: |
Kntech |
Product Description
Product Description
More than 8pcs I/O terminal ports
SIP VoIP POE
Working at -40ºC + 70 ºC (real industrail standard)

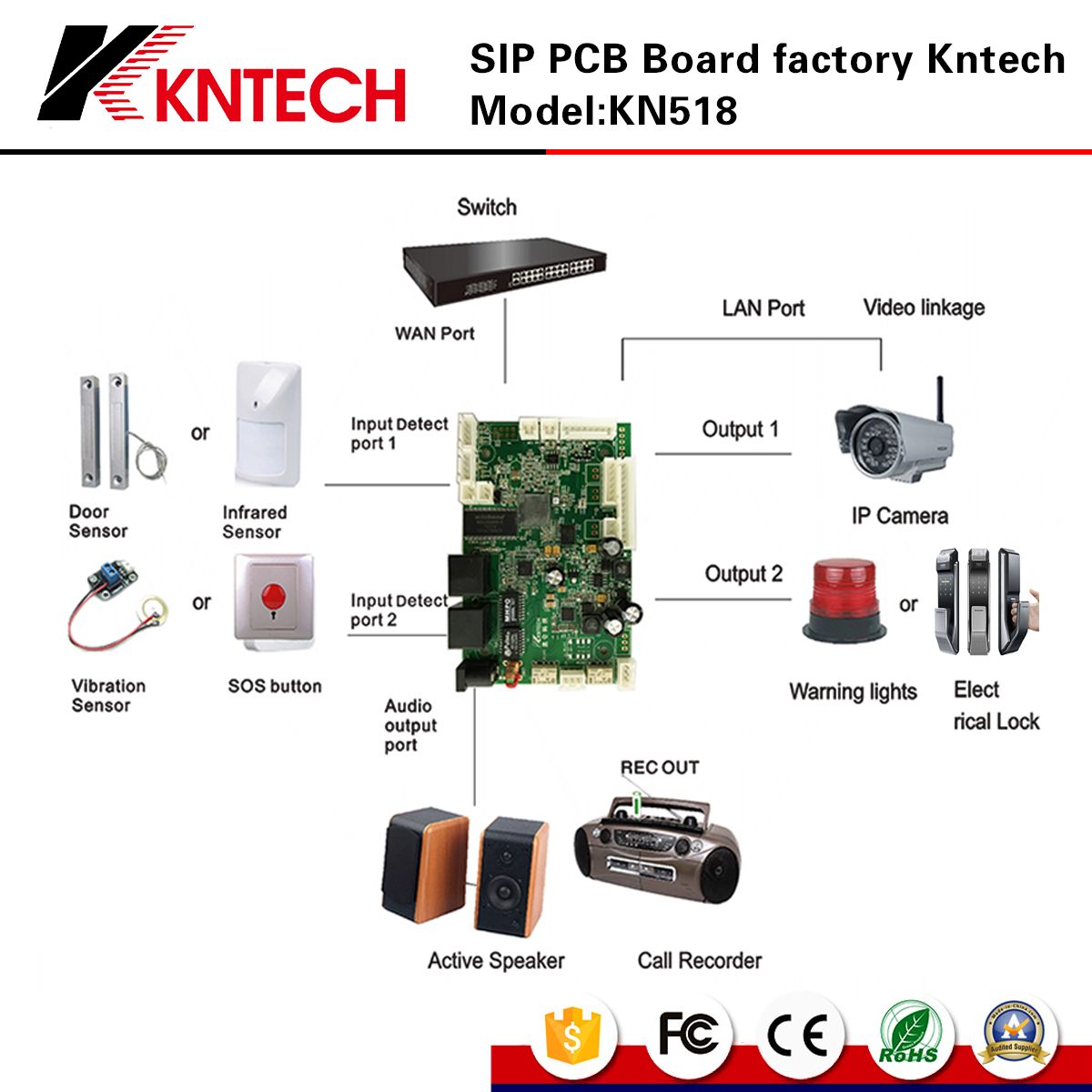

20+ I/O output and imput to for external Control like CCTV, DOOR, Signal linght...etc
With Camera optional
With TFT display and Camera optional
Webpage upto 50+ IP station direct call without Servier
Adjustable sound volume
IP address Sound reporting or LCD display
Door phone RFID card reader
Borad cast amplifier for paging option

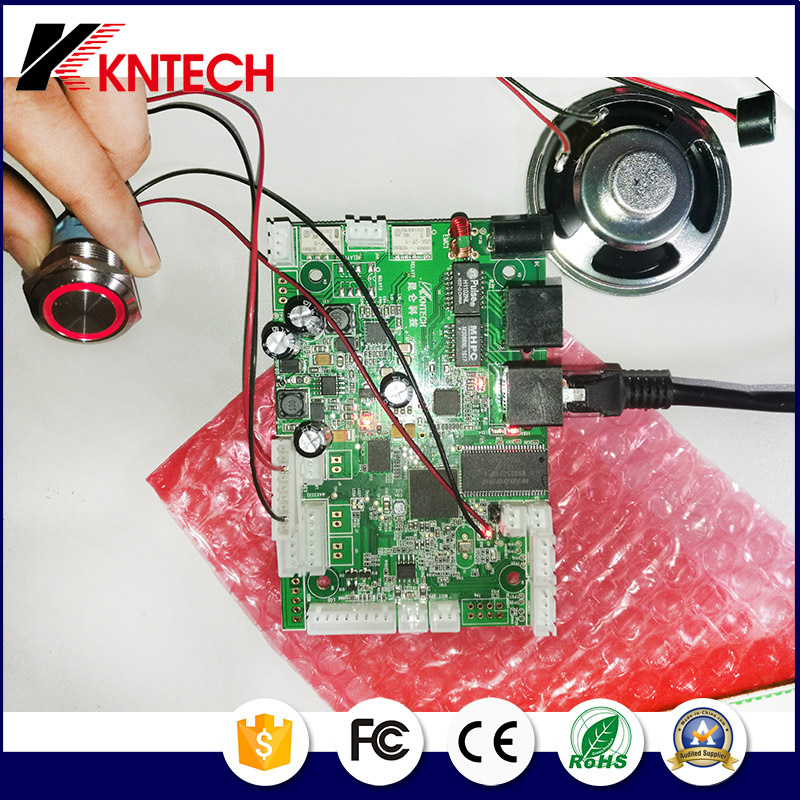

NEW KN518 PCB Board VoIP Analogue GSM and KNZD-60 from KNTECH Features
1. SIP 2.0 and IMS platform operators, the interconnection between mainstream manufacturers IP PBX.
2. High-end chips: the embedded DSGP chip, stable and reliable.
3. Call flexible: support hands-free, handset, headset operating mode.
4. Voice interface: hands-free, handset, headset, audio interfaces and an external amplifier interface.
5. Power supply: DC5V-15V, compatible POE IP PBX power supply mode (POE 802.3af Classl 48V)
6. Alarm Interface: Built-in three-way input detecting short circuit, output short-circuit three-way.
7. Telecom-level voice: support full-duplex speakerphone, providing Telecom level voice quality.
8. On board Amplifier: Built-in 2.5W / 4Ω digital amplifier, drive loudspeakers directly.
9. Remote adjust volume: support the console remote to adjust the volume.
10. Multiple key options: support dial any telephone number, the numeric keypad and function keys, speed dial keys, editing keys.
11. Status indicate: support registration, call status indication.
12. Multi-party call: supports three-way calling or multiparty call (multiparty conferencing).
13. MIC Mute: Support IPPBX broadcast voice call, local MIC automatically mute to avoid howling.
14. Warning lights drive: support indicator lights for coming calls and taking.
Model | KN519A-A | KN519A-B |
Construction | Industrial Grade PCB board | Industrial Grade PCB board |
Dimensions(W*H*D) | 106*67*15mm | 106*67*15mm |
Weight | 0.43lbs(0.2kg) | 0.43lbs(0.2kg) |
Operating Temperature | -40°F to +158°F/ -40ºC to +70ºC | -40°F to +158°F/ -40ºC to +70ºC |
Relative Humidity | Up to 95% non-condensing | Up to 95% non-condensing |
Protection | Water-proof, Dust-proof, Oxidation-proof | Water-proof, Dust-proof, Oxidation-proof |
Communication | Full duplex 2-way hands-free communication | Full duplex 2-way hands-free communication |
Call Control Signaling | SIP(RFC compliant), SIP Info(DTMF), RFC 2833(DTMF) | SIP(RFC compliant), SIP Info(DTMF), RFC 2833(DTMF) |
Audio Codes | G.711, G.722, G.729 | G.711, G.722, G.729 |
Camera | Image Sensor | OV9712 | OV9712 |
| | Total Pixels | 720P(1280*720)15fps | 240P 5fps |
| | Min. illumination | 0.1lux | 0.1lux |
| | Field of view | 150° horizontal Opposite angles 170° | 150°horizontal Opposite angles 170° |
| | Lens | 2.75mm | 2.75mm |
| | Framerate | 15fps, 30fps,MJPEG, H.264 | 5fps, MJPEG, H.264 |
| | Streamine | Dual-stream at different frame rate and bandwidth | Dual-stream at different frame rate and bandwidth |
| | ONVIF compliant | Yes | Yes |
Power | Power over Ethernet, IEEE802.3af, Class 0 Local power, 12VDc,Idle 2W, Max 10W | Power over Ethernet, IEEE802.3af, Class 0 Local power, 12VDc,Idle 2W, Max 10W |
Auxiliary Contacts | 1 Aux Output, dry contact Contact Ratings Load: Resistive load Rated load:0.3 A at 125 VAC; 1 A at 30 VDC Rated carry current:1A Max.switching voltage:125 VAC,60VDC Max.switching current:1A | 1 Aux Output, dry contact Contact Ratings Load: Resistive load Rated load:0.3 A at 125 VAC; 1 A at 30 VDC Rated carry current:1A Max.switching voltage:125 VAC,60VDC Max.switching current:1A |
Network | 10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better | 10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better |
IP Protocols | IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP | IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP |
LAN Protocols | Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004) | Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004) |
Programming | Non-volatile flash memory programming and configuration through Web GUI | Non-volatile flash memory programming and configuration through Web GUI |
Management and Operation | DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED | DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED |
Echo cancellation code | G.167/G.168 | G.167/G.168 |
RFID | / | / |
WIFI SPECIFICATION |
Memory | 64MByte DDR2 |
Flash | 4MByte |
Connection | 1 x Reset button(Reset & Factory Defaults) |
| | 2 x 10/100 |
| | 1 x Power DC Jack |
Data rate | 11b: 11M,5.5M,2M,1Mbps |
| | 11g: 54M,48M,36M,24M,18M,12M,9M,6Mbps |
| | 11n: 6.5M,13M,13.5M,19.5M,26M,27M,39M,40.5M,52M,54M |
| | 58.5M,65M,81M,108M,121.5M,135M,150Mbps |
Transmission mode | DSSS |
Standard | IEEE802.11n,IEEE802.11g,IEEE802.11b,IEEE802.3U |
Frequency domain | 2412-2472MHz |
Protocols | CSMA/CA,TCP/IP,DHCP,HTTP,TELNET,TFTP,ICMP |
power consumption | <5W |
Power supply | 12V/1A |
Variety Of Terminals for DIY Assembling

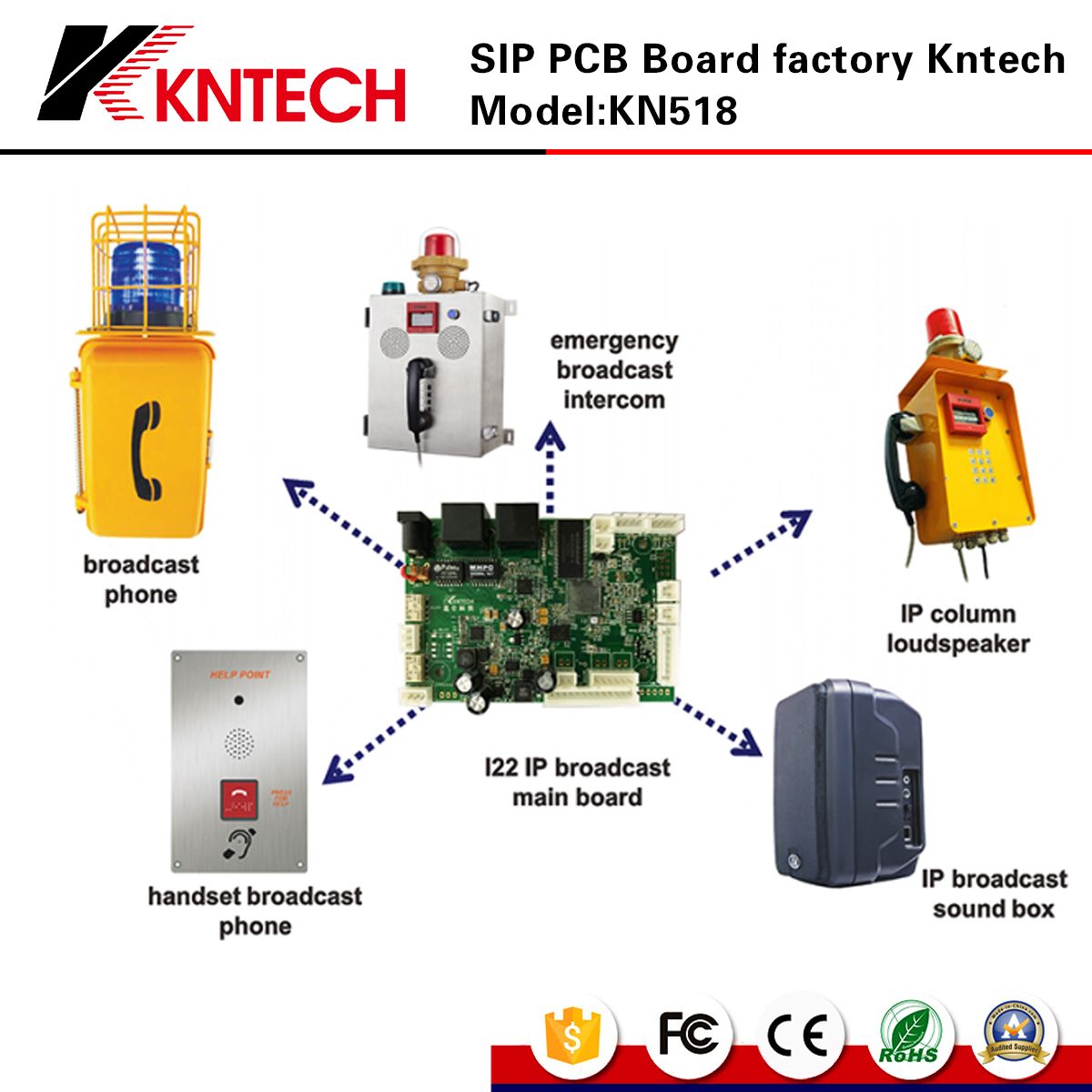

Outdoor & Indoor application. SOS telephone, Help point, handset emergency phone, hand-free emergency phone, help phone, outdoor emergency phone, call point, metal help phone, camera phone, public phone, loud speaking phone, bank service telephone, elevator phone, ...etc.
NEW KN518 PCB Board VoIP Analogue GSM and KNZD-60 from KNTECH Business Fields
Telecommunication device, VoIP speakers, emergency intercom, emergency telephone.
For public address, Industrial, onshore, shipyards, ship building, power plant, steel plant, airport, metro, bank, tunnel, ...etc. PCB surface glued protection: Water-proof, Dust-proof, Oxidation-proof.
