Knife Blade Fuse Link Nh2 (NT2) Steatite Material

Name: Knife Blade Fuse Link Nh2 (NT2) Steatite Material
Brand: all-electronics-online.com
SKU: 670351831
Availability: InStock
Rating: 5 (78 reviews)

Price:	US $ 0.89-3.9/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	NH2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Ceramic
Color:	White
Weight:	680g
Rated Voltage:	500V
Rated Current:	355A
Operation:	Electric Type
Installation:	Insert
Speed:	High-Speed Circuit Breaker
Structure:	Conventional Circuit Breaker
Arc-Extinguishing Medium:	Quartz Sand
Usaga:	Low Voltage
Breaking Capacity:	Low Voltage Circuit Breakers
Type:	Fuse

Product Description

NT Low Voltage Fuse and Base

Application
NT low voltage H. R. C. Fuse is light in weight, small in size, low in power, loss and high in breaking capacity. This product has been widely used in overload and short circuit protection of electric installations.
This product conforms to IEC 269 and VDE0636 standards with all of the rating at the world advanced level.

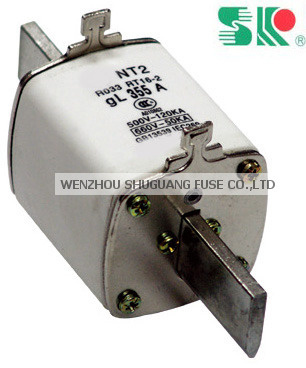

Knife blade fuse link NH2(NT2) steatite material:

NH2 gL/gG type:

Rated Voltage: 500V

Rated Current: 355A

Weight: 680g

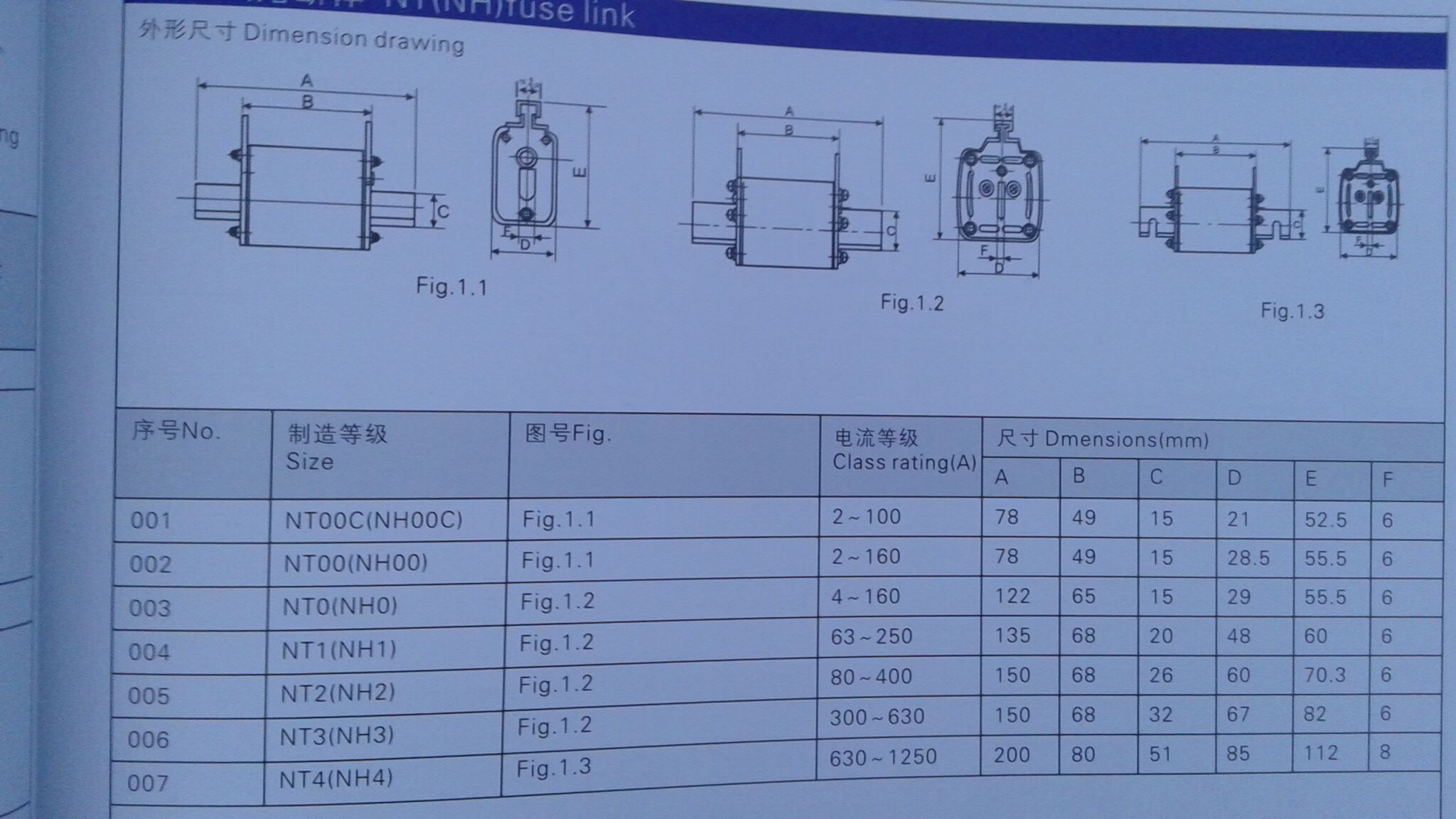

Size	Rated voltage (V)	Rated current (A)	Weight (g)
NH00C	AC500/690V DC 440V	2,4,6,10,16,20,25,32,35,40,50,63,80,100	145
NH00	AC500/690V DC 440V	2,4,6,10,16,20,25,32,40,50,63,80,100,125,160	180
NH0	AC500/690V DC 440V	4,6,10,16,20,25,32,40,50,63,80,100,125,160	250
NH1	AC500/690V DC 440V	63,80,100,125,160,200,224,250	460
NH2	AC500/690V DC 440V	80,100,125,160,200,224,250,300,315,355,400	680
NH3	AC500/690V DC 440V	300,315,355,400,425,500,630	900
NH4	AC500/690V DC 440V	630,800,1000,1250	2200

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
