Yueqing Langir Electric Co., Ltd. >> Ksd301 Ceramic Snap-Action Thermostat with Manual Reset Contact

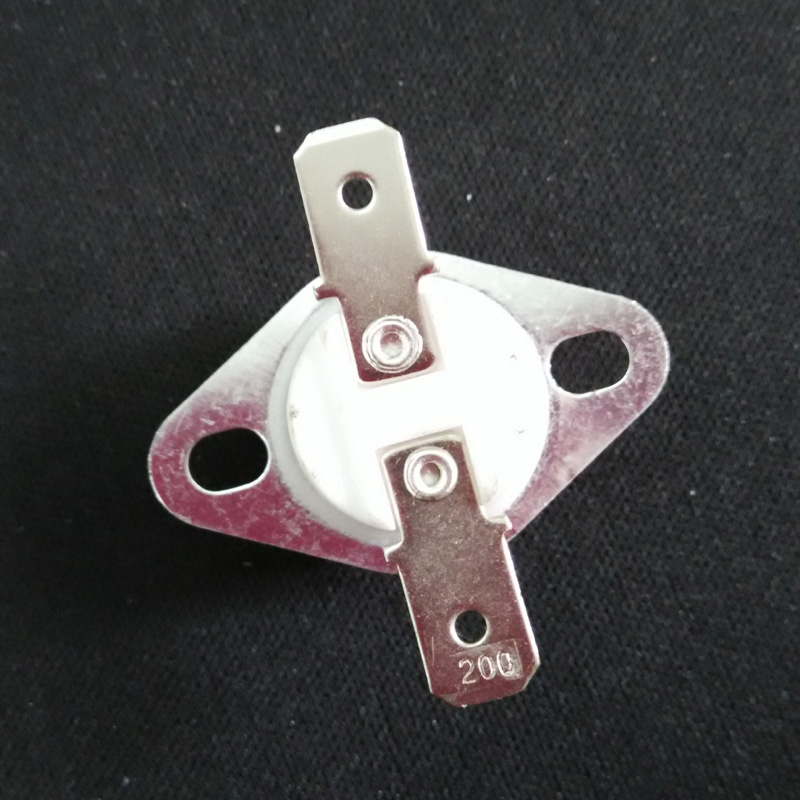

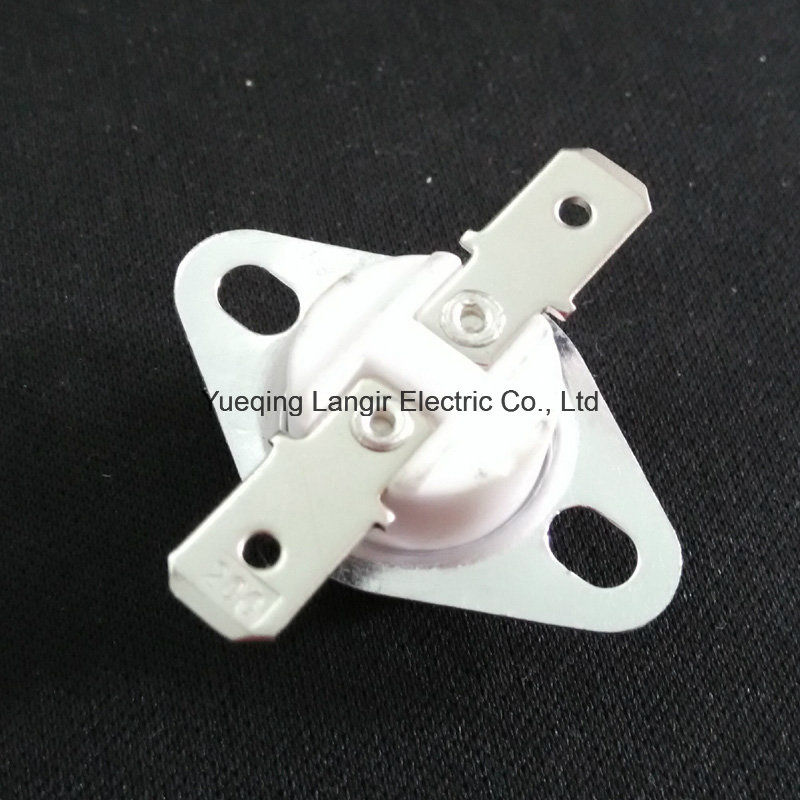

Ksd301 Ceramic Snap-Action Thermostat with Manual Reset Contact

Ksd301 Ceramic Snap-Action Thermostat with Manual Reset Contact
Price: US $ 0.4/Piece
Min Order: 200/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: KSD301M
Contact Type: Manual Reset
Type: Ksd301m
Material: Ceramic Material

Product Description

Specification

- Electrical Rating: 16A 125V AC(Resistive Load)
10A 250V AC(Resistive Load)
16A 250V AC(Resistive Load)

- Operating Temp: 50~175ºC (UL. CUL 205ºC)
- Differential: 10~30K (15K Standard)
- Temp. Tolerance: Operating Temp. ±3, ±5
- Heat Durability: 220ºC Max. (PPS)
- Circuit Resistance: 50mΩ Max.
- Insulation Resistance: 100MΩ Min. at DC500V
- Dielectric Strength: AC 1000V for 1m
- AC 1800V for 1s

- Operating Life: 100,000 Cycles (16A 125V/ 10A 250V AC)
- 10,000 Cycles (16A 250V AC)

- VDE, UL Applicable


Profile

LANGIR A professional design, manufacture of Anti Vandal Switches, Piezo switches, Capacitive switches, Piezo Keypads and DC circuits - Miniature circuit-breakers for DC and solar generation; The switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.

Established in 2009, Langir Company has developed very quickly in this field. With the powerful technology support and advanced production and inspection devices, Langir products have exported to many regions and many countries.

We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied within 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication.

Assets

Technical and industrial excellence:

1. Strong technical expertise: R&D departments, large number of design tools, technological

Monitoring…

2. In-house design and fabrication of tooling

3. Control of numerous technologies and all the production processes

4. Large production capacity: Automated processes

Quality of products and services:

1. The widest product offering on the switch market

2. Numerous approvals and certifications (RoHS, REACH, CE, CCC, CB and TUV … )

3. Continuity in the supply of all product ranges

4. Industrial autonomy

Engineering & Production

LANGIR vertical integration for customer service from raw material transformation - plastic powders, metal bands - to finished products, through the design and production of tooling, LANGIR controls all the production stages. LANGIR has a strong reputation for quality, confirmed by the ISO9001: 2008 certification. Our products are designed and produced in accordance with quality standards and environmental requirements.
