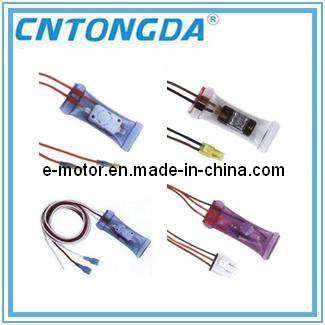

KSD301B Bi - Metal Defrost Thermostat

Prod Model:	KSD301B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Bimetallic thermostat, refrigerator defrost Thermostat is widely used in refrigerator, freezer, air-condition.
Various terminals are available

Refrigerator defrost

KSD301bimetal Thermostat with High Quality, Competitive Price!

Key parts produced by ourself for making sure the quality!

Used in water dispenser, water boiler, electric kettle, toaster oven, egg boiler, dishwasher, kettle, coffee pot, coffee maker, oven, water heater, rice cooker and etc

1.1/2" thermostat, disc thermostat, bimetal thermostat, thermal cutout, thermal cutoff, temperature switches, temperature protector, snap action thermostat

2. Auto reset with ceramic or plastic body
3. Electrical Ratings: AC250V /125V, 5A/10A/16A
4. Normally closed or normally open

5. Temperature feature
A) Rated Action Temperature: 0 ° C---210 ° C (Designed by user's requirements)
B) Open Tolerance: ± 2° C, ± 3 ° C, ± 4 ° C, ± 5° C
C) Open & Close Tolerance: 5 ° C -60 ° C
D) Close Tolerance: ± 2° C, ± 3 ° C, ± 4 ° C, ± 5° C, ± 10 ° C
6. Normal Electric Strength: Not Broken within 2000V / 1 minute, No flash.
7. Normal Isolated Resistance: >100M Ω

Features
Easy to install in small or narrow spaces due to slim shape
Small size with high contacting capacitance
Available waterproof and dust proof types with welded vinyl tubes
Any custom requriement on the caps, brackets or contacts are acceptable

Specification
Electrical Ratings: AC125V 15A 5A; AC250V 10A 5A 16A
ON/OFF Temperature: -30° C~80° C(-22° F~176° F)
ON/OFF Diff: Min 5° C; Standard 15~25° C
Tolerance: Min± 3° C; Standard± 5° C
