Product Description

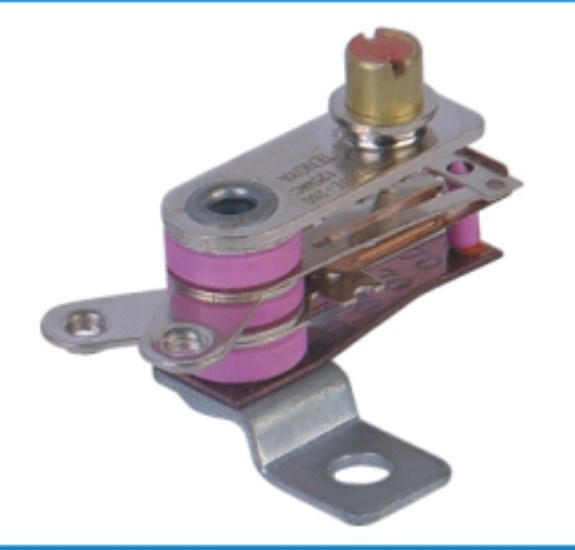

KST-801 Series Thermostat

Application:
Temperature control, thermostat for electric iron, toaster, frying pan, warm milk applicance, electric water heaters, electric oil lamps, electronic oven, electric heaters, electric pressure cookers, cookers and other appliances can be widely used.

Working principles, characteristics
Using a thermal bimetal as a temperature sensing element,when the temperature is raised to a certain value, the bending thermal bimetal through the plunger to push the contact pad, so as to make the contacts Momentary act. When the temperature drops, the thermal bimetalchip recovers. The contacts will instantly restore the original state so as to achieve the purpose of on-off circuit.
With stable performance, adjustable temperature, high precision temperature control, reliable action altogether and high reliability, long life, less radio interference.

Technical parameters
1. Electrical performance:10A/AC250V16A/AC 250V 20A/AC125V
2. Temperature Range:60 ºC—260°C
3. Ambient temperature :T250°C
4.Wiring:
A. Plug terminal : 250#187#(0.8mm thick and bend : 30°,45°,90°is available)
B. Terminal Blocks :M4,M3
5.Product's lifespan:5000 cycle times
6. Thermostat axis rotation angle: 150°,180°,210°,250°,270°,300°,310°
7. Electrical strength: AC2000V/0.5mA/min
8. Insulation Resistance: >100MΩ
9.Contact resistance : ≤50MΩ
10. Grounding method:Mounting plate or install oranges electrical enclosure parts connected by thermostat
