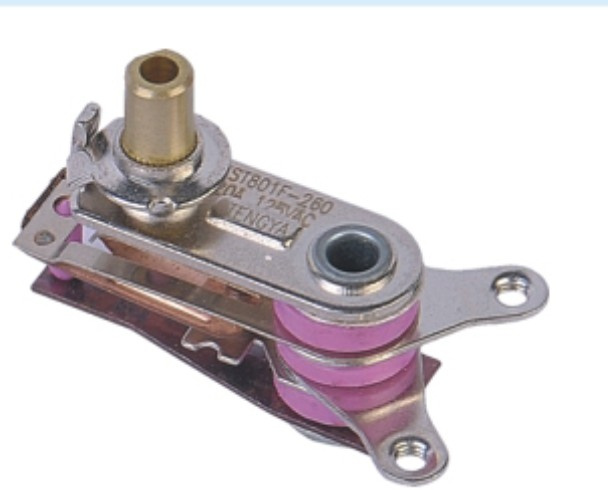

Kst-801 Series Thermostat Temperature Control (Kst-801F)

Name: Kst-801 Series Thermostat Temperature Control (Kst-801F)
Brand: all-electronics-online.com
SKU: 727164115
Availability: InStock
Rating: 4.4 (44 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	KST-801F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Range:	60 Degree to 260 Degree
Product Lifespan:	More Than 5000 Cycle Times
Usage:	Air Purifier
Certification:	TUV
Control Type:	Mechanical
Type:	Temperature Controller
Material:	Stainless Steel
Display Type:	Non

Product Description

KST-801 Series Thermostat

Application:
Temperature control, thermostat for electric iron, toaster, frying pan, warm milk applicance, electric water heaters, electric oil lamps, electronic oven, electric heaters, electric pressure cookers, cookers and other appliances can be widely used.

Working principles, characteristics
Using a thermal bimetal as a temperature sensing element,when the temperature is raised to a certain value, the bending thermal bimetal through the plunger to push the contact pad, so as to make the contacts Momentary act. When the temperature drops, the thermal bimetalchip recovers. The contacts will instantly restore the original state so as to achieve the purpose of on-off circuit.
With stable performance, adjustable temperature, high precision temperature control, reliable action altogether and high reliability, long life, less radio interference.

Technical parameters

Electrical Performance	10A/AC250V, 16A/AC 250V 20A/AC125V
Temperature Range	60 ºC-260°C
Ambient Temperature	T250°C
Wiring	A. Plug terminal : 250#187#(0.8mm thick and bend : 30°,45°,90°is available) B. Terminal Blocks :M4,M3
Product Lifespan	5000 cycle times
Thermostat Axis Rotation Angle	150°,180°,210°,250°,270°,300°,310°
Electrical Strength	AC2000V/0.5mA/min
Insulation Resistance	>100MΩ
Contact Resistance	≤50MΩ
Grounding Method	Mounting plate or install oranges electrical enclosure parts connected by thermostat
