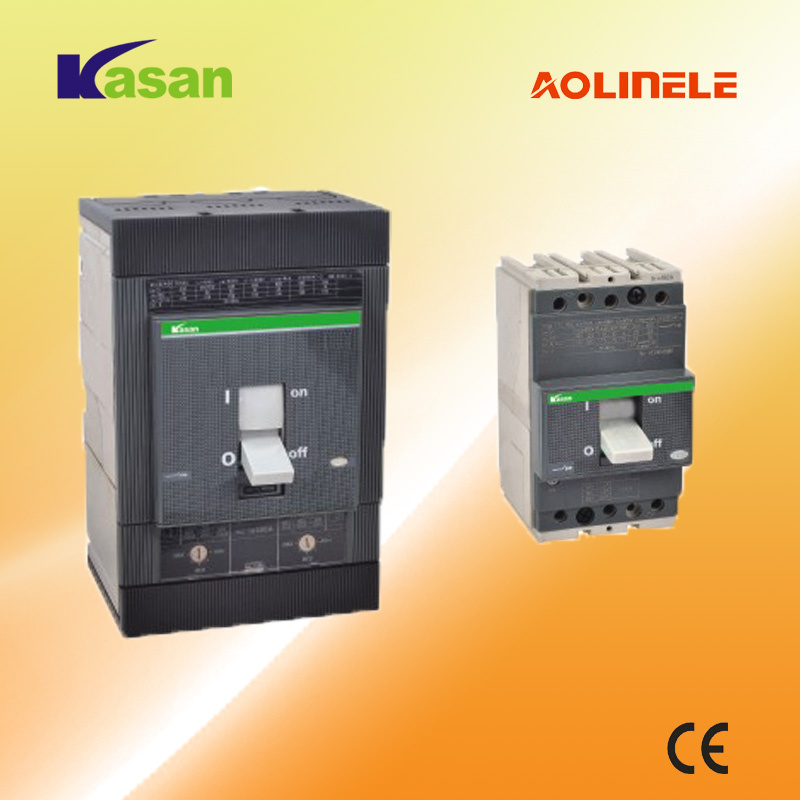

Ktmax Moulded Case Circuit Breaker (MCCB)

Name: Ktmax Moulded Case Circuit Breaker (MCCB)
Brand: all-electronics-online.com
SKU: 689983882
Availability: InStock
Rating: 4.5 (132 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TMAX
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pole Number:	1.2.3.4.P
Tyoe.:	Moulded Case
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	CE

Product Description

TMAX Series Moulded Case Circuit Breaker

Application:

Ac50/60Hz

TMAX-160
TMAX-250

TMAX-400

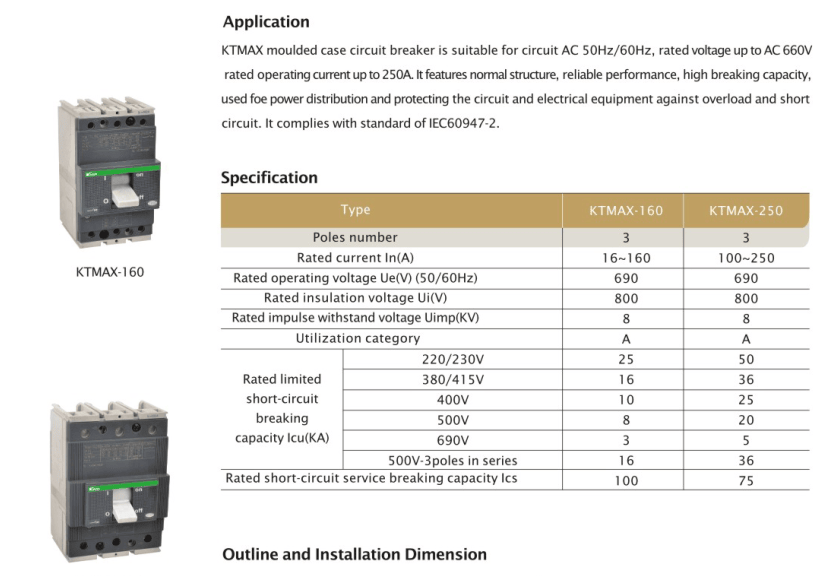

TMAX moulded Case Circuit Breaker is suitable for circuit AC 50/60Hz,rated voltage up to AC 660V rated operating current up to 250A.It features normal structure,reliable performance,high breaking capacity,used for power distribution and protecting the circuit and electrical equipment against overload and short circuit.It complies with standard of IEC60947-2

Yueqing Kasan Electric Co., Ltd. is a Subordinate of Kasan Electrical Group Co., Limited, Which Is Wholly Invested by Kasan Group, Is One of The Best Manufacturer and Exporter Companies in Liushi, Wenzhou. China, We Have a Specializing in The Export of Various Low Voltage Electrical Products with Over 50 Series and More Than 6000 Specifications. Such as Mini Circuit Breakers, Earth Leakage Circuit Breakers, Mouled Case Circuit Breakers, AC Contactor, Magnatic Starter, Distribution Box, Fuse, Switch, Industrial Plug & Socket and So on. They Are Sold with Fashionable Designed, Favorable Price and Competing Well in The World Market. It Is in Accordance with ISO 9000 Internation Quality System. All Products Have Certificate of Conformity for Electrical Equipment From Government and Have Won The Safety Approvals of CE Standard.

in Near, Our Company Continued Adopts International Advanced Technolog and Updating Our Products, Have Owned Advanced Equipment of Production, Inspection and Experiment, Powerful Technical Force and The Network System of Sales, Services All Over The World. We Adhere to The Guide of Market and The Principle of Living on Quality, Developing on Credit.

We Wish to Make Friends with All Over The World to Expand Our Products Market.
