Kto011 High Quality of Stego Temperature Controller, Compa Thermostat Kto 011

Name: Kto011 High Quality of Stego Temperature Controller, Compa Thermostat Kto 011
Brand: all-electronics-online.com
SKU: 748769615
Availability: InStock
Rating: 4.9 (124 reviews)

Price:	US $ 2.38/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	KTO011
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sensor Element:	Thermostatic Bimetal
Contact Type:	Snap-Action Contact
Service Life:	Over 100000 Cycles
Certification:	CE
Control Type:	Mechanical
Usage:	Industry
Type:	Heating
Material:	Plastic
Operating Principle:	Temperature Controller
Brand:	Langir

Product Description

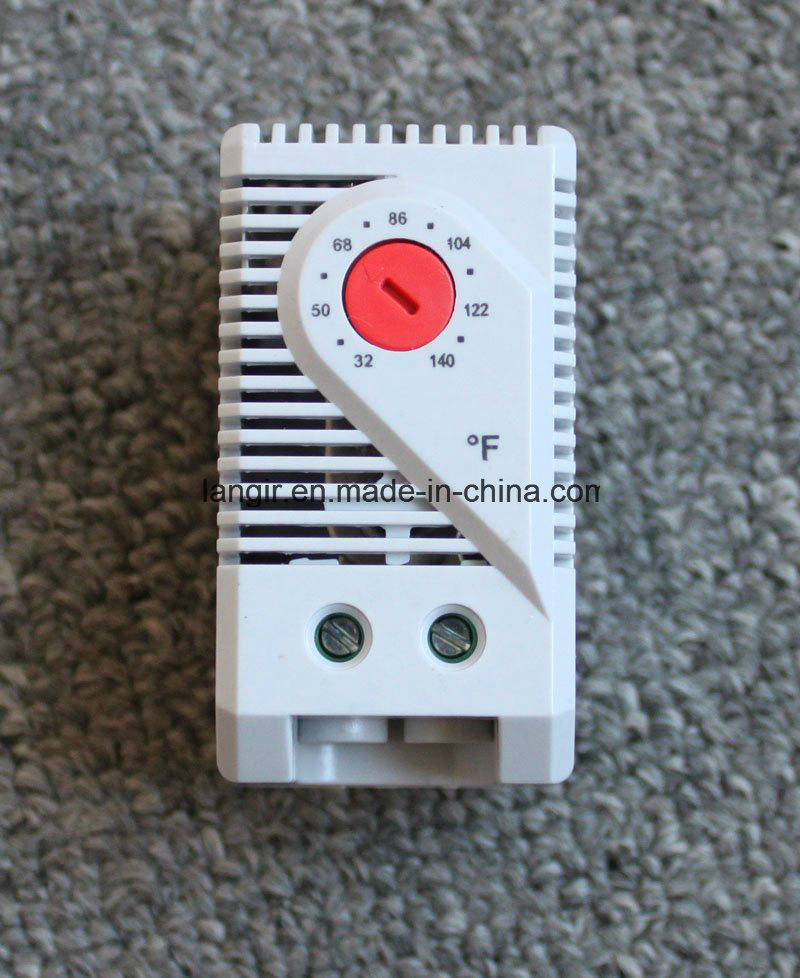

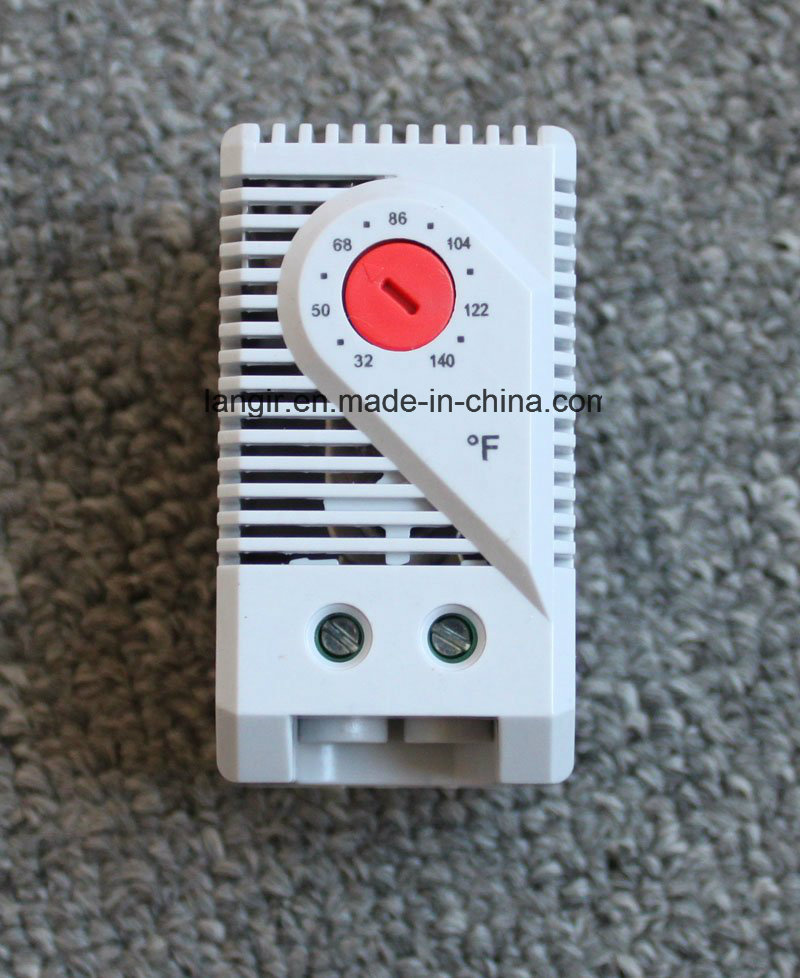

Stego thermostat KT 011Compact design
Wide adjustment range
Available with ° F or ° C scale
Color coded temperature dials
DIN rail mountable
KTO 011: Thermostat NC (normally closed): Thermostat opens at temperature rise. Comes with a temperature dial.

Setting rangeArt. No. Contact Breaker (NC)Art. No. Contact Maker (NO)Approvals
0 to +60° C01140.0-0001141.0-00VDE
-10 to +50° C01142.0-0001143.0-00VDE + UL File No. E164102
+20 to +80° C01159.0-0001158.0-00VDE + UL File No. E164102
+32 to +140° F01140.9-0001141.9-00VDE + UL File No. E164102
+14 to +122° F01142.9-0001143.9-00VDE + UL File No. E164102
0 to +60° C01146.9-0001147.9-00VDE + UL File No. E164102

Packing: 10ps/box

NOTE: WHEN YOU ORDER, PLS KINDLY INDICATE TEMPERATURE ARRANGE OR SPECIFICATION ART. NO.

Switch temperature difference	7K (± 4K tolerance)
Sensor element	thermostatic bimetal
Contact type	snap-action contact
Contact resistance	< 10mOhm
Service life	> 100 000 cycles
Max. switching capacity	250VAC, 10 (2) A
	120VAC, 15 (2) A
	DC 30W
EMC	acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connection	2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm?2;, stranded wire (with wire end ferrule) 1.5mm?2;
Mounting	clip for 35mm DIN rail, EN50022 (or for exit filter EF 118 Series)
Casing	plastic according to UL94 V-0, light grey

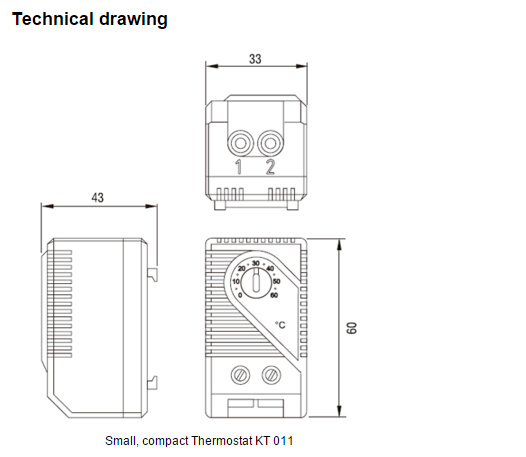

Dimensions	60 x 33 x 43mm
Weight	approx. 40g
Fitting position	variable
Operating/Storage temperature	-20 to +80°C (-4 to +176°F) / -45 to +80°C (-49 to +176°F)
Protection type	IP20
