| Prod Model: |
LK-OHCB001 |
| Application: |
Network |
| Material: |
Copper |
| Shape: |
Round |
| Computer Cable Type: |
Data Line |
| Printer Cable Type: |
USB |
| Interface Type: |
Many Kinds |
| Pin: |
Many Kinds |
| Color: |
Many Colors |
Product Description
LK-OHCB001

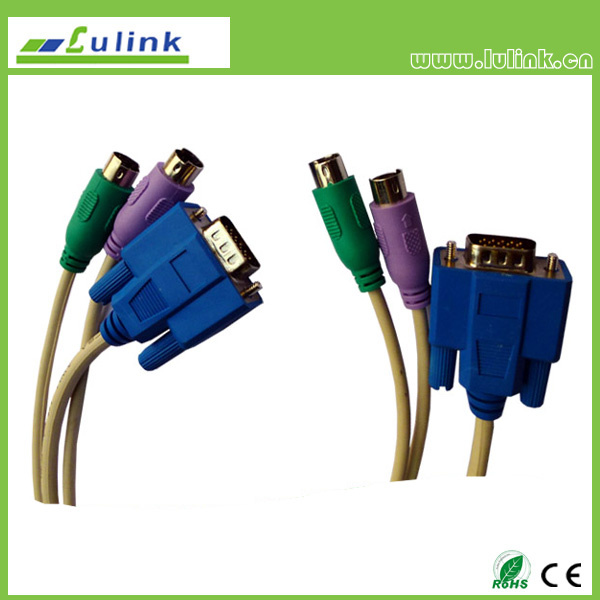

KVM CABLE
Specifications:
Kvm switch cable
Keyboard, monitor and mouse in one
Connector: Gold or Nickle plated
Conductor: Copper
Cable Specification: 28AWG*3+6C+AEB OD=3.6MM*2F/5.0MM
Color: white ,gray or begie
Length: 1.8m on request
Funtion: The cable features Keyboard, monitor, and mouse combined into one cable split apart at each end, it cleanly connects your KVM to your computer, apply to the Keyboard and mouse with PS/2 terminal.
Features: Without the in herent clutter and mess you have with ordinary individual cables.
Electrical:
Quality Control: 100% Open& Short Test, passed four tests;
Voltage: DC300V 5M ohm/10ms;
Insulation Resistance: 10MΩ min
Contact Resistance: 2 ohm max
Working Temperature: -25C-80C
LK-OHCB002
Male to female, 60PIN Cable
Connector: Nickle plated
Conductor: Copper
Color: Black
PE inner mold, PVC injection molding the outer mold
Length: 2M
LK-OHCB003
RJ45 TO RJ45 FEMALE CABLE
Connector: 8P8C Ni-Shell JACK TO JACK PIN=G/F
Conductor: Copper
Cable Specification:UL2725 26AWG(7/0.16BC PP ID:0.95)*2P+
26AWG(7/0.16BC PP ID:0.95)*2C+AL+1+B(16*3/0.12AM) OD=4.8mm
Two Pairs: Orange + Orange/White
Orange + Orange/White
Green + Green/White
Two Single Cores: Brown and Blue
Color:Black
L=0.6M
LK-OHCB004
RJ45 TO KEYSTONE CABLE
Keystone Jack Cat 6 patch to Cable with RJ45 connector on the other end
Connector: 8P8C FTP RJ45 Plug and 8P8C FTP Cat6 Keystone
PIN: 3u"
Conductor: Copper
Color: White
Cable Specification :CAT6 Lan cable, FTP, 23AWG, 4Pairs
LK-OHCB005
USB-TTL serial converter cable
Conductor: Copper
Color: White or Begie
USB AM TO TTL cable
FT232RQ chip,
8-way 0.1" pitch header socket, access to(GND-5v-Tx-Rx-3v-DTR-RTS-CTS).
As per our new designed PCB board with Original IC chip
Cable Specification; 28 AWG+24 AAWG 64Braid
Length:1.83 meter (6-foot)
LK-OHCB006

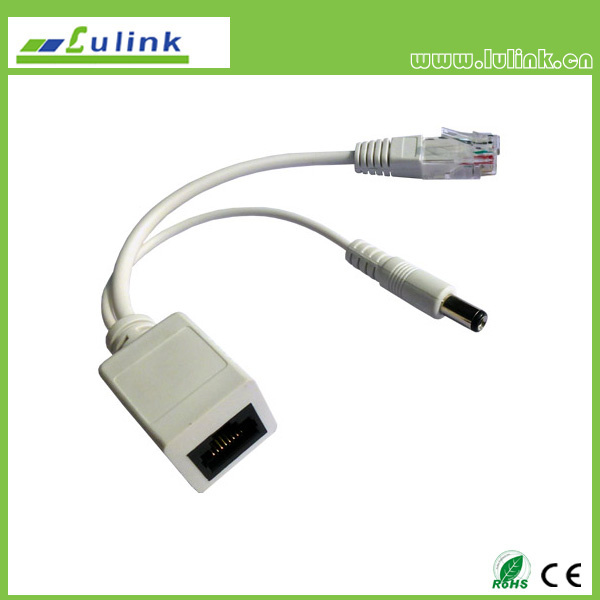

RJ45 M TO RJ45 FEMALE AND DC5.5 M CABLE
Conductor: Copper
Color: White or Begie
LK-OHCB007
RJ45 M TO RJ45 FEMALE AND DC5.5 FEMALE CABLE
LK-OHCB008

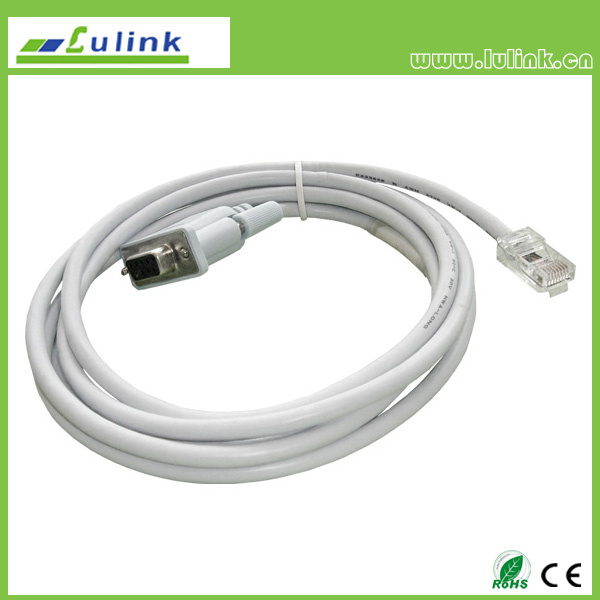

RJ45 M TO DB9 M cable
Conductor: Copper
Color: White or Begie
Cable Specification:28AWG*3C
OD:4.0mm
LK-OHCB009

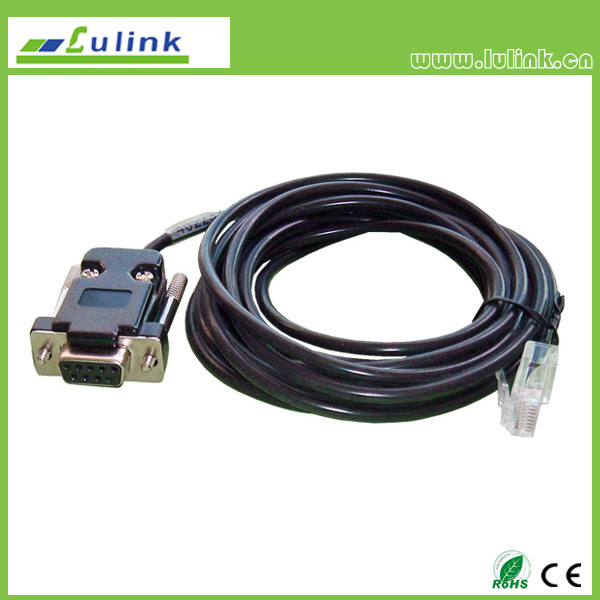

RJ45 M TO DB9 Female cable
Conductor: Copper
Color: White or Black
Cable Specification:28AWG*3C
OD:4.0mm
LK-OHCB010

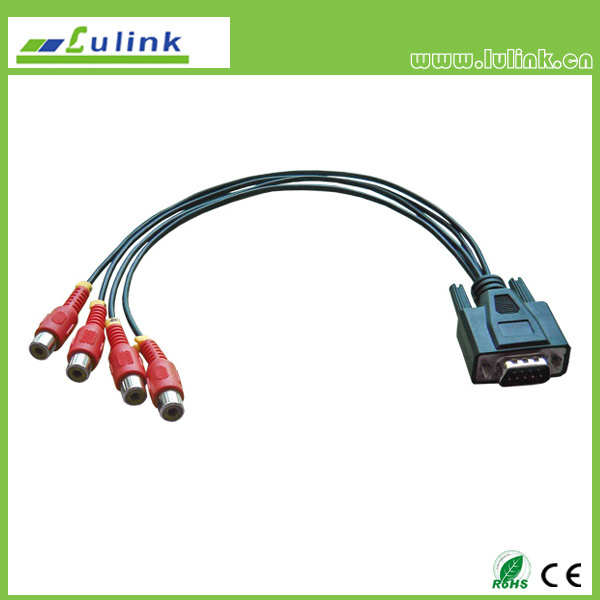

DB9 M TO 4RCA Female cable
Conductor: Copper
Color: White or Black
Cable Specification: (10/0.10BC+10/0.10BC)*4F,
OD:3.0mm
LK-OHCB011

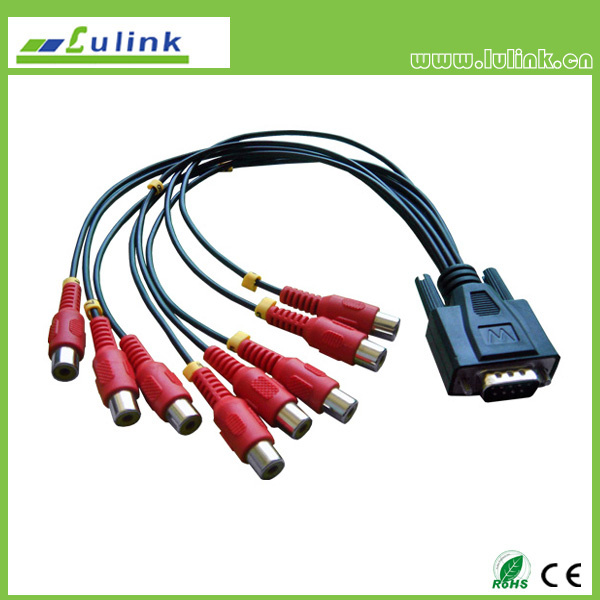

DB9 M TO 8RCA F CABLE
(10/0.10BC+10/0.10BC)*8F,
OD:3.0mm
Package: Polybag , PE bag
