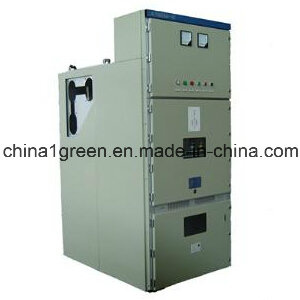

Kyn28A-12 Indoor Metal-Clad Switchgear

Name: Kyn28A-12 Indoor Metal-Clad Switchgear
Brand: all-electronics-online.com
SKU: 749576345
Availability: InStock
Rating: 4.8 (82 reviews)

Price:	US $ 1000/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	KYN28A-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	12kv
Rated Frequency:	50Hz
Lightning Impulse Withstand Voltage:	75kv
Protection Level:	IP 4X
Type:	Power
Form:	All- packaged Type
Operation Voltage:	Low Voltage
Size:	3 Uint
Application Range:	Power Plants
Shell Protection Grade:	IP30

Product Description

KYN28A-12 Indoor Metal-clad Mid-mounted Switchgear

KYN281A-12 Indoor Metal-clad Mid-mounted Switchgear is a 3-10KV three phase AC 50Hz complete distribution device of single busbar and its sectional system.It is mainly used to control,protect,and supervise circuits for the power supply of plant,medium or small generator,disteibution of factory and mining,as well as power acceptance and transmission from the secondary substation in the power system,starting of large HV electromotor and so on.The product can meet IEC298,GB3906 standards.It has the functions to prevent from moving the hadcart of circuit breaker alive,opening and closing circuit breaker by mistakes,or doing it while the earthing switch is at closing position,entering the alive chamber,as well as the closing interlock of earthing switch by mistakes while it is alive.The product can be used together with VS1,VD4,VB2,3AH5,10-VPR vacuum circuit breaker.It is a superior power distribution unit for performance.

Parameters:

Item		Unit	Parameters
Rated Voltage(Highest Service Voltage)		kV	12
Rated Insulation Level	1min Power frequency withstand voltage	kV	42
	Lightning impulse withstand voltage	kV	75
Rated Frequency		Hz	50
Rated Main Busbar Current		A	630,1250,1600,2000,2500,3150
Rated Branch Busbar Current		A	630,1250,1600,2000,2500,3150
4s Thermal Stability Current(r.m.s)		kA	16,20,25,31.5,40,50
Rated Dynamic Current(Peak)		kA	40,50,63,80,100,125
Protection level		Enclosure IP 4X
