Ggd-3 Series Stationary Type Low Pressure Complete Switchgear

Name: Ggd-3 Series Stationary Type Low Pressure Complete Switchgear
Brand: all-electronics-online.com
SKU: 749564175
Availability: InStock
Rating: 5 (27 reviews)

Price:	US $ 1000/Piece
Trade Terms:	FOB,CIF,FCA
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GGD-3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	Low-Voltage
Rated Frequency:	50Hz
Working Voltage:	380V
Operating Current:	3150A
Type:	Power
Form:	All- packaged Type
Operation Voltage:	Low Voltage
Size:	3 Uint
Application Range:	Power Plants
Shell Protection Grade:	IP30

Product Description

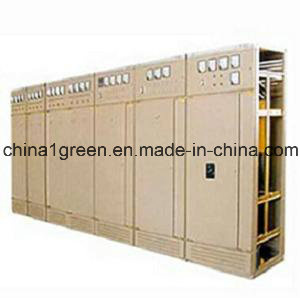

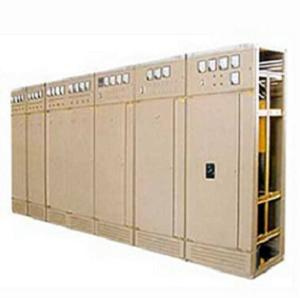

GGD-3 series stationary type low pressure complete switchgear

The series stationary type low pressure complete set switchgear is suitable for normal frequency 50HZ,fixed working voltage 380V.The fixed operating current to the 3150A three-phase AC electrical power distibutiom system, accepts, the assignment and control as the electrical energy.But widelu uses in user's in and so on power plant,transformer substation.Factory and mining enterprise low pressure electrical power distribution systems.

This product's performance confoms to following standard:

IEC60439-1-1992

GB7251.1-1997

JB/T5877-1991

Normal use environmental condition

1.The surrounding air temperature is not higher than+40ºC,is not lower than -5ºC.24 hour in averange temperature do not be higher than +35ºC
2.The indoors install the use,the place of use altitude above sea level do not supass 2000m.
3.Surrounding air relative humiditywhen maximum temperature for +40 ºC does not surpass 50%,when low temperature the permission has the great relative humidity(e.g +20ºC when is 90%)
4.Not remarkable shaking and the impact vibration's situation,vertical installs the gradient not to be bigger than 5 degrees.
5.The air is clean,non-corrosivoness and the impact vibration's situation.does not have the electric conduction and can destroy the insulation dust.
6.The user has when the special request may with the factory negotiated settlement.

Major Technique Parameter

Item	Unit	Parameter
Fixed isolation voltage	V	660
Fixed working voltage	V	380
Auxiliary circuit fixed working voltage	V	AC380V or AC 220V
Horizontal bus bar nominal current	A	3150
Fixed short-time value endures the electric current	KA	50
The fixed peak value endures the electric current	KA	105
Outer covering protections rank	IP30
