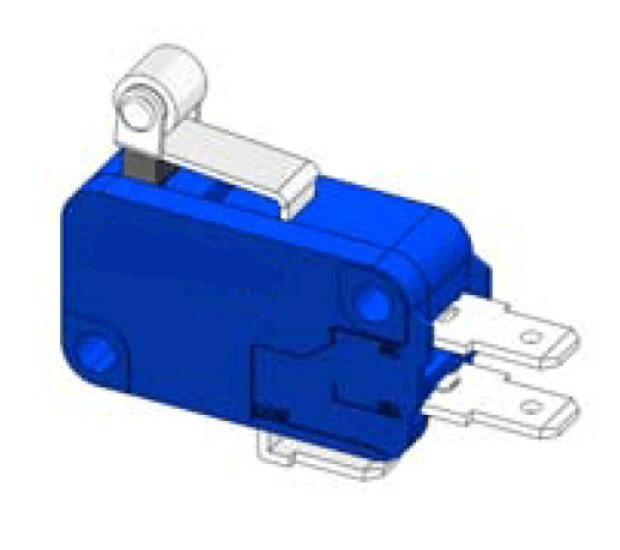

Blue Lxw16 Micro Switch

Name: Blue Lxw16 Micro Switch
Brand: all-electronics-online.com
SKU: 751026805
Availability: InStock
Rating: 5 (149 reviews)

Price:	US $ 8/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LXW16 Series
Markets:	South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Of(N):	Less Than or Equal to 3.5
RF(N):	Greater Than or Equal to 0.5
PT(mm):	Less Than or Equal to 1.7
Md(mm):	Less Than or Equal to 0.5
Pressing Type:	Push-Button
Protection:	Explosion-Proof
Size:	Small-Sized
Environment:	≧250℃﹤400℃
Breaking Form:	Duplex Type
Application:	Power Plant

Product Description

LXW16 Series Limit Switch

Technical Specification

Utilization Category	AC-12	DC-12	DC-12
Ui rated insulation voltage	AC 380V
Ith conventional thermal current	16A
Ue rated working voltage	AC 250V	DC 250V	DC 250V
Ie rated working current	16A	0.3A	5A
Contact resistance	≤30mΩ
Powerfrequencywithstand voltage	between current-carrying components ans surface easy to touch		AC1890V±3% 45-65Hz 5S
Powerfrequencywithstand voltage	Between current-carrying metal parts and the ground		AC1890V±3% 45-65Hz 5S
Mechanical life	1,000,000 times operations
Electrical life	100,000 times operations

Precautions for correct use

1.Mounting:Use M3 mounting screws with plane washers or spring washers.To securely mount the switch.Tightern the screw to a torque of 0.39 to 0.59 N·m.
2.Insulation distance:Minimum insulation layer thickness for this micro switch is 1.1mm.Minimum space distance is 1.9mm between terminal and mounting plate.Please use insulating shields or partition to keep safe insulating distance if it failed to secure insulating distance required.

Extansion product

For customer special requirements, switch combination is available.

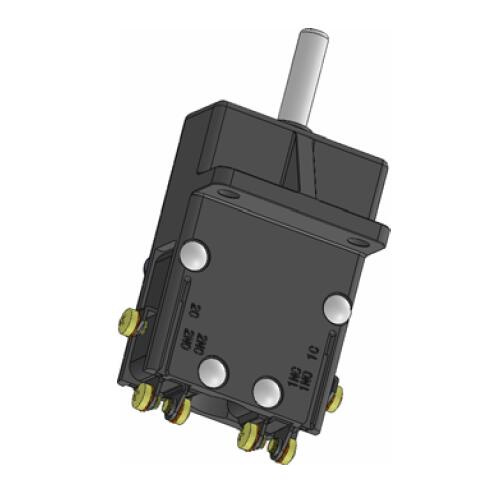

LXW16-2K2B
Characteristices:two micro switches,one actuator,which can achieve synchronous actions.connecting easily and reliable with M3 screw terminal.compact and easy to install.

LXW16 cable
Characteristics:insertion type self-locking terminal;variety of terminals spec to choose,please refer to "terminal types"wire length specification is 1m,length can be customized,standard length L+410mm.Terminal and sheath is optional for wire.
