Flf10 Auxiliary Switch

Name: Flf10 Auxiliary Switch
Brand: all-electronics-online.com
SKU: 751040015
Availability: InStock
Rating: 4.9 (42 reviews)

Price:	US $ 11-12/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	FLF10 Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Contact Forms:	6.8*0.8 Quick Connect Terminals
Approved Standards 1:	AC-12 380V 10A
Approved Standards 2:	DC-12 250V 6A

Product Description

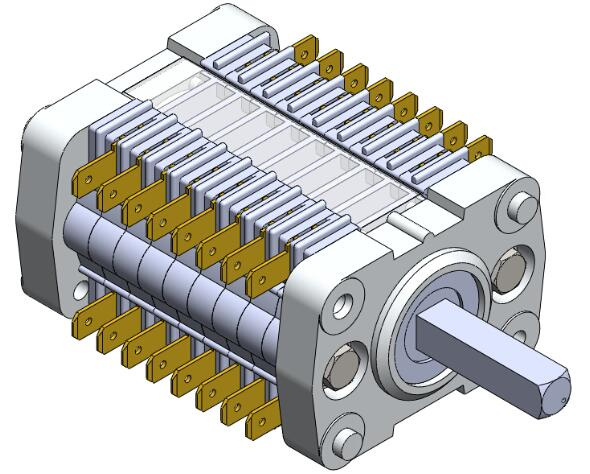

FLF10 Auxiliary Switch

FLF10 series auxiliary switch is a new localized product developed according to international advanced technology,as the components of HV switchgear in power industry.

Applicable to the control circuit or auxiliary circuit with AC 30V,DC 250,please see the below technical characteristic detail.

This product is widely used in the secondary circuit for controlling on/off of operation mechanism of HV switchgear,interlocking,signal and so on.Mainly used in ZN series vacuum switch,CT series spring operation mechanism and disconnecting switch etc.And also can be used as changeover or combination switch.

Instruction for code

FL:Company code
F:Characteristics code(F:auxiliary switch)
10:Design No
Basic spec code:the count of NC&NO contacts shown in numbers.

Technical Specification

Utilization Category	AC-12	DC-12
Ui rated insulation voltage	AC 380V
Ith Conventional thermal current	20A
Ue rated working voltage	AC 380V	DC 250V
Ie rated working current	10A	6A
Contact resistance	≤30mΩ
Power frequency withstand voltage	Between current-carrying components and surface easy to touch	AC1890V±3% 45-65Hz5s
	Between current-carrying metal parts and the ground	AC1890V±3% 45-65Hz5s
	Between switch element isolated from electric and current-carrying components	AC1890V±3% 45-65Hz5s
Mechanical life	500,000 times operations
Electrical life	30,000 times operations
Ambient operating temperature	-25ºC--+85ºC

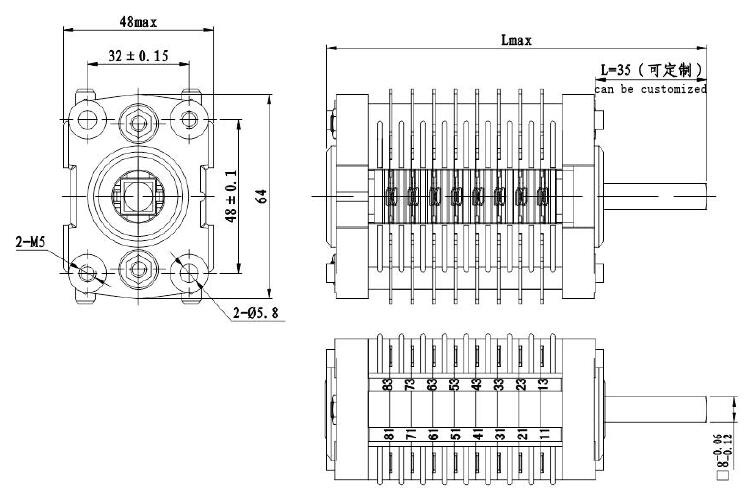

Dimensions and operating characteristics

Type	Lmax(mm)	Type	Lmax(mm)
FLF10-11	72	FLF10-99	128
FLF10-22	79	FLF10-1010	135
FLF10-33	86	FLF10-1111	142
FLF10-44	93	FLF10-1212	149
FLF10-55	100	FLF10-1313	156
FLF10-66	107	FLF10-1414	163
FLF10-77	114	FLF10-1515	170
FLF10-88	121	FLF10-1616	177

Note:Wiring symols can be made according to customer's requirement.

Variety of assembly modes and time delaying functions are acailable for this series switch.
Time delaying fuction and contact sequence can be made according to customer's requirment.
