Blue Lxw 24 Limit Switch

Name: Blue Lxw 24 Limit Switch
Brand: all-electronics-online.com
SKU: 775792215
Availability: InStock
Rating: 4.7 (74 reviews)

Price:	US $ 7.8-8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LXW 24 Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Of(N):	Less Than or Equal to 2.5
RF(N):	Greater Than or Equal to 0.5
PT(mm):	0.7-1.5
Op(mm):	14.3-15.1
Ot(mm):	Greater Than Pr Equal to 0.5
Pressing Type:	Lever Roller
Protection:	Explosion-Proof
Size:	Small-Sized
Environment:	﹤250℃
Breaking Capacity:	DC
Breaking Form:	Single Type
Application:	Power Plant

Product Description

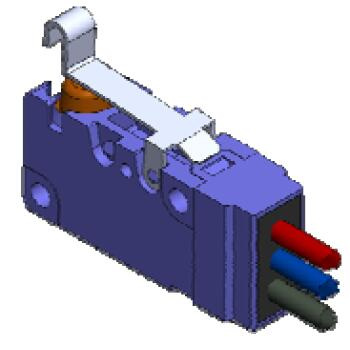

LXW 24 Series Limit Switch

Features & Application

1.Quick&Reliable action,high precision,Long life.
2.Different contact material like gold alloy,silver alloy or silver for different electrical load application.
3.Good cover protctive capability,connection mode is sheath cable,variety of wire spec for customer flexibly selection.
4.Variety of auxiliary actuating type to meet different occasions.
5.Applicable to the control circuit with AC 250V,DC 250V,used as parts for master electrical appliances or alternative appliances.

Code instruction

LX:Category code(LX:master limit switch)
W:Characteristic code(W:micro switch)
24:Design No
Basic spc code:11 with a group of changeover contacts.10 with a group of normally open contact.01 with a group of normally closed contact.

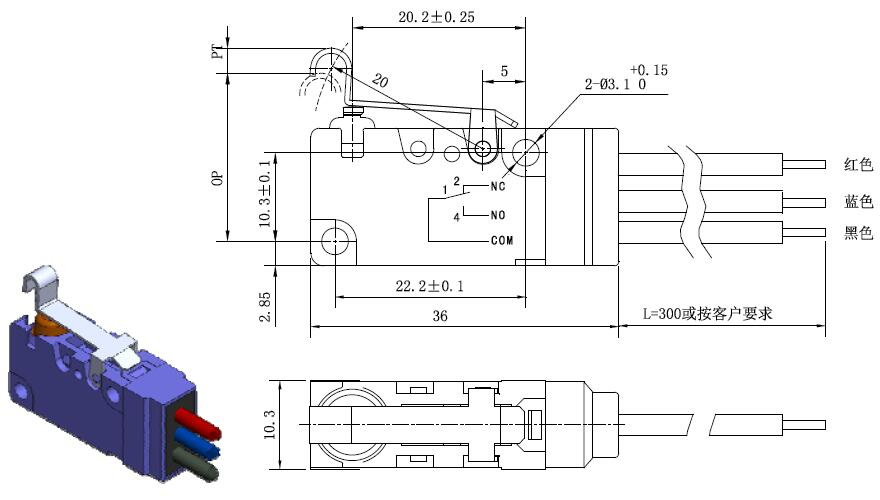

Derive spec code:(No symbol:plunger.A:straight lever B:short roller.C:long roller D:R-type lever,special spec can be customized)

Technical Specification

Utilization category	AC-12	DC-12
Ui rated insulation voltage	AC 250V
Ith conventional thermal current	15A
Ue rated working voltage	AC 250V	DC 250V
Ie rated working resistance	≤30mΩ(not including cable resistance)
Power frequency withstand voltage	between current-carrying components and surface easy to touch		AC1500V ±3% 45-65Hz 5S
	between current-carrying metal parts and the ground		AC1500V ±3% 45-65Hz 5S
mechnical life	300,000 times operations
electrical life	100,000 times operations
Ambient operating temperature	-25ºC---+85ºC
IP class	IP65
