| Prod Model: |
KYN28A-12(Z)(GZS1) |
| Standard: |
ISO9001:2008/IEC Standard |
| Room Design: |
H.V.Transformer and L.V.Room |
| Special Service: |
Customized |
| Reted Frequency: |
50Hz/60Hz |
Product Description

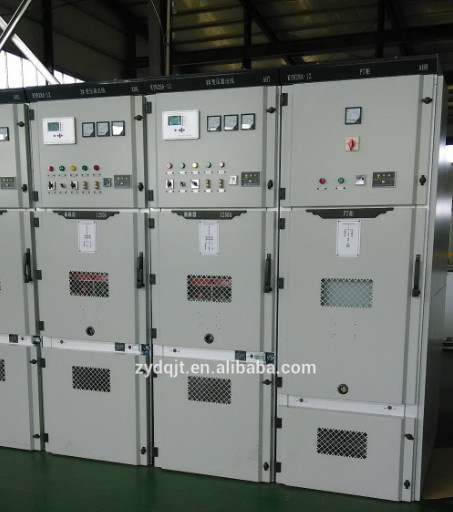

Manufacturer KYN28 indoor high voltage switchgear with circuit breaker
Product descriptionIndoor AC Metal Clad Intermediate Switchgear Cabinet
KYN28A-12 (GZS1-12) Model Indoor AC Metal Clad Intermediate Switchgear Cabinet. It is suitable for three-phase AC rated voltage 12KV, rated frequency 50Hz power system to receive and distribute the electrical energy and to control, protect and monitor the circuit.
Meet the standard: GB3906-97 3-35KV AC Metal-enclosed Switchgear, GB11022-89 High-voltage Switchgear General Technical Conditions, IEC298 (1990) AC Metal-enclosed Switchgear and Control Equipment With Rated Voltage Above 1kv and 50kv or Below , DL404-97 Order Technical Conditions for Indoor AC High Voltage Switchgear Cabinet.
Features:
1. Metal-enclosed and separately arranged, with high protection Category
2. Enclosure with Front -Cabinet protection and back-cabinet protection, the Board can be arranged and fixed along with the wall to save the spaces
3. Protection Category of enclosure reaches to IP4X,
4. Elec.Line Cabinet with full spaces for mount and arrange in-coming and out-going lines for the convenience of Fixing, protecting and maintaining
Item | Unit | Specification |
Rated Working Voltage | kV | 7.2,12 |
1Min Power Frequency Withstand Voltage | kV | 32, 42 |
Lightning Pressing Voltage (Whole-Band) | kV | 60, 75 |
Rated Frequency | Hz | 50 |
Main Busbar Rated Currenct | A | 630, 1250, 1600, 2000, 2500, 3150* |
Sub-Busbar Rated Currenct | A | 630, 1250, 1600, 2000, 2500, 3150* |
3S Thermal Stability Currenct (Effective Data) | kA | 16, 20, 25, 31.5, 40, 50 |
Rated Dynamic Stability Currenct (Peak Value) | kA | 40, 50, 63, 80, 100, 125 |
Protection Categoty | | Enclosure:IP4X, CB Compartment open: IP2X |
environmental requirementNormal Operation Conditions
1. Altitude 1000m
2. Ambient temperature: -10°C ~ +40°C (temperature can be as low as -25°C during transportation and storage)
3. Relative humidity: daily relative humidity 95% on average; monthly relative humidity 90% on average
4. Seismic scale of earthquake 8
5. The switchgear is applicable to category II contaminated environment.
Special Operation Conditions
If the switchgear will be used in conditions that exceed the normal environmental conditions, users shall
negotiate with the manufacturer.
Our Company

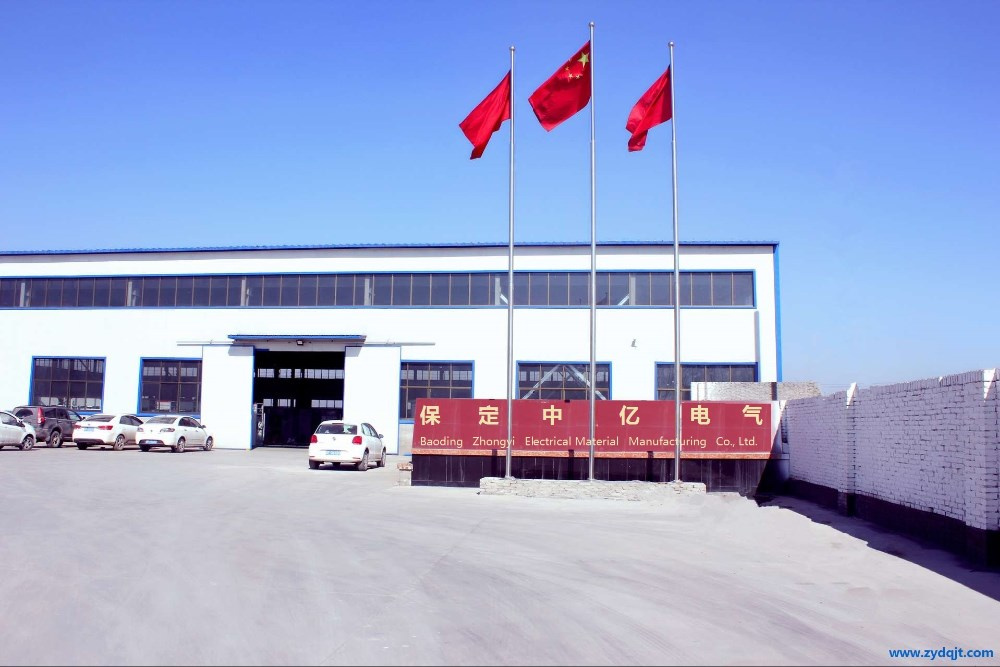

Baoding Zhongyi Electrical material Manufacturing Co., Ltd. is located in Baoding City,Hebei Province,China. with an advantageous geographical location and convenient transportation. Our company covers an area of 30,000 square meters, the building area of 16,000 square meters. The registered capital of the company is RMB 81,000,000.
The company mainly produces:
oil-immersed power transformers,
dry-type transformers,
box-type substation,
high and low voltage switchgear assembly
and a variety of special-type transformers.
Packaging and shipping:
Packing:
1. Wrapped with plastic film.
2. Fixed in a wooden case.
3. Wooden case on a pallet.
4. Iron shelf
5. Special packaging: According to customer's requirement
Delivery Details : 10-20 days according to order quantities

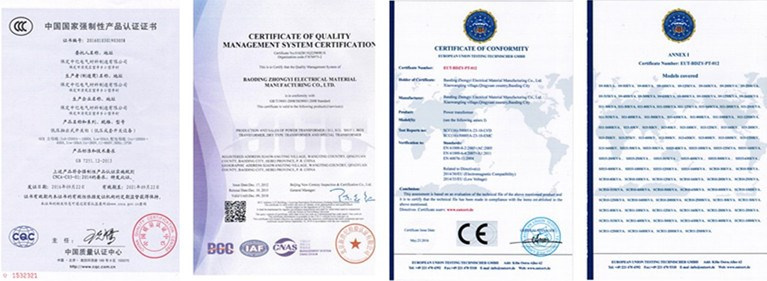

Certifications
