Yueqing Langir Electric Co., Ltd. >> L19A Latching Anti Vandal Push Button Switch L19 (19mm) Made of Stainless Steel

L19A Latching Anti Vandal Push Button Switch L19 (19mm) Made of Stainless Steel

L19A Latching Anti Vandal Push Button Switch L19 (19mm) Made of Stainless Steel
Price: US $ 7.05/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 20/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: L19A-F-Z1-S-R
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Is Customized: Yes
Function: Latching
Max. Voltage: 250VAC
Max. Current: 5A
Usage: Reset Button

Product Description

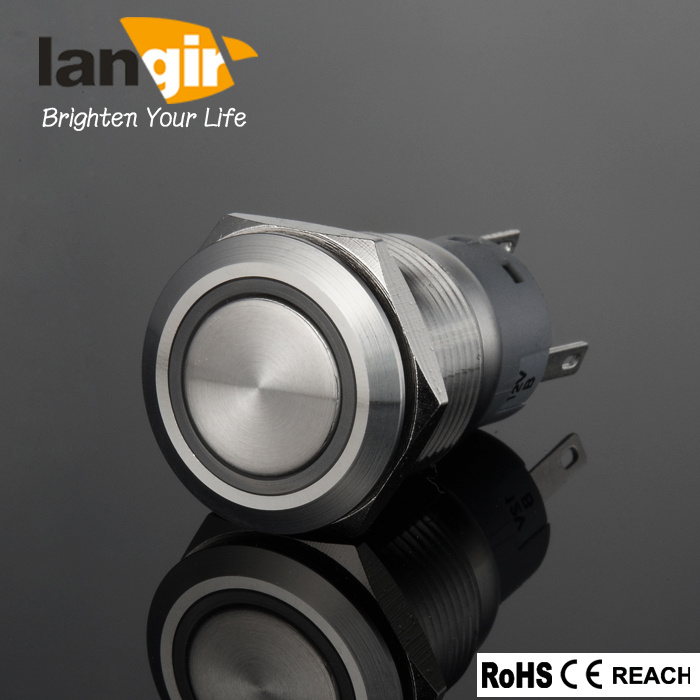

Latching Anti vandal Push Button Switch L19 (19mm) made of Stainless steel
is_customized                    Yes
Function                              Latching
Max. Voltage                      250vac
Max. Current                      5A


TypeL19A-FL19-F/RL19A-F/D
Illuminated TypeNon-IlluminatedRingDot
TerminalPin(2.8*0.5)



Max.Switch RatingIth:5A Ui:250VAC

Contact Ressistance≤50mΩ



Insulation Resistance≥1000mΩ



Dieletric Strengh2000VAC



Operation Temp_20C-+55C



Mechanical Life1000000 Cycles



Electric Life>50000 Cycles



Contact MaterialSliver Alloy



Torque5-14Nm



Operation Pressure3-5N



ProtectionIP65/IK09



Material





ActuatorStainless Steel/*Anodized Aluminum
BodyStainless Steel/*Anodized Aluminum
TypeLED



BasePBT



Voltage6V/12V/24V/36V/110V/230V
LifeApprox:40000 hours





Profile

LANGIR A professional design, manufacture of Anti Vandal Switches, Piezo switches, Capacitive switches, Piezo Keypads and DC circuits - Miniature circuit-breakers for DC and solar generation; The switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.

Established in 2009, Langir Company has developed very quickly in this field. With the powerful technology support and advanced production and inspection devices, Langir products have exported to many regions and many countries.

We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied within 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication.

Assets

Technical and industrial excellence:

1. Strong technical expertise: R&D departments, large number of design tools, technological

Monitoring…

2. In-house design and fabrication of tooling

3. Control of numerous technologies and all the production processes

4. Large production capacity: Automated processes

Quality of products and services:

1. The widest product offering on the switch market

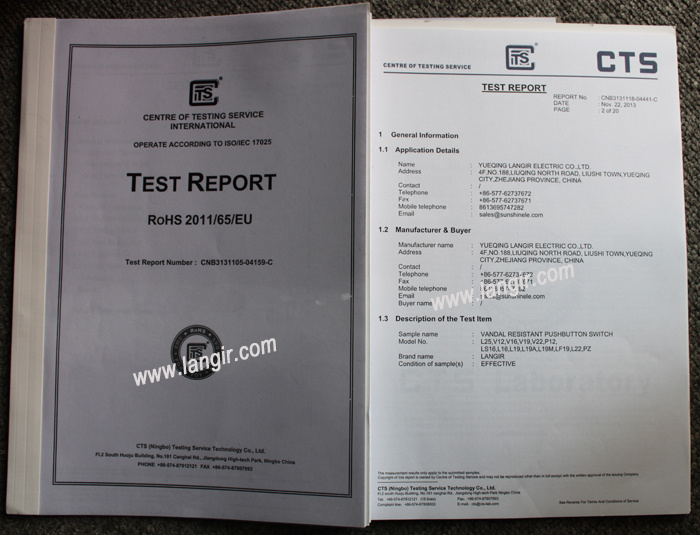

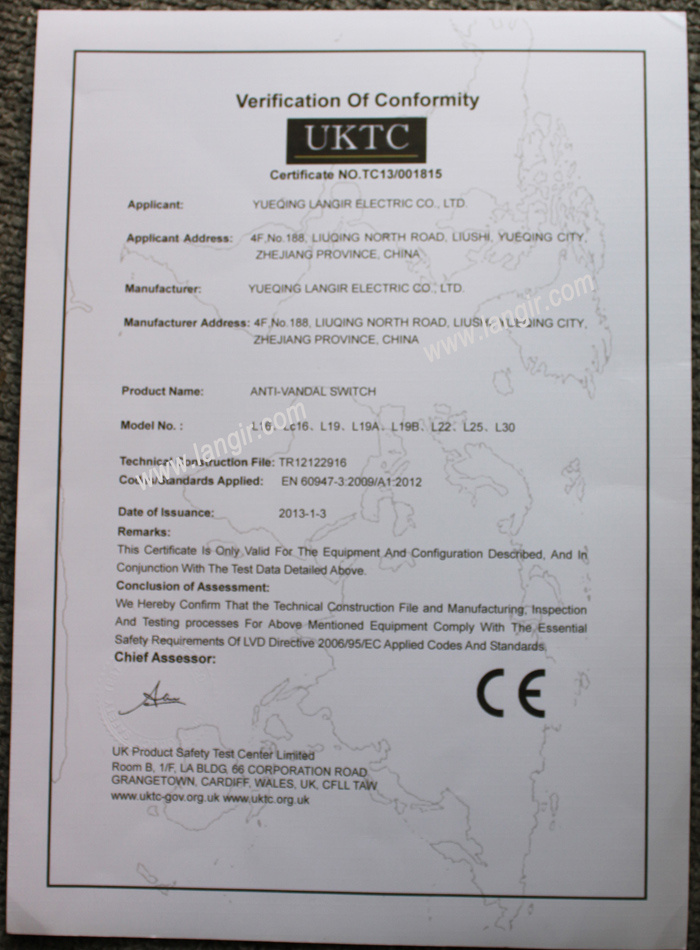

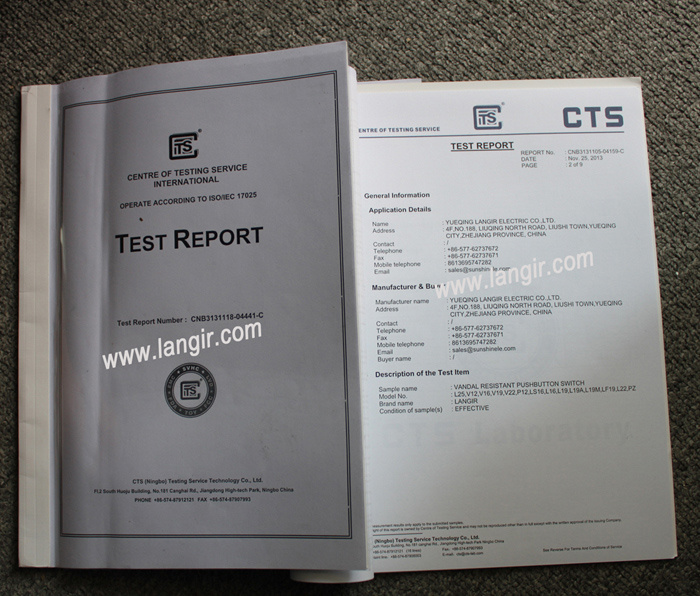

2. Numerous approvals and certifications (RoHS, REACH, CE, CCC, CB and TUV … )

3. Continuity in the supply of all product ranges

4. Industrial autonomy

Engineering & Production

LANGIR vertical integration for customer service from raw material transformation - plastic powders, metal bands - to finished products, through the design and production of tooling, LANGIR controls all the production stages. LANGIR has a strong reputation for quality, confirmed by the ISO9001: 2008 certification. Our products are designed and produced in accordance with quality standards and environmental requirements.
