LAN Cable/Network Cable/Cat5e FTP LAN Cable in CCA

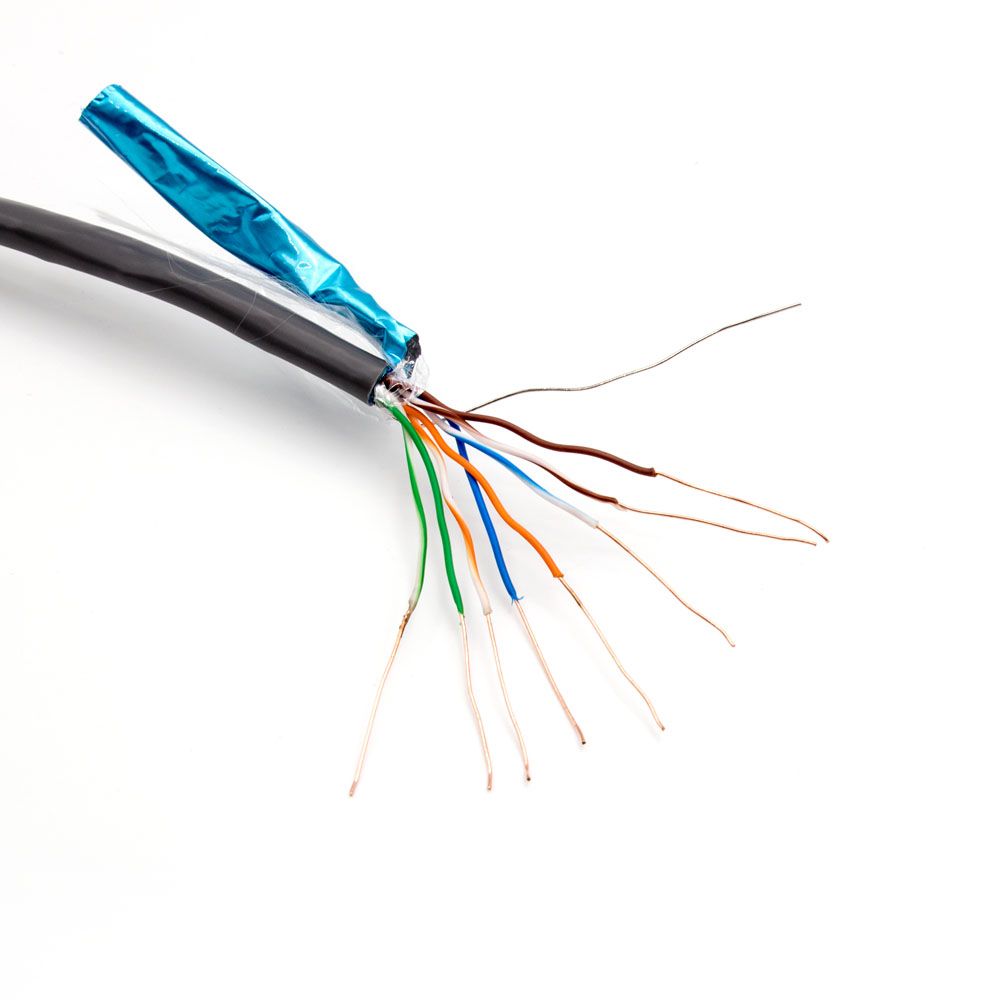

Name: LAN Cable/Network Cable/Cat5e FTP LAN Cable in CCA
Brand: all-electronics-online.com
SKU: 760228275
Availability: InStock
Rating: 4.9 (56 reviews)

Price:	US $ 18.8-68.42/Box
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Box
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Cat5e FTP LAN Cable in CCA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White, Gray, Black, Yellow, Brown
Insulation:	PE(HDPE)
Jacket:	PVC(Lszh)
Nominal Outer Diameter:	5.2mm
Operating Temperature Installation:	: 0~50/Operation: -30~+75
Brand Name:	OEM
Number Of Conductors:	8
Test Report:	Fluke Test Pass
Usage:	Computer
Type:	Wired
Support Network:	GSM
Information Content:	Data
Certification:	ISO
Condition:	New

Product Description

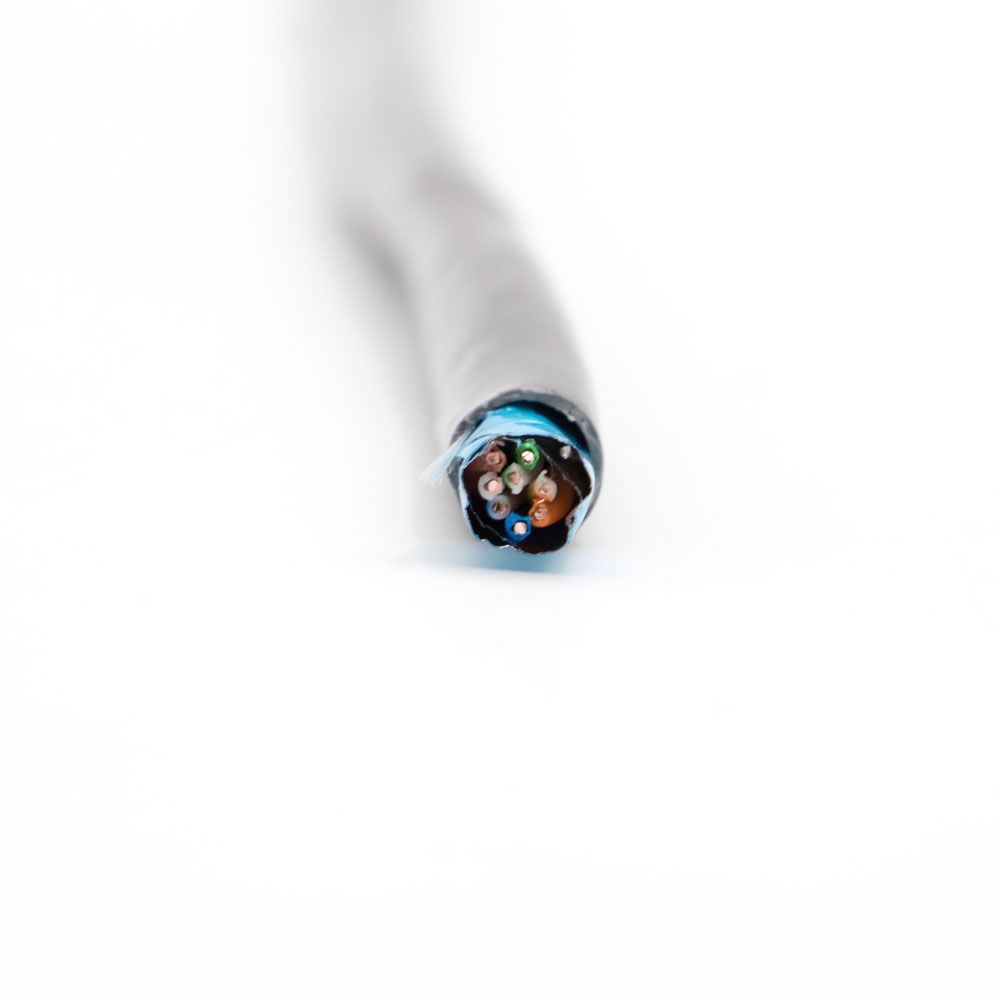

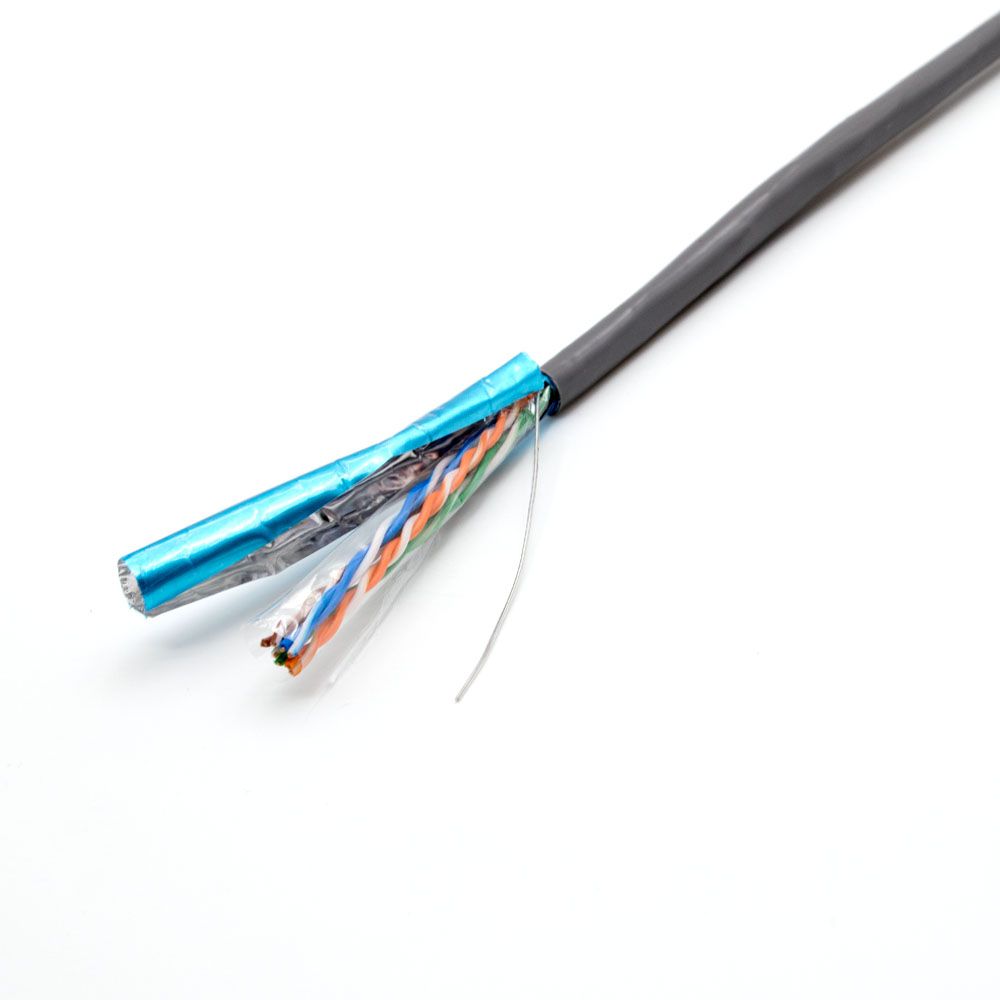

Cat5e FTP LAN cable
Configuration:

Inner conductor	Material	Soild Bare Copper/CCA
	Diameter	0.5 ± 0.01mm (24AWG)
Insulation(Dielectric)	Material	Color-coded PE (Polyethylene)
	Thickness	≥ 0.18mm
	Diameter	1.0± 0.03mm
Twisted pair	4Pairs	Pair 1 : Blue, White / Blue Pair 2 : Orange, White / Orange Pair 3 : Green, White / Green Pair 4 : Brown, White / Brown
Shild	Material	PET Film+Aluminum Foil
Rip Cord	N/A	Yes
Drain Wire	Diameter	0.40mm/0.45mm TC/CCA
Outer Jacket	Material	PVC(PE/LSZH)
	Thickness	≥ 0.55mm
	Nominal O.D	5.4mm ± 0.30mm
Options: Jelly Compound, Jacket: UV, FR, Rohs complied.

Mechanical Properties:

Elongation	Min. 300%
Temperature Range	-20 up to +75° C
Tensile Strength	Min 1.68kg/mm²

Electrical Properties:

Conductor Resistance	Max. 9.5 ohm/100m
Resistance Unbalance	Max. 2%
Insulation Resistance	150 ohm/KM
Mutual Capacitance	Max. 5600pF/100m
Capacitance Unbalance	Max. 330pF/100m
Impedance	100+/-15 ohm
Spark Test	2000V
Velocity of Propagation	67%
Standard	UL444,TIA/EIA568B,ISO/IEC11801

CONSTRUCTION:
1. Conductor: Solid Bare Copper
2. AWG: 24
3. Conductor Dia(mm): 0.51
4. Insulation: PE
5. Average Thickness(mm): 0.21
6. Min. Point Thickness(mm): 0.17
7. Insulation Dia(± 0.02mm): 0.91
8. Twisting Lay Length(± 20mm): 140
9. Jacket: PVC
10. Average Thickness(± 0.5mm)
11. Min. Point Thickness: 0.43mm
12. Outer Dia(± 0.2MM): 5.0
13. Rip Cord: Yes
14. Weight(kg/km): 32
APPLICATION:
100Base-TX, 100Base-T4, 100VG-AnyLAN, 1000Base-T, (Gigabit Ethernet), ATM

Frequency MHz	Impedance ohm	RL	Attenuation dB/100m	Next Db/100m	ELFEXT dB/100m	PS NEXT Db/100m	PS FLFEXT Db/100M	Propagation speed m/s
Frequency MHz	Impedance ohm	db	Attenuation dB/100m	Next Db/100m	ELFEXT dB/100m	PS NEXT Db/100m	PS FLFEXT Db/100M	Propagation speed m/s
1	100± 15	20	2	65.3	63.8	62.3	60.8	0.65C
4		23	4.1	56.3	51.7	53.3	48.7
8		25	5.8	51.8	45.7	48.8	42.7
10		25	6.5	50.3	43.8	47.3	40.8
16		25	8.2	47.3	39.7	44.2	36.7
20		25	9.3	48.5	37.7	42.8	34.7
25		24	10.4	44.3	35.8	41.3	32.8
31.25		24	11.6	42.9	33.9	39.9	30.9
62.5		22	17	38.4	27.8	35.4	24.8
100		20	22	35.3	23.8	32.3	20.8
155	10± 18	19	28.1	33	20	29	17
200	10± 18	19	32.4	31	18	28	15
310	100± 22	18	41.8	28	14	25	11
350	100± 22	17	44.9	27	13	24	10

Shenzhen Taiyue Communication Cable Co., Ltd., is specialized in producing & exporting LAN cable for 10 years,

Our main products including:LAN cables, Patch cord, USB cables, power cords, computer cables, optical fiber cables, coaxial cables, etc.

With years of development, Taiyue has built up 3 factories, 2 shops and 2 branch office, and has built up good relationship with numerous famous enterprises in domestic and aboard, Our products are selling well among Europe, America, Asia, Australia, Egyptian and other countries.

Our factory is located in Guangzhou, China, which covers more than 8, 000 square meters with more than 200 energetic staff.By taking advantage of the latest technology in domestic and overseas fields, and combining our professional manufacturing experience, Taiyue has been an entity with large-scale production ability.

The ever-pioneering TAIYUE people has set up the solid philosophy "promote and innovate, quality-oriented, win competition by quality, set up PULI brand", in order to detect the future trend of information intellectualization with our unique expertise in the industry.Based in Guangdong, with vision toward the market covering China and the world, cherishing confidence and releasing enthusiasm, we will make up our way to a glorious future.
