Product Description

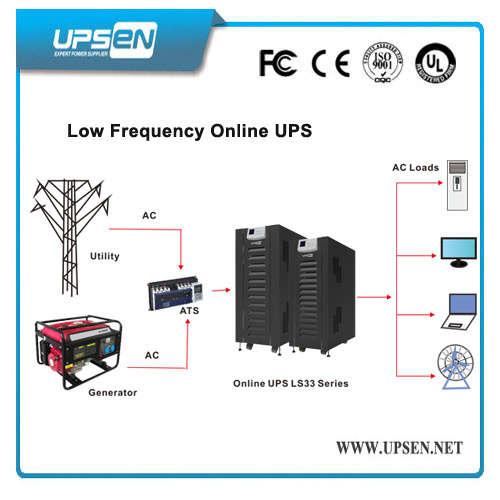

Large Low Frequency Online UPS 100KVA Compatible with Generator
Model:Low Frequency Online UPS Legend Strar Series LS33 10K-100K(3Ph in/3Ph out)
Key Features
1:Built-in isolation transforme
2:DSP technology guarantees high reliability
3:True galvanic isolation transformer design
4:IGBT inverter design and digital control technology
5:advanced true double conversion On-line technology
6:perfect for the most demanding and delicate of applications
7:Intelligent battery management to prolong battery lifecycle
8:True on-line double conversion design providing all power protection
9:high reliability: full microprocessor control with no-break static and manual by-pass
10:high level diagnostics: states, measurements and alarms - available from the built-in LCD
11:Redundant fan design and independent ventilation enhance durable operation under harsh environment
12:Inbuilt with an isolated transformer resists high impulse current with extra load compatibility and comprehensive dual protection provides high system reliability
Application
Data center,SMT chip mounter equipment, Control Equipment,railway stations, airports, telecommunication, aviation, traffic, post service, public security, customs, government and other entitiesh etc.
Technical Specification
| LS33 Series 10K - 80Kva |
| MODEL | 10K | 20K | 30K | 40K | 60K | 80K |
| CAPACITY | 10KVA/8KW | 20KVA/16KW | 30KVA/24KW | 40KVA/32KW | 60KVA/48KW | 80KVA/64KW |
| INPUT |
| Nominal Voltage | 3 x 380VAC/400VAC (3Ph + N) |
Acceptable
Voltage Range | 305VAC ~ 460VAC |
| Frequency | 46-54Hz or 56-64Hz |
| INVERTER |
| Nominal Voltage | 3 x 380VAC/400VAC (3Ph + N) |
| Precision | Stationary: ±1%
Transitory: ±5% (load variations 100-0-100%) |
|
| Frequency | 50/60 Hz synchronised ±1 %
With mains absent ±0.1 Hz |
Max.
Synchronisation Speed | ±1 Hz/s |
| Waveform | Pure Sinewave |
Total Harmonic
Distortion (THDv) | <2% (Linear Load)
<5% (Non-linear Load) |
| Phase Displacement | 120º ±1% (balanced load)
120º ±2% (imbalances 50% of the load) |
| Dynamic Recovery Time | 1 cycle at 98 % of the static value |
| Admissible Overload | 110% for 10min; 150% for 60sec ; >160% for 200ms |
| Admissible Crest Factor | 3:1 |
| Admissible Power Factor | 0.6~1 (inductive or capacitive) |
Imbalance Output Voltage
@ 100% Unbalanced Load | <1% |
| Current Limit | High overload, short-circuit: RMS Voltage Limit
High Crest-Factor current: Peak Voltage Limit |
| STATIC BYPASS |
| Type | Solid state |
| Voltage | 3 x 380VAC/400VAC (3Ph + N) |
| Frequency | 50/60 Hz |
| Activation Criterion | Microprocessor control |
| Transfer Time | Zero |
| Admissible Overload | 150% for 1 hour; 180% for 30sec; >200% for 200ms |
| Transfer to Bypass | Immediate, for overloads above 160% |
| Retransfer | Automatic after alarm clear |
| MAINTENANCE BYPASS |
| Type | Without interruption |
| Voltage | 3 x 400V (3Ph + N) |
| Frequency | 50/60 Hz |
| Overall Efficiency | 90% | 91% | 92% | 93% |
| 90% | 91% | 93% | 93% |
| BATTERY & CHARGER |
Battery Type
and Numbers | 12VDC x 16 pcs | 12VDC x 32 pcs (29~32 pcs adjustable) |
| Nominal Battery Voltage | 192 VDC | 384 VDC (Based on 32pcs batteries) |
| Charging Method | CC/CV |
| Precision | ±1% |
| Charging Current | Max.: 40 A |
| Charging Voltage | 216 VDC | 432 VDC (Based on 32pcs batteries) |
| PHYSICAL |
Dimensions,
D x W x H(mm) | 656 x 405 x 817 | 656 x 405 x 941 | 840 x 432 x 1140 | 975 x 554 x 1286 |
| Net Weight (Kgs) | 180 | 205 | 295 | 330 | 451 | 519 |
| * Product specifications are subject to change without further notice |
