Large Power UPS Efficiency >94% in Eco Mode

Name: Large Power UPS Efficiency >94% in Eco Mode
Brand: all-electronics-online.com
SKU: 707148515
Availability: InStock
Rating: 4.4 (49 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	2/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GP9335c 120-800KVA
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Mid East,Western Europe
Phase:	Three Phase
Type:	On-line
Protection:	Unbalanced Loads
Brand:	Sorotec

Product Description

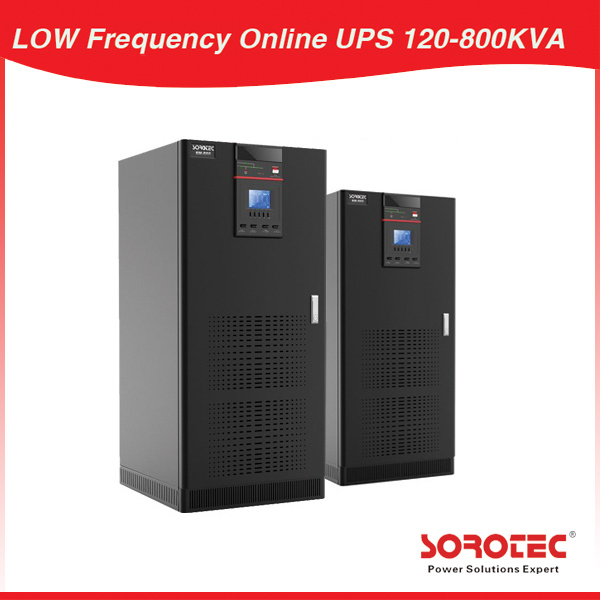

Large Power UPS Efficiency >94% and reach 98% in ECO Mode

Product snapshot:

Model: 120-800KVA

Nominal voltage: 380/400/415VAC

Output Power factor: 0.9

Indicated language: 12 types (En.Ru.Sp.Fr…)

Nominal frequency: 50/60Hz

Parallel: maximum 6PCS UPS

Efficiency Rate of Machine:≥94% (≥98% in ECO Mode)

Key Features:
1. On-Line Dual Conversion, fully isolating the influences of power grid pollution and power failure from utility power supply and diesel generator to load

2. Rated at 0.9 output power factor, more applicable to server computer and network center that use PFC technology in a large scale, and deliver more Active power than conventional UPS

3. Use advanced 6th generation DSP and full digital control technologies to realize higher system stability

4. Multi input harmonic suppressing technology improves the utility rate of electric Power Output isolation transformer with zero phase shift reduces the influences of Neutral toGround voltage and load harmonic current to inverter

5. Extra strong capability to withstand output overload and short circuit, ensuring the System stability and system safety under extreme conditions
6. Advanced distributed active parallel technology can realize parallel operation of six UPS Units without the need of centralized bypass cabinet
7. Extra wide input voltage and frequency range make it adapt to severe power grid Environment

8. Standard input/output filter improves the system EMC performance

9. Intelligent battery management maintains battery automatically to prolong the battery life

10.6-inch extra large LCD that can display 12 language( Chinese. English. Russian. Spanish. French and so on Layered independently-sealed ventilation channel and redundant fan, circuit boards With protective paints and a dust filter embedded make it highly efficient to dissipate heat and protect the product effectively under severe environment.

Shenzhen SORO Electronics Co., Ltd is a professional manufacturer in the field of power electronics for over 10 years. We have two large production sites and one SMT department in Zhejiang and Shenzhen. SORO has been a leading ente-rprise in the UPS industry in China.

Since established, The company has carried out three strategies: Operation innovation strategy, people-oriented strategy, technical guidance str-ategy, and implemented strict scientific management with full-fledged quality management system.

The company invests 5% of its annual revenue in researching and development every year. We had international advanced equipments for developing \testing and producing. SORO invited the best technical elites at home, meanwhile, the company established perfect cooperateion relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.

The company ranks first in passing the ISO9001 international quality system certification. We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC); cUL; FCC.

We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran...And so on. We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.

SORO would like to cooperate with famous electric enterprise and create the briliant future based on the constant innovation spirit\uncompromising quality\the advanced technology \the standard and efficient service.
