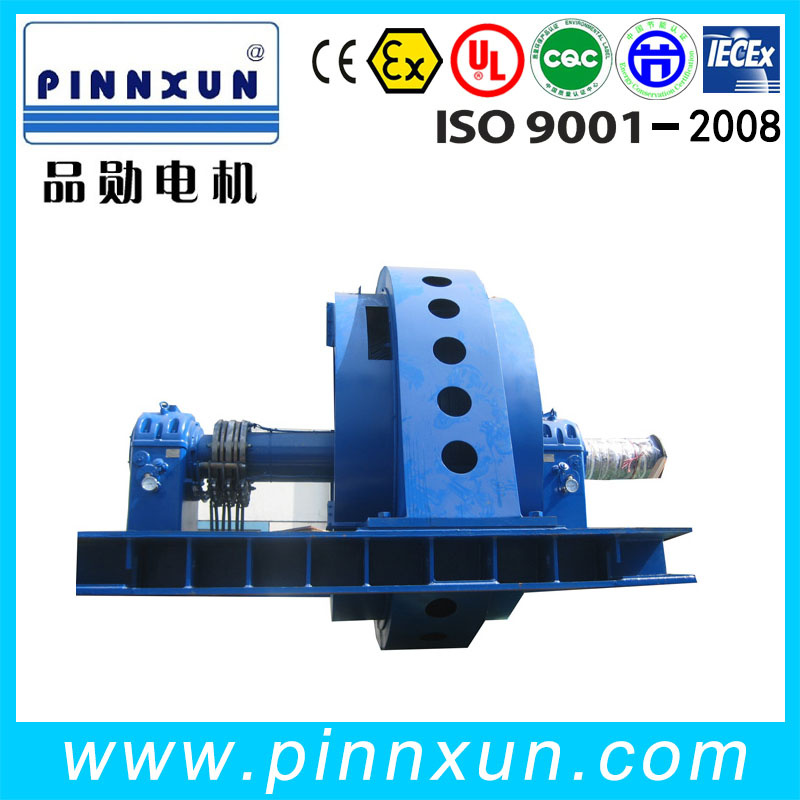

Large Size Yr 2300V Slip Ring Indcution Motor
| Price: |
US $ 10000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
yr |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: |
50Hz |
| AC Voltage: |
3.3kv 6.6kv 10kv 11kv 13.8kv |
| Other Name: |
Wound Rotor Motor |
| Usage: |
Mill Machine, Lift Machine, Sugal Machine etc |
| Temperature Rise: |
B |
| Warranty: |
in 12 Months |
| Insulation Class: |
F |
| Color: |
Blue |
| Output Power: |
160kw-6000kw |
| Efficiency: |
Ie1 |
| Number Of Stator: |
Three-Phase |
| Operating Speed: |
Constant Speed |
| Application: |
Power Tools |
| Casing Protection: |
Closed Type |
| Rotor Structure: |
Winding Type |
| Starting Mode: |
Direct on-line Starting |
| Brand: |
Pinnxun |
| Species: |
Hv Slip Ring Motor |
| Certification: |
ISO9001 CE CCC |
Product Description
Specifications
three phase YRKK slip ring motor for cement mill
capacity:75Kw-7500Kw
voltage:380V 660v 3kv 6kv 10kv
Standard IEC
Antique updated YRKK slip ring electric motor
motors HV electric motors 1000KW rolling mine Motors blower motor blower motor fan motor 13.8kv motor 6.6kv motor asynchronous motor induction motor electric motor
Product: YRKK slip ring electric motor
YRKK slip ring electric motor Feature and usage:
Y,YR series,YKK,YKS,YRKK,YRKS series medium sized high voltage three phases asynchronous motors (shaft height 355-1000mm) are our optimized product series adopted the technical standard of high voltage three-phases asynchronous motors introduced from ABB and established on the basis of our experience of manufacturing high voltage motors, for upgrading the old JS,JSQ,JR and JRQ series.
These series motors adopt fine materials, excellent workmanship and features low operation cost, low noise, low vibration, high reliability and convenience for installation and maintenance.
The motors of these series meet the National Standard GB755 (Fundamental Technical Requirements For Rotation Electrical Machines), IEC Standards and Enterprise Standard of Mechanical and Electronic Industries Department JB/DQ3134, JB/DQ3135, JB/DQ3436 and JB/DQ3437.
The mechanical dimensions and tolerances of this series of motors conform with the China national standard GB l800-1804 and the ISO standard.
From exhibition to production we are always do our best
YRKK slip ring electric motor Motor Performance
Power range:160kw-6000kw
Frame Size:355-1000mm
Rated Voltage: 3.3KV 6.6KV 10KV 11KV 13.8KV
Speed;3000rpm 1500rpm 1000rpm 750rpm 600rpm
Protection Class: IP44 IP54 IP55
Cooling type;IC611 IC616
Ambient Temperature: -15°C~40°C
Altitude: not exceed 1000 Meter
Rated Frequency: 50Hz/60Hz
Insulation Class: F
Temprature rise: B
Working Duty: S1(Continuous)
Certification To Guarantee We are Good In Quality
Ordering Informations
1.Please indicate the motor type,rated output,rated voltage,rated frequency,synchronous speed,Explosion proof Mark,mounting type,rotation direction(view from the shaft extension side)Use of the environment(indoor or outside)If the user havn't point out the rotation and environment,normailly we think is CW roration and used indoor.
2.when user have special requirments,For example:Dispose the stator,bearing explosion proof and bearing temperature sensors,space heater,Plateau use,specical frequency,mounting size change,special output,the user must ,order can be confirm after signing the technical agreement with engneering department .
3.The catalogue is only fpr reference,and there may be variations.
4.This range of motor can also be made into Variable-Frequency motors,the range of frequency of which is 0-100HZ,the output and overall dimensions should be confirm separately.
In respect to enclosure protection degree, the motor of these series are of IP23 and IP44 of GB4942.1 and IEC34-5 (Classification of Enclosure Protection of Electrical Machines). Motors of drip-proof IP23 can be modified to motors of pipe ventilation IP44 upon request of customer requests. Other protection degree such as IP24 and IP54 are also possible by separate agreement if customer requests .
In respect to type of cooling, the motors of these series are of IC01 , IC611 and IC81W of China National Standard GB1993 and IEC34-6 (Type of Cooling of Electrical Machines). Other type of cooling are also possible by separate agreement if customer requests.
In respect to type of mounting the motors of these series are of IMB3 horizontal with feet, satisfying the requirements of GB997 and IEC34-7 (Construction and Code for Type of Mounting of Electrical Machines).
|
No. |
Squirrel cage motor |
Y |
YKK |
YKS |
Y2 |
|
Slip ring motor |
YR |
YRKK |
YRKS |
/ |
|
1 |
Structure |
Box-type construction, made up of steel plates welded with each other |
Compact struction |
|
2 |
Cooling method |
IC01 or (IC11, IC21, IC31) |
IC611 or IC616 |
IC81W |
IC411 |
|
3 |
Natural ventilation, with top mounted protection cover |
With top mounted air-air cooler |
With top mounted air-water cooler |
|
|
4 |
Protection type |
IP23 |
IP44 or IP54 |
IP44 or IP54 |
IP54 |
|
5 |
Insulation |
F |
|
6 |
Mounting arrangement |
IMB3 |
|
7 |
Voltage available |
3kv, 3.3kv; 6kv, 6.6kv; 10kv, 11kv |
|
8 |
Frequency available |
50HZ 60HZ 0-100HZ |
|
Shanghai Pinnxun Electric Motor Co., Ltd located in the Beautiful scenery, convenient transportation international metropolis, ----Shanghai. Is a modernized large scale enterprise for motor and control system manufacturing, R&D, sales and services. Pinnxun always take good faith, responsibility, carefulness and excellence as our management philosophy, committed to providing customers with superior quality products, perfect solutions and Advisory pre and after sales service.
Pinnxun Motor had passed the ISO9001-2008 quality control system certificate and European Union CE certificate. Company products was designed and manufactured strictly according to IEC and DIN standards of high efficiency, energy saving, economy, environmental protection requirments, Company have sellf-support right to import and export. Motors and had widely export to more than 40 countries including Europe, Australia, Southeast Asia, Middle East, Africa and other countries and regions. Companies continue to introduce advanced production technology, while continuing to improve their management level, To set up a solid foundation for the company' S development.
Products including Low voltage three phase AC motor, high voltage motor, large size synchronous motor, Russia GOST standard motors and DC motor, They are widely use in Electricity, Coal industry, Petro industry, Mining, Metallurgy, Railway industry, Transportation, Chemical, Paper making, Printing-Dyeing, industry, Navigation, Irrigation, Military and other high-tech areas. They are designed precision, long life, low noise, stable performance, low failure rate, high technology characteristics, they had win widely praised by global user in various fields, As our company' S rapid development, we plan to establish multiple business outlets in the nation' S major industrial cities and expand our sale department around the world.
We take Integrity as our fundamental, market as the guide, brand as the honor, quality as our life, provide our clients energy saving, environmental protection, safe, efficiency and first-class products. And quality pre-sale after-sales service, focus on creating "pinnxun "brand,
We warmly welcome customer to contact and visit us, we would like to establish stable and long terms relationships to support your business for mutual benefits.
