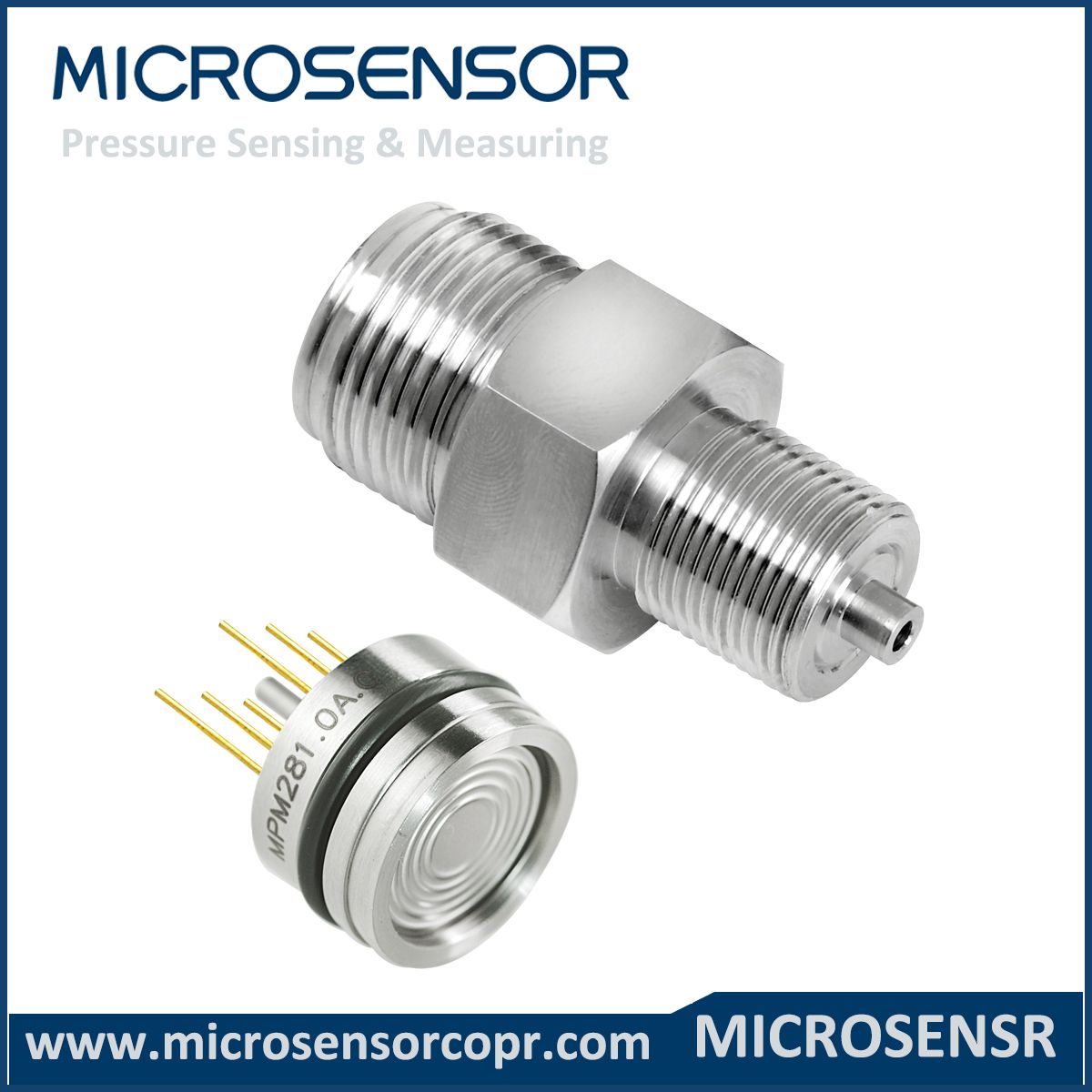

Laser Trimming Pressure Sensor(MPM281)

Name: Laser Trimming Pressure Sensor(MPM281)
Brand: all-electronics-online.com
SKU: 741157585
Availability: InStock
Rating: 4.5 (90 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM281
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	Analog Sensor
Usage:	Processing Pressure Measurement
Theory:	Pizoresistive Sensor
Power Supply:	=<2.0madc
Electric Connection:	Diameter0.5mm Kovar Pin or 100mm Silicon
Common Mode Voltage Output:	50% Input (Typ.)
Input Impedance:	3k~8k Omega
Output Impedance:	3.5k~6k Omega
Response (10%~90%):	<1ms
Overpressure:	1.5 Times Fs

Product Description

Laser Trimming Pressure Sensor(MPM281)

Features:
1.      Full stainless steel
2.      Constant current power supply
3.      Isolated construction
4.      Compact 19mm
5.      Wide temperature compensation

Construction performance:
1.      Stainless steel 316L
2.      Housing: Stainless steeel 316L
3.      Pin: Kovar
4.      O-ring: Viton
5.      Net weight: ~16g

Basic Specification:

Specification*	Min.	Typ.	Max.	Units
Linearity		±0.2	±0.25	%FS,BFSL
Repeatability		±0.05	±0.075	%FS
Hysteresis		±0.05	±0.075	%FS
Zero output			±2	mVDC
FS output	70			mVDC
Zero thermal error		±0.75	±1.0	%FS,@35ºC
Span thermal error		±0.75	±1.0	%FS,@35ºC
Compensated temp. range	-10~80			ºC
Working temp. range	-40~125			ºC
Storage temp. range	-40~125			ºC
Stability error		±0.1	±0.2	%FS/year
*testing at basic condition

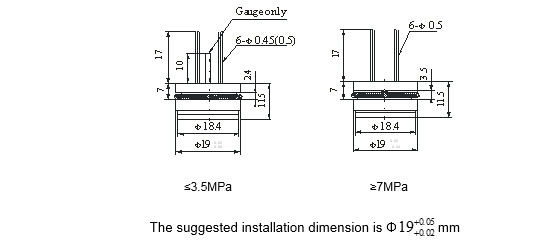

Outline Construction:
(Unit: mm)

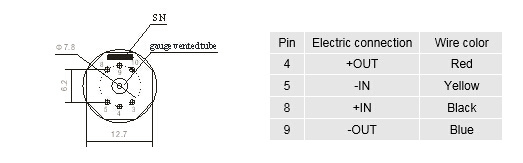

Electric Connection:

Order Information:

MPM281

High Stable Piezoresistive OEM Pressure Sensor

Range code

Pressure range (kPa)

Ref.

Range code

Pressure range (MPa)

Ref.

0~7

0~1

G.A

0~20

0~2

G.A

0~35

0~3.5

G.A.S

0~70

0~7

0~100

0~10

0~200

G.A

0~20

0~350

G.A

0~35

0~700

G.A

0~70

Code

Pressure type

Gauge

Absolute

Sealed gauge

Code

Pressure connection

O-ring

Code

Temperature compensation

Laser trimming

Outer compensated resistor

Code

Electric connection

Φ0.5mm Kovar pins

4-color 100mm flexible rubber wire

Code

Special measurement

Gauge sensor to measure vacuum

MPM281 07 G 0 L 1 Y the whole spec
