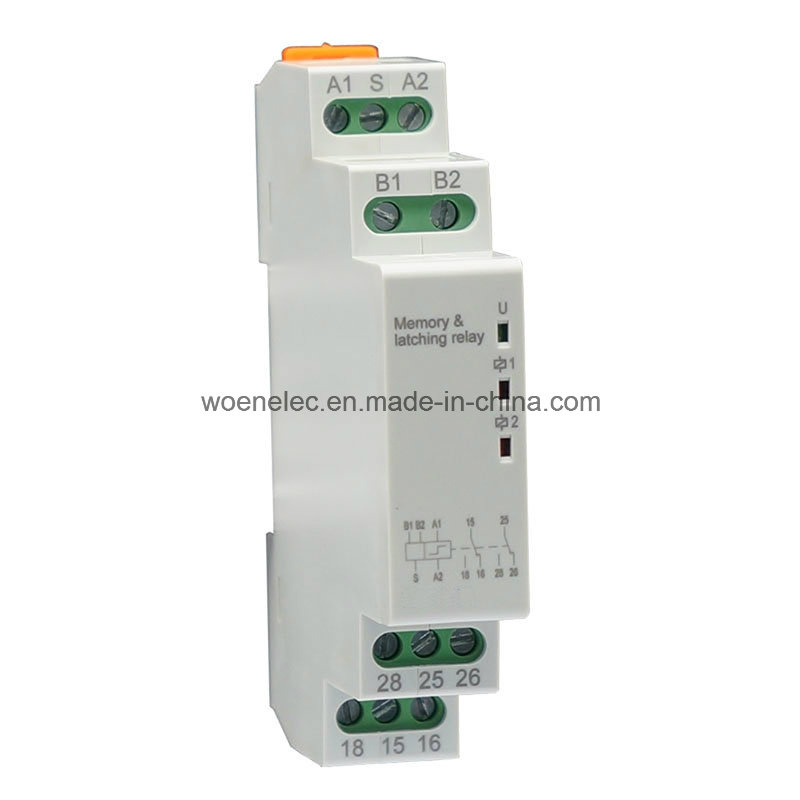

Latching (memory) Relay

Latching (memory) Relay
Price: US $ 5/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Western Union,Money Gram
Prod Model: ML23

Product Description


General

Latching relays, controlled by buttons from several locations can replace three way switches or cross bar switches thanks to control by buttons (unlimited number, connected in parallel by 2 wires), installation gets more transparent and faster for mounting

The relay memorize its last state even after supply failure. During the failure relay will turn off and after re-energizing will automatically turns on.

Features
1. Microprocessor controller
2. Relay state memory
3. AC/DC 24-240V universal voltage
5. Function selected via external jumper between B1 and B2
6. LED indication for power supply and relay status
7. 1 module DIN-Rail mounting


Technical data
Supply terminalsA1,A2
Pulse terminalS
Supply voltageAC/DC 24-240V
Rated frequency50/60Hz
Output contacts1C/O or 2C/O
Current rating10A/AC1
Insulation voltage250V
Mechanical life10000000
Electrical life1000000
Protection degreeIP20
Pollution degree3
Altitude≤2000m
MountingTH-35 Rail
Founded by engineers who worked in the field of electronic, mechanical and industrial design for over 10 several years, Reletek is a professional manufacturer of electronic modular devices, which bring new possibilities for home and office controlling, monitoring and security, as well as for industrial process control.

Development and modern technology are the pillars of our work, which is highly appreciated by our customers, because all products and services can be customized according to individual requirements - you get not just a product, but a long-term solution.

Thanks to high quality production and service on customers, Reletek had partners from Spain, Australia, Russia, Ukraine, Algeria and Egypt etc.
