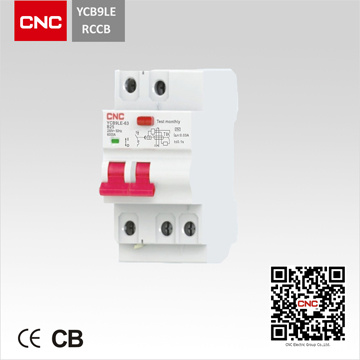

Latest Design Ycb9le-63 (H) Residual Current Circuit Breaker (RCCB)

Name: Latest Design Ycb9le-63 (H) Residual Current Circuit Breaker (RCCB)
Brand: all-electronics-online.com
SKU: 729455775
Availability: InStock
Rating: 4.5 (117 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YCB9LE-63(H)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand:	CNC
Rated Voltage:	400V
Rated Current:	63A
Breaking Capacity:	Low Voltage Circuit Breakers
Certification:	CB
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Structure:	Conventional Circuit Breaker
Poles Number:	1/2/3/4p
Installation:	DIN Rail

Product Description

-China Top 500 Enterprise
-Full-automatic assembly line
-Output: 100000pcs/day

Latest Design YCB9LE-63(H) Residual Current Circuit Breaker

Product Overview
YCB9LE-63(H) series residual current circuit breaker is suitable in the circuit of AC 50Hz or 60Hz, rated voltage up to 400V, rated current up to 63A. When human electric shock or residual current of electric net exceed fixed value, residual current circuit breaker can automatically cut power supply at a very short time and ensure safety and prevent equipment from accident due to residual current.
Residual current circuit breaker have overload and short-circuit protection function which can protect circuit from overload and short-circuit and can be used for infrequent change of circuit in normal circumstances.
It is used in industry, commerce, high building and civil house etc.

Normal Working Condition
1. Working temperature: -25° C~+60° C, At+20° C, humidity shall not be higher than 95%; At+40° C, humidity shall not be more than 50%.
2. Altitude: ≤ 2000m;
3. Installation Type: II, III
4. Installation Method: Embedded Vertical DIN Rail Installation
5. Pollution Degree: 2

Item	Data
Frame size	63
Rated Insulation Voltage	500V
Rated Frequency	50Hz/60Hz
Poles	1P+N, 2P, 3P, 3P+N, 4P
Instantaneous Release Type	B, C, D
Rated Residual Current	0.01A, 0.03A, 0.1A, 0.3A, 0.5A
Rated Short-circuit Capacity Icn	6kA(YCB9LE-63), 10kA(YCB9LE-63H)
Service Short-circuit Capacity Ics	6kA(YCB9LE-63), 7.5kA(YCB9LE-63H)
Rated Residual Making and Breaking Capacity	2kA
Insulation Pulse Withstand Voltage	a. Poles are connected together and can bear impulse voltage of peak valueup to 8000V with neutral pole; b. Poles are connected together with neutral pole and can bear impulse voltage of peak value up to 8000V with metal rack.



Mechanical Life	20000

CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.

Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.

We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
