Latest Products Ycb9-63 (H) Mini Circuit Breaker High Breaking Capacity: 10kv

Name: Latest Products Ycb9-63 (H) Mini Circuit Breaker High Breaking Capacity: 10kv
Brand: all-electronics-online.com
SKU: 729455575
Availability: InStock
Rating: 5 (58 reviews)

Price:	US $ 4.5-5.9/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YCB9-63(H)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand:	CNC
Rated Voltage:	230/400V
Rated Current:	63A
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Certification:	CB
Installation:	DIN Rail
Structure:	Conventional Circuit Breaker
Poles Number:	1/2/3/4p

Product Description

-China Top 500 Enterprise
-Full-automatic assembly line
-Output: 100000pcs/day

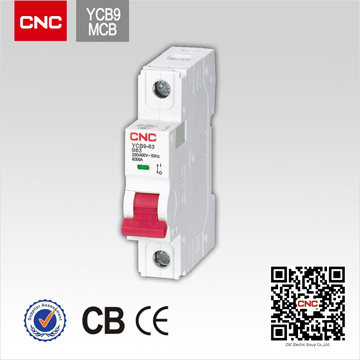

Latest Products YCB9-63(H) Mini Circuit Breaker

High Breaking Capacity: 10KV

Product Overview
YCB9-63(H) series mini circuit breaker is suitable in the circuit of AC 50/60Hz, rated voltage 230V/400V, rated current up to 63A for protecting circuit equipment in buildings against over-current and similar installation which have isolating, overload, and short-circuit protection function, and is used for infrequent operation and change.
Circuit breaker is used in industry, commerce, and civil buildings etc.

Normal Working Condition
1. Working temperature: -25° C~+60° C, At+20° C, humidity shall not be higher than 95%; At+40° C, humidity shall not be more than 50%.
2. Altitude: ≤ 2000m;
3. Installation Type: II, III
4. Installation Method: Embedded Vertical DIN Rail Installation
5. Pollution Degree: 2

Item	Data
Frame size	63
Rated insulation voltage	500V
Rated impulse withstand voltage	4kV
Rated frequency	50Hz/60Hz
Instantaneous tripping type	B, C, D
Poles	1P, 2P, 3P, 4P
Rated short circuit breaking capacity	6kA(YCB9-63), 10kA(YCB9-63H)
Service short circuit breaking capacity	6kA(YCB9-63), 7.5kA(YCB9-63H)
Mechanical life	20000
Electrical life	8000
Grid distance	45mm
Enclosure protection degree	IP20
Standard	IEC60898-1, GB10963.1
Certification	CCC/CB

CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.

Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.

We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
