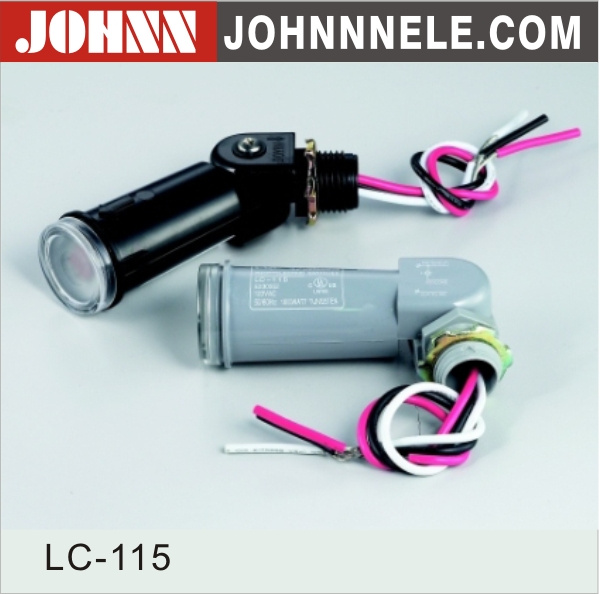

LC-115 Thermal Type Photocontrol Sensor Switch

Name: LC-115 Thermal Type Photocontrol Sensor Switch
Brand: all-electronics-online.com
SKU: 746015085
Availability: InStock
Rating: 4.6 (79 reviews)

Price:	US $ 0.58-0.58/Piece
Trade Terms:	FOB
Min Order:	2000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Swivel Type Wire-in
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Frequency:	50/60Hz
Action Time:	30-180
Cover:	PC
Failure Mode:	Fail on

Product Description

Circumrotatory 360, Vertically 180 asjustable
Standard: UL773A
UL Certified, UL File No.: E230352

Specification and Characteristic of LC-115:

Rated Frequency: 50/60Hz

Rated Volts: 120VAC(110V, 127V), 220VAC(230V, 240V, 277V)
Rated Load: 120V(1800W/1100VA, 1000W/1100VA, 600W/850VA)
220V(2000W/1800VA, 1000W/850VA)

Turn on LIghting Level: 10-16Lux

Turn off Lighting Level: <65Lux

Action time: 30-180

Ambient Temperature: -23-75

Power Consumption: <1W (120V<0.7W)

Electrical Life: >5000cycles

Cover: PC

Failure Mode: Fail On

Lead: 16AWG(105/600V)X16cm, 18AWG(105/600V)X16cm

Notes: Once the photocontrol is a applied to control the radiate lights(Ballast, HID).

Be cautionary of the impact current casued by the ballast.

When the impact current runs over 150% of the rated load, it will cause damage to the photocontrol.

It is advisable to use the Ballast with cosø 0.9 to alleviate the damage.
