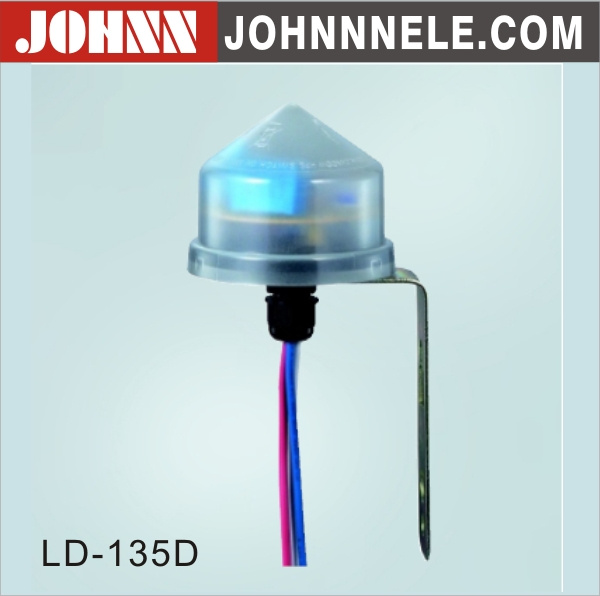

LC-135D 360 Sensible Outdoor Photocontrol Sensor Switch

Name: LC-135D 360 Sensible Outdoor Photocontrol Sensor Switch
Brand: all-electronics-online.com
SKU: 746163195
Availability: InStock
Rating: 4.9 (31 reviews)

Price:	US $ 0.96-0.96/Piece
Trade Terms:	FOB
Min Order:	2000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LC-135D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Frequency:	50/60Hz
Action Time:	<15
Ambient Temperature:	-40-75
Cover:	UV Stabilized PC

Product Description

Global Pioneer
Standard: ANSI C136.10, BS5972: 80
Electronic type(Wire-in)

Specification and Characteristic of LC-135D:

Rated Frequency: 50/60Hz

Rated Volts: 120VAC(110V, 127V), 240VAC(220V, 230V)

Rated Load: 120V/1000W/1800VA,
240V(2000W/1800VA

Turn on LIghting Level: 10Lux

Turn off Lighting Level: 20Lux

Action time: <15

Ambient Temperature: -40-75

Power Consumption: <1W

Electrical Life: >5000cycles

Cover: UV Stabilized PC

Failure Mode: Fail On

The model can be designed to control the lighting fixture by the circular/rotative change of ambient lighting level.

100Lux/ON, 50Lux/OFF

Action time: 60 delay

Our Yueqing Jianghong electrical appliance factory is a new style manufacturer whom focuses on the research and development of Miniature circuit breaker, terminal block and electric accessories in China. Our Products had exported to Middle East countries, South Asia, Africa USA, Europe, Africa and South America etc more than 20 countries by feedback good reputation. Jianghong found in year 2004, after several years ' improvement, from a small workshop developing to a team working includes design and research department, international department, financial department. One the way to the bright tomorrow, Jianghong Electrical which passed ISO9000 system are striving to put the quality as the basis of development, all our circuit breaker and terminal block are strict to according national and international standard. Most of them were approved by CE& RoHS certificate and all electric breaker compliance to IEC standard. Sincerely work with you to create a better tomorrow.
