LC/APC PC Sm Mm Fiber Optic Connector

Name: LC/APC PC Sm Mm Fiber Optic Connector
Brand: all-electronics-online.com
SKU: 692552572
Availability: InStock
Rating: 4.4 (85 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	10000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LC Connector
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Beige / Blue/ Green
Diameter:	0.9/2.0/3.0mm
Insertion Loss:	0.25db
Return Loss:	65 Db
Operating Temperature:	-40~80°c
Structure:	LC
Transmission Medium:	Sm & Mm
Ferrule Endface:	Upc/APC
Number Of Cores:	Sx/Dx

Product Description

Packaging & Delivery
Packaging Detail: LC connector fiber optic connector Per piece is packed in a individual plastic bag. Bags are put into a carto The the packing size: 47*36*23 cm
Delivery Detail: In a week
Specifications

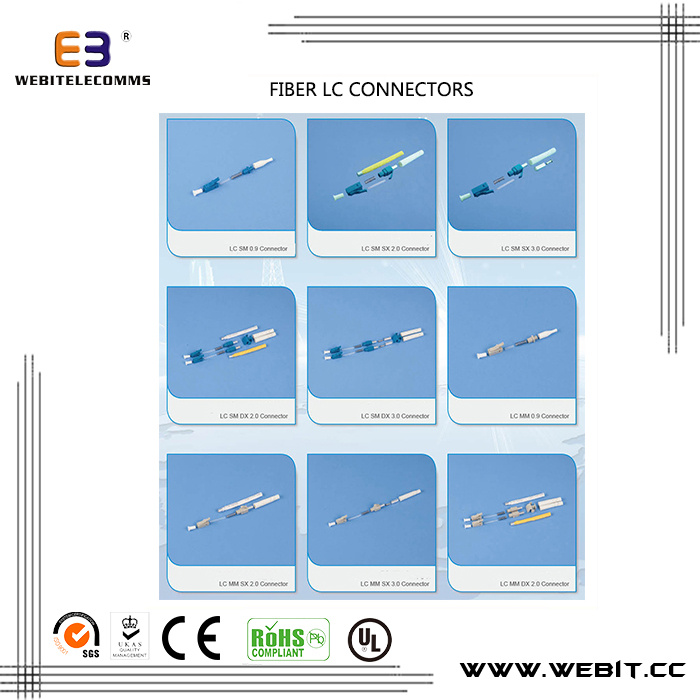

LC Cconnector fiber optic connector
1. Compliant ROHS
2. ISO9001: 2008
3. Easy installation
4. Competitive price
SC Cconnector fiber optic connector
About the LC Cconnector fiber optic connector

--Fiber Optic Telecommunications
--FTTH (Fiber To The Home)
--CATV & CCTV
--Data Processing Networks
--Telecom Equipment
--Local Area Networks

About the LC Cconnector fiber optic connector
--Good durability
--Good temperature performance
--Easy installation
--Competitive price

Insertion loss	SM	≤0.20 dB
Insertion loss	MM	≤0.25dB
Return loss	P C	≥50 dB
	UPC	≥55 dB
	APC	≥65 dB
Durability	<0.20 dB typical change, 1000 mating
Ferrule hole sizes	SM: 125.0+1/-0um	concentricity:≤1.0um
	125.5+1/-0um	≤1.0um
	126.0+1/-0um	≤1.0um
	MM:125 um	concentricity:1≤3 um
	127 um	≤3 um
	128 um	≤3 um
Operating temperature	-40~80°C
