LC-E2000 Singlemode Fiber Optic Patch Cord

Name: LC-E2000 Singlemode Fiber Optic Patch Cord
Brand: all-electronics-online.com
SKU: 723107635
Availability: InStock
Rating: 5 (121 reviews)

Price:	US $ 8.2/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LC-E2000-SM-DX
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Singlemode Or Multimode:	Simplex or Duplex
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	E2000

Product Description

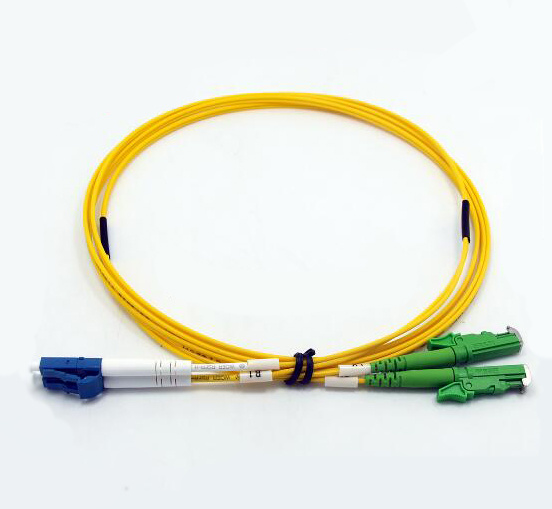

Fiber Optic Patch Cord, with LC/PC-E2000 SM Dx, Optical Fiber Jumper, Fiber optic connector 10meters

Fiber patch cord Complies with IEC, Telcordia GR-326-CORE standard
Low insertion loss and high return loss
PC/UPC/APC polishing
Diameter:0.9, 2.0, and 3.0mm
Single or multi mode is available
Simplex or duplex is available
10G fiber or LSZH cable is available
Excellent changeability and repeatability
Tensile strength:10N
Operating temperature range:-40 to 80°C
Storage temperature range:-40 to 80°C
Color of cable:Yellow (SM), Orange (MM), and Aqua (OM3)

Spec.	fiber optic patch cord
Insertion loss	Less than 0.3dB
Return loss	MM more than 35dB
	SM more than 55dB
	APC more than 60dB
Repeatability	Less than 0.2dB
Changeability	Less than 0.1dB
Operting termperature	-40~75
Storage temperature	-40~75
Tensile strength	100N
Min. bending radius	35mm
Length	Customized

Shenzhen TRT Fiber Tech. Co., Ltd is specialized in R&D, manufacturing and marketing of fiber optic such as fiber optic cable, fiber optic patch cord/jumper, fiber pigtail, fiber connector, fiber adapter, fiber attenuator, fiber patch panel, ODF, fiber splice closure and other related fiber products.

With a powerful R&D team, TRT Fiber is able to manufacture products according to customer's specifications and requests, even with customized raw materials. We not only offer OEM service, but also help many partners from all over the world to win in the market with professional technical support, excellent product solution, competitive prices, fast delivery and good service. We ensure every piece of our fiber optic products is with excellent performance and appearance.

TRT has been putting a lot of investments to keep pace with fiber optic industry standard. With high quality raw materials, advanced manufacturing equipments and highly skilled workers, we ensure every piece of our fiber optic products is with excellent performance and appearance.

Welcome to be TRT business partners, we are sure to bring you more profits. Thank you.
