| Prod Model: |
LC-PC-SM-9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connector Boots Diameter: |
0.9mm |
| Fiber Count: |
Simplex |
| Connector Ferrule: |
Ceramic |
| Shell Color: |
White/Green |
| Ferrule Diameter: |
1.25mm |
| Coupling Type: |
Snap |
| Structure: |
LC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
| Application: |
Fiber Optic Network Connection |
| Connector Type: |
LC-PC |
| Brand: |
HNK or OEM |
Product Description
Fiber Optic Connectors are an important component in a fiber optic network; they are used on
a fiber optic patch cord or pigtail with an adaptor to make connections. In order to achieve
accurate and precise connections of the fiber ends, very high quality ceramic components are
used. Fiber optic connectors made with precision and high quality ceramic components provide
a high reliability connection when used with the various adapters. We make sure that every
connector that leaves our production is tested and performs as per the international standards.
LC Fiber Optic Connector was the first small form factor connector on the market. The use of a
high performance 1.25mm ferrule gives the connector extremely high performance characteristics.

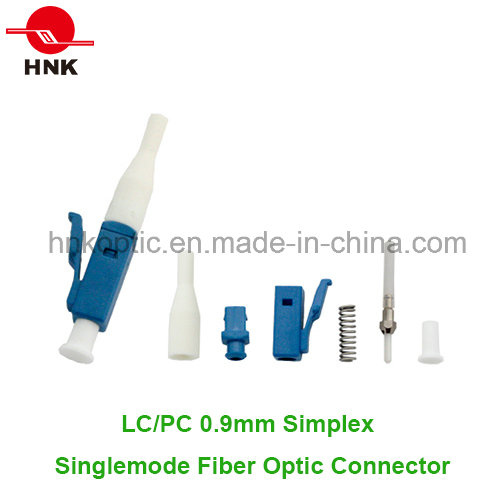

LC Fiber Optic connector is comprised of a Polymer body and a Ceramic ferrule/spring/crimp barrel
assembly plus a crimp over sleeve and rubber boot. This connector is suitable for 900μm, 2 and
3mm cable. The connector is precision made and manufactured to demanding specications. The
combination of a Ceramic ferrule with polymer housing provides consistent long-term mechanical
and optical performance.
The LC has been designed to meet the need for a small optical fiber connector that uses half the
space of the SC connector. It features a latched lever mechanism to provide secure ma-ting into
the adaptor. The duplex version which is two simplex connectors with a clip, plugs into an adaptor
with the same footprint as the SC connector.
Standards Compliance
Complies with IEC 61754-20 and TIA 604-10-A
RoHS, REACH SvHC compliant
Features
. High quality ceramic components and Material
. End-face geometry requirement complies to Telcordia GR-326-CORE
. 100% tested on optical performance (Insertion Loss & Return Loss)
. Simplex, duplex and higher core densities
. 900 micron, 2mm, 3mm cable applications
Specifications
| Ferrule Diameter | 1.25mm |
| Shell Color | Blue (SM/PC), Green(SM/APC), Beige (MM) |
| 2mm or 3mm Boot Color | White/Green |
| 900μm Boot Color | White/Green |
| Shell Connector versions available for | 2mm Cable, 900μm Buffered Fiber, Simplex & Duplex |
| Shell Tensile Strength Cable retention | >50N for 2 mm boot versions |
| >98N for 3mm & 0.9mm |
| Coupling Type | Snap |
Design & Materials
| Connector Ferrule | Ceramic |
| Alignment Sleeve | Ceramic |
| Connector Body | UL 94V-0 rated Thermoplastic
to meet standard ammability ratings |
| Crimp Insert/Crimp Tube | Nickel-Plated Brass/Thermoplastic
Elastomer Polymer |
| Dust Cap | Nylon or PVC |
| Strain Relief Boot | Flame retardant (UL-Rated 94-V0) polymer |
| Connector Style | SC, FC, ST, LC, MTRJ, |
| Polish | PC, UPC, APC |
| Capillary Diameter Tolerance | 126 ± 0.5μm(Single Mode), 127 ± 0.5μm (Multimode) |
| Ferrule Diameter | 2.5 ± 0.001mm(FC,SC,ST),
1.25± 0.001mm (LC) |
Environmental & Mechanical Data
| Operating Temperature | -40 to +85º C |
| Storage Temperature | -40 to +85º C |
| Temperature Cycling (61300-2-18) | -40 to +75º C, 40 cycles=0.2dB change |
| High Temperature (61300-2-18) | 70c for 96Hrs, <0.4dB change |
| Damp Heat(61300-2-19) | 40º C at 93%RH for 96 Hrs, <0.4dB change |
| Vibration-Mated Pair (61300-2-1) | 10-55Hz, 1.5mm P to P <0.2dB change |
| Mating Durability (61300-2-2) | 500 Mating Cycles, clean every 25, <0.2dB change |
Optical Performance Data
| Item | Single mode | Multimode |
| PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G |
Insert Loss/connector
(single Fiber) | 0.3dB Max. (0.2dB typ.) | 0.3dB Max. (0.2dB typ.) |
| Return Loss | ≥45 dB | ≥50 dB | ≥60 dB | PC≥35dB |
| Insert Loss/MTRJ Connector | 0.5dB Max. (0.45dB typ.) | 0.5dB Max. (0.45dB typ.) |
| Pull Strength | ≥98N | ≥98N |
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number: SCN-AA-BB-CD
Ordering Guide
| AA | BB | C | D |
| Connector Type | Connector Boots
diameter | Fiber count | Mode |
| FP,SP,SA,LP | 20=2.0mm
30=3.0mm
09=0.9mm | SX=Simplex
DX=Duplex | SM=Singlemode PC
MM=Multimode PC
APC=Singlemode APC |
Connector Type Code
| FP | FC/PC, FC/UPC | FA | FC/APC | MU | MU |
| SP | SC/PC, SC/UPC | SA | SC/APC | MT | MTRJ |
| TP | ST/PC, ST/UPC | TA | ST/APC | DN | DIN |
| LP | LC/PC, LC/UPC | LA | LC/APC | E2 | E2000 |
Ordering Sample
| Part Number | Description |
| SCN-LP30DXMM | LC/PC 3.0mm Duplex Multimode Fiber Optic Connector. |
| SCN-LA09SXSM | LC/APC 0.9mm Simplex Singlemode Fiber Optic Connector. |
