Product Description

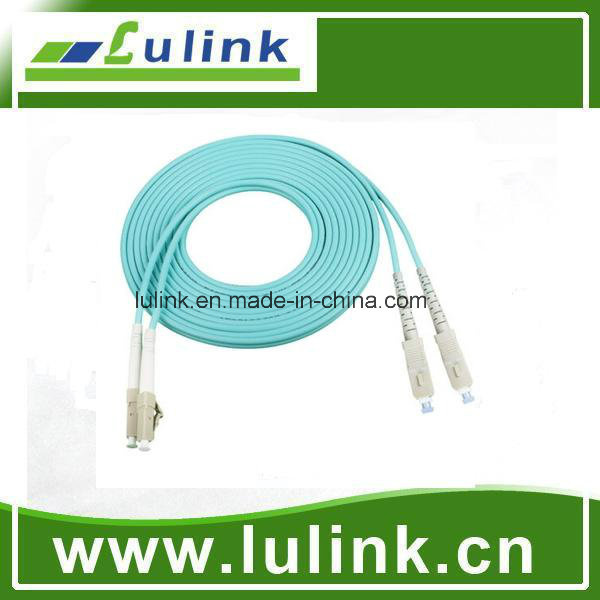

LC/PC-SC/PC Duplex Fiber Optic Duplex Patch Cable
OM3 Multimode 50/125μm
OD3.0mm
Insert loss <0.25dB, return loss≥35dB
LSZH aqua color jacket
Polarity: A-TO-B, B-TO-A
Cable length: 1m, 2m, 3m, 5m, 10m, 15m.
Description:
The LC connectors used are small form-factor fiber optic connectors resembling miniature SC connectors with high quality 1.25mm zirconia ferrules and push-pull latching mechanism. They are fully compatible with existing LC hardware.
In addition to basic testing, some mechanical and environmental tests per IEC or Telcordia are also performed periodically to guarantee the best quality. For standard patch cords, sampling check is performed on ferrule geometry to ensure high percentage of polished connectors meeting GR-326 requirements. For premium grade, ferrule geometry is tested on all patch cords to meet these GR-326 requirements.
Other than standard single mode and multimode fibers, G655, OM2, and OM3 fibers are also available upon request. Flame retardant grade cable sheathing options are offered. Riser rated cable will be provided as standard. LSZH and Plenum can be provided upon request.
Features:
Push-pull latching mechanism
Non-optical disconnect performance
High quality zirconia ferrules
Materials meet RoHS requirements
Riser, Plenum, and LSZH cables available
Applications:
Telecommunication
Computer networks
CATV networks
Active device termination
Instrumentation
Specifications:
| Characteristics | Unit | Value/Performance | Comments |
| | | Multimode | |
| PC |
| Basic |
| Insertion Loss (IL) | dB | <0.25 | IEC 61300-3-4 |
Return Loss (RL) |
dB |
>35 |
IEC 61300-3-6 |
Endurance |
dB |
IL<0.2 | IEC 61300-2-2, coupling and uncoupling 500 cycles, clean every 25 cycles |
| Operating Temperature | °C | -20 ~ +70 | |
| Storage Temperature | °C | -40 ~ +70 | |
| Mechanical |
| Drop | dB | IL<0.2 | IEC 61300-2-12, 1.5m, 5 drops, no damage |
Vibration |
dB |
IL<0.2 | IEC 61300-2-1, 10-55Hz, 0.75mm amplitude, 0.5 hrs/axis |
Flex |
dB |
IL<0.2 | Telcordia GR326(4.4.3.2), 0.9kg, +90°, 100cycles, for 2mm or larger cable |
Twist |
dB |
IL<0.2 | Telcordia GR326(4.4.3.3), 1.35kg load, +2.5 turns, 10 cycles, for 2mm or larger cable |
Pull Proof |
dB |
IL<0.2 | Telcordia GR326(4.4.3.4), 3.4kg at 90°, 6.8kg at 0°, for 2mm or larger cable |
| Coupling strength | dB | IL<0.2 | IEC 61300-2-6, 4.2kg, 2min |
| Static Bending | dB | IL<0.2 | IEC 794-1-2, 60mm diameter 10 turns |
Crushing |
dB |
IL<0.2 | IEC 794-1-2, 102kg for 2mm or larger cable, 10.2kg for 900m cable |
| Environmental |
| Cold | dB | IL<0.2 | IEC 61300-2-17, -20°C, 96 hrs |
| Dry Heat | dB | IL<0.2 | IEC 61300-2-18, 70°C, 96 hrs |
| Damp Heat | dB | IL<0.2 | IEC 61300-2-19, 40°C, 95%RH, 96 hrs |
| Transmission |
| Characteristics | Unit | OM3 |
Max. Attenuation | dB/km
(nm) | 3.25 (850) |
Min. Bandwidth | MHz•km
(nm) | 2000 (850) |
Dispersion Coefficient | ps/
nm2•km |
- |
