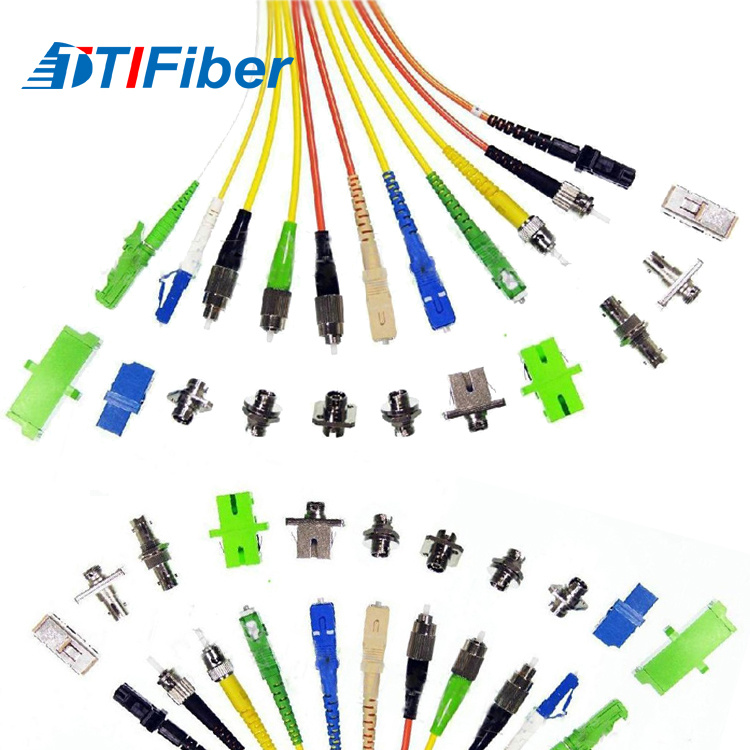

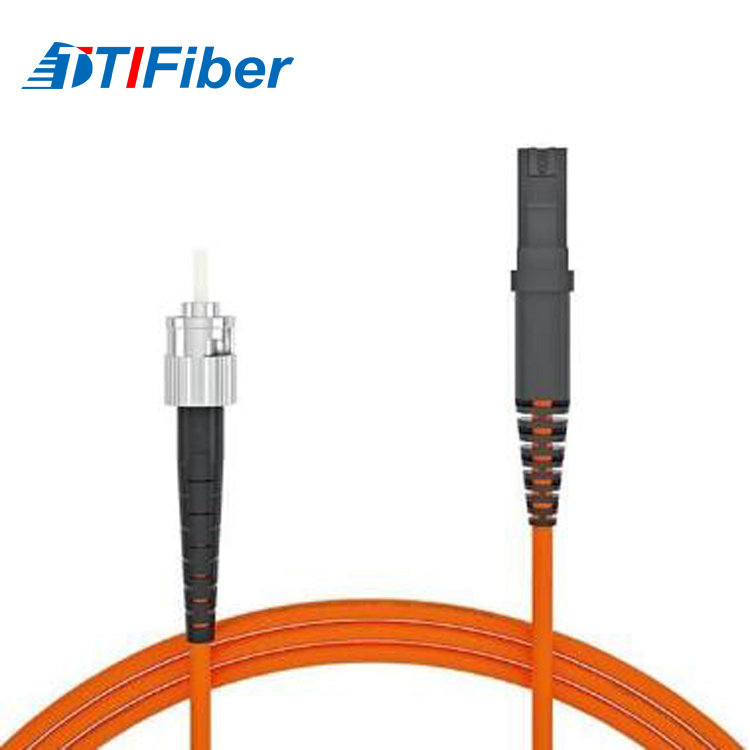

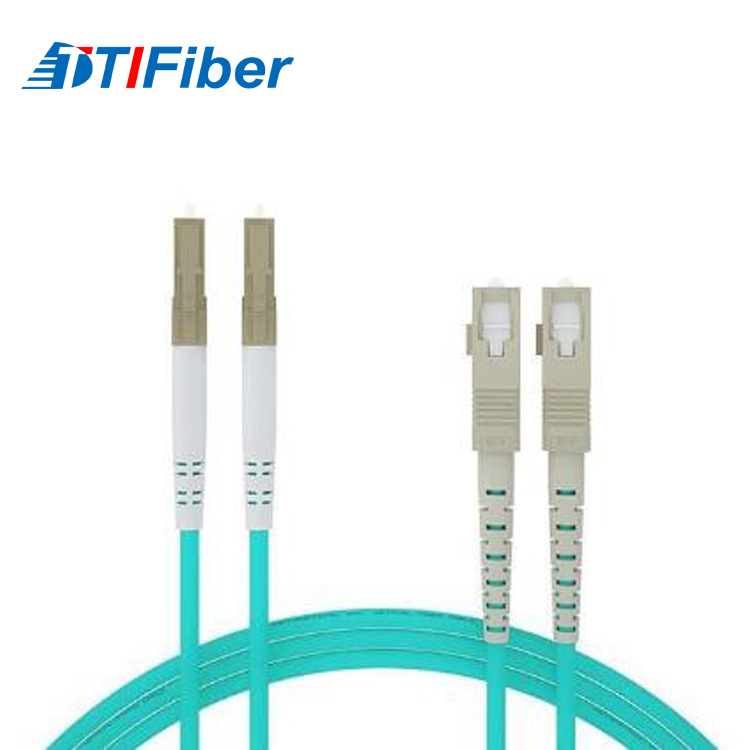

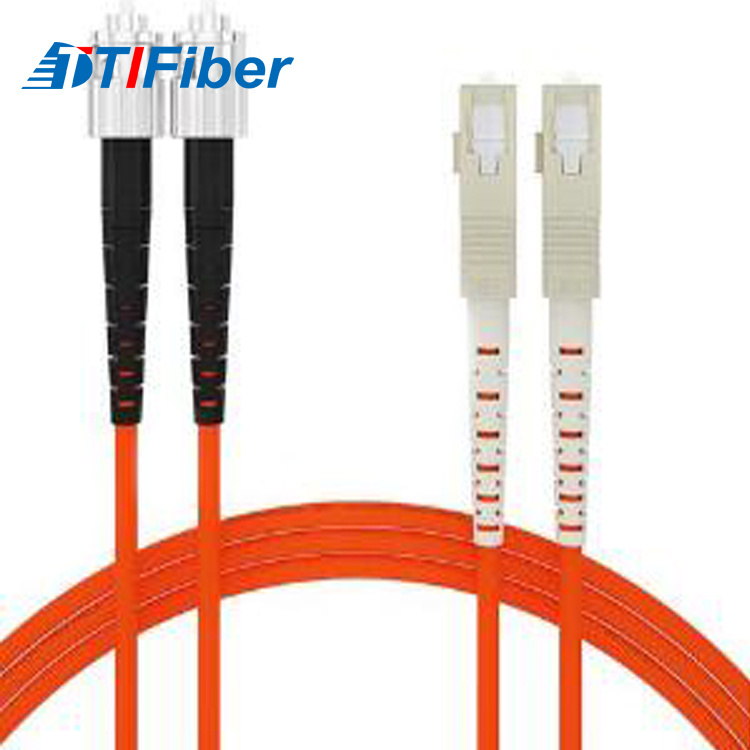

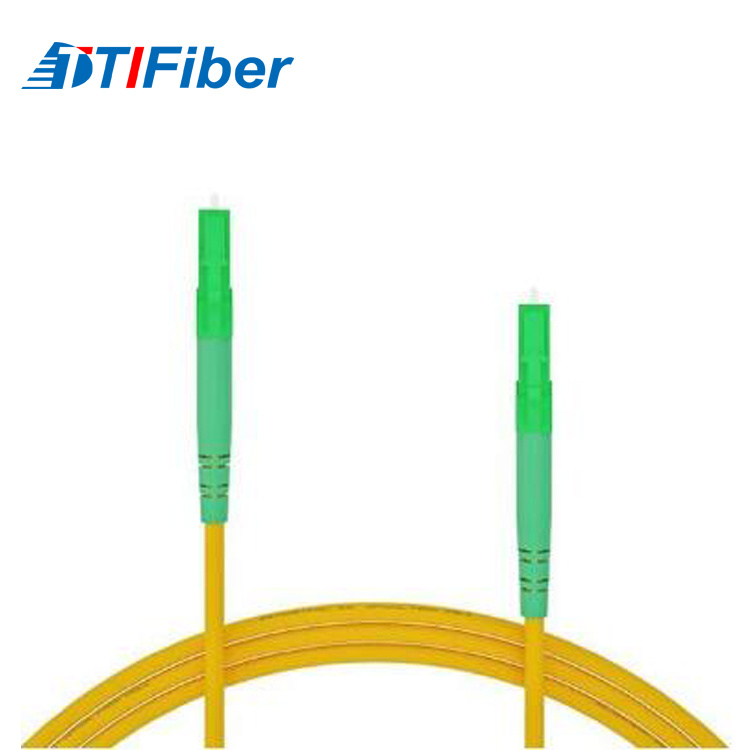

LC/Sc/FC/St/Mu/MTRJ/E2000 PC/Upc/APC Singlemode Multimode Simplex Duplex Fiber Optic Patch Cord

Certification:	ISO9001
Type:	Sm or mm
Sheath Material:	PVC or LSZH

Product Description

MANY HIGH QUALITY WITH LOWER PRICE IS MADE, MOST OF OUR CUSTOMERS WILL PLACE REPEAT ORDERS TO US!

Product Description

Optical Fiber Cable Features
1. PC, UPC, APC polished
2. Male, female optional(For MPO MTRJ)
3. High return loss, low insertion loss
4. High reliability, high temperature stability
5. Good exchangeability
6. Push pull structure, compact size, dense type

Optical Fiber Cable Applications
* CATV, Metro, Test equipment
* Telecommunication networks
* Wide Area networks(WANS)
* Data processing networks
* Local area netwirks(LANS)
* Premise installations

Fiber Optic Patch Cord Technical Standard:
Insertion Loss: PC≤0.3dB, UPC≤0.3dB, APC≤0.3dB ;
Return Loss: SM PC≥50dB, UPC≥55dB, APC≥60dB; MM PC≥35dB, UPC≥35dB
Interchangeability: ≤0.2dB
Salt Spray : ≤0.2dB
Repeatability : (1000 times) ≤0.1dB
Vibration: (550Hz 1.5mm) ≤0.1dB
High Temperature : ( +85 sustain 100 hours) ≤0.2dB
Low Temperature : (-40 sustain 100 hours) ≤0.2dB
Temperature Circularly: (-40+80 sustain 100 hours) ≤0.2dB
Humidity : (+25+65 93 R.H.100 hours) ≤0.2db
Apex Offset: 0μm≤≤50μm
Radius of Curvature: 7mm≤≤25mm
Cable TypeSimplex, Duplex, Fan-Out;
Technical parameter



Characteristic	SM , MM
Connector type	FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000
Diameter(mm)	0.9,2.0,3.0
Polishing grade	SM PC	MM PC	UPC	APC
Insertion loss	≤0.3dB	≤0.3dB	≤0.3dB	≤0.3dB
Return loss	≥40dB		≥55dB	≥60dB
Interchangeability	≤0.2dB
Repeatability	≤0.2dB
Operation temperature	-40~+80



WYH CHOOSE US
l  Any inquiries or questions will be replied within 24 hours.
l  Professional manufacture with 10 years production experience. Welcome to visit our website:www.ttifiber.com
l  China factory OEM/ODM available
l  High quality, reasonable& competitive price, fast lead time
l  After-sale service: All the products will have been 100% full test before shipping, also with 2 years warranty.
l  Fast delivery: samples order within 1 day, and 3-7 days for bulk orders.
l  Payment: You can pay us via: T/T, Western Union, Paypal, or others.
l  Shipping: By express: UPS,DHL,FexEx,TNT,EMS…;By air; By sea; Or you also can choose your own shipping forwarder.
