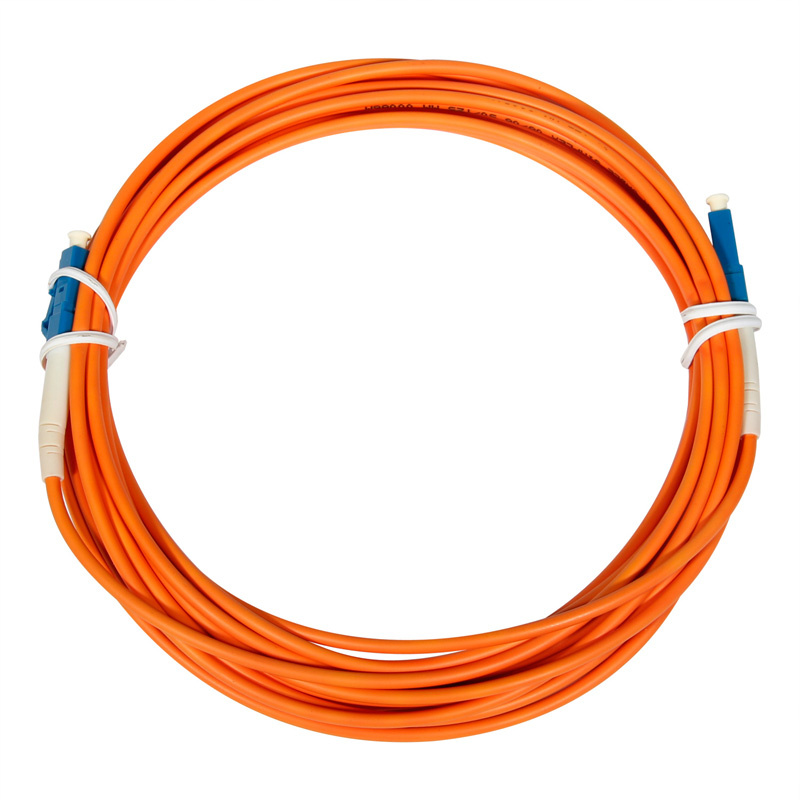

LC Sc PC Fiber Optic Patch Cord

LC Sc PC Fiber Optic Patch Cord
Price: US $ 0.2/Meter
Min Order: 1000/Meter
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: Patch Cord
Structure: SC
Number Of Cores: Single-Core
Transmission Medium: Single Mode/Multi Mode
Ferrule Endface: Upc/APC

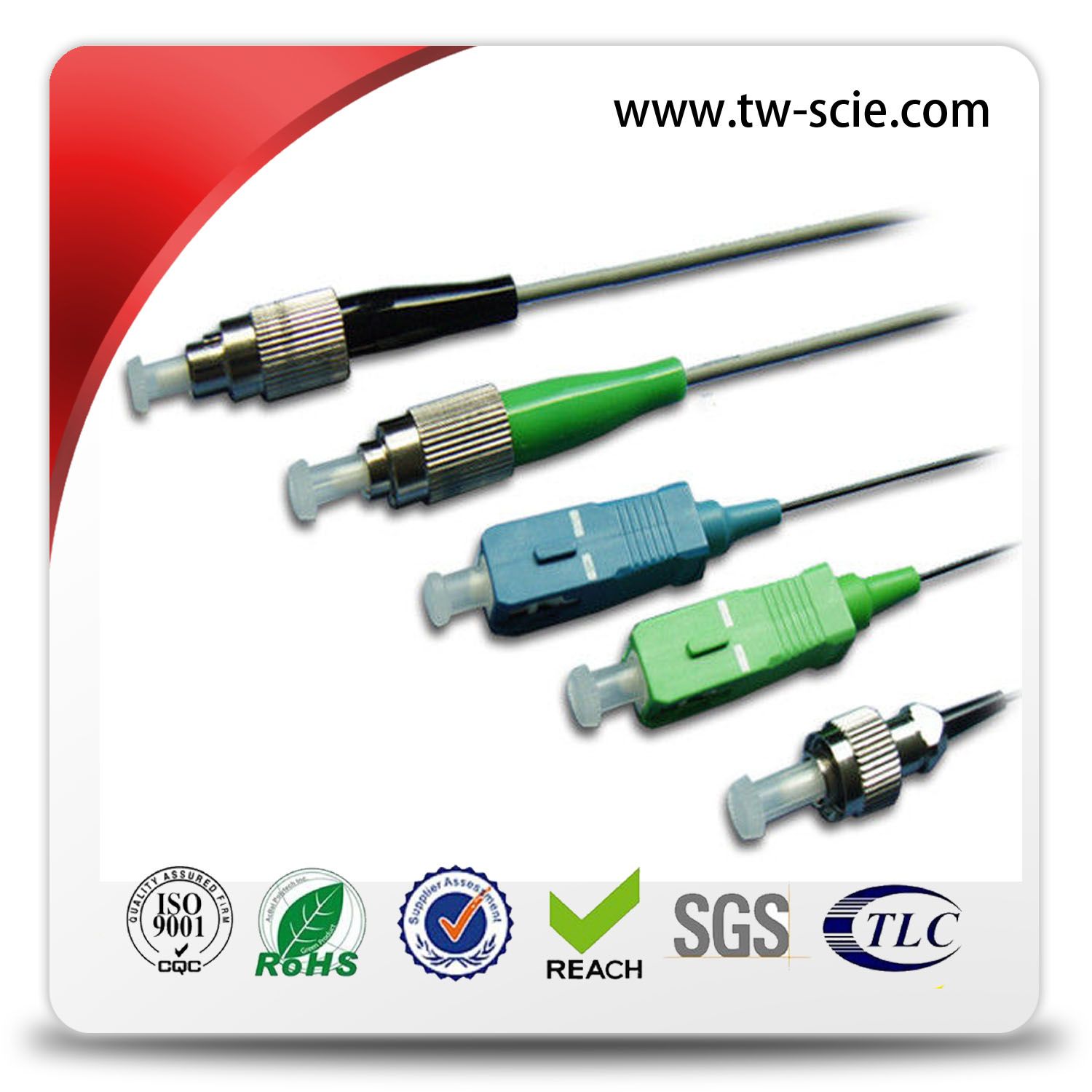

Connector Type: FC, Sc, St, LC, Mu, MTRJ, DIN, MPO
Brand: OEM or Tw-Scie

Product Description

LC Sc PC Fiber Optic Patch Cord

Quick Details:

  1. Type: ST/SC/FC/LC/MUJI...
  2. Mode: SM/MM
  3. Ferrule End-face: UPC, APC
  4. Material: Plastic, ABS
  5. Cable inside diameter: 0.9mm, 2.0mm, 3.0mm

Features:

  1. Pluggable structure, easy to intensive-installation
  2. Low insertion loss and high return loss

Applications:

  1. Optical access network
  2. Data processing networks
  3. Fiber optic communication networks
  4. CATV, LAN, WAN, Test &Measurement
  5. Telecommunication networks

Specification:

ParameterSingle ModeMulti Mode
BasicFiber connectorFC, SC, LC, ST, MU, MTRJ, MPO, E2000
Ferrule End-facePCUPCAPCUPC
Insertion Loss≤0.2dB≤0.2dB≤0.3dB≤0.3bB
Return Loss≥50dB≥55dB≥60dB≥35dB
Ceramic Ferrule Specification125.5um concentricity deviations:<=1um127um concentricity deviations:<=3um
Suitable Fiber9/125um50/125um,62.5/125um
End-face GeometryRadius of Curvature7~25mm5~12mmN/A
Fiber Protrusion≤50nm≤100nmN/A
Fiber Under Cut≤100nm≤100nmN/A
Apex offset≤50um
MechanicalExchangeability≤0.2dB
Salt Spray≤0.1dB
Drop≤0.2dB(1.5M, 5 drops)
VibrationIL ≤0.2dB(550Hz, 1.5mm)
Repeatability≤ 0.1dB(1000 times)
Durability> 1000 times
Operating Temperature-40°C ~ +85°C



Packing:

One piece per PE bag with stick label (we could add customer's logo in the label.)

Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

    Patch cord price list SC fiber optic patch cord Simplex Singlemode 3.0mm

    Patch Cord Sc-Sc with G657A1 Fiber Optic Simplex 3.0mm
    Patch Cord Sc-Sc with G657A1 Fiber Optic Simplex 3.0mm
    Patch Cord Sc-Sc with G657A1 Fiber Optic Simplex 3.0mm
    Patch Cord Sc-Sc with G657A1 Fiber Optic Simplex 3.0mm

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
