LC Single and Multi Mode Duplex Fiber Optic Adaptor FPC Ferrule Type

Name: LC Single and Multi Mode Duplex Fiber Optic Adaptor FPC Ferrule Type
Brand: all-electronics-online.com
SKU: 807765785
Availability: InStock
Rating: 4.6 (135 reviews)

Price:	US $ 0.45-1/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SADP-A-S-Q-S-LC-FPC-LC-FPC
Color:	Blue
Fiber Type:	Single and Multi Mode
Fiber Core:	Duplex
Ferrule Type:	FPC
Transmission Medium:	Multimode
Structure:	LC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)

Product Description

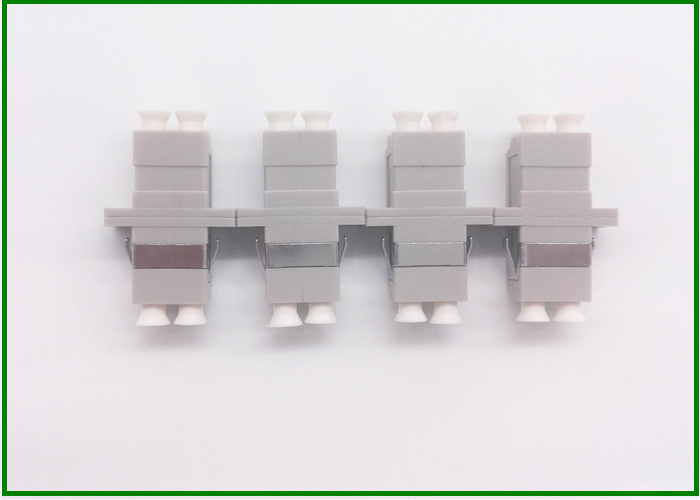

LC single and multi mode duplex optic adaptor fpc ferrule type

Product Description
Optical Fiber Adaptors
Optical Fiber Adaptors (Converters, Plug) are used to connect same or different type optical fiber connectors. The devices are designed and manufactured to meet Telcordia GR-910-CORE requirements and RoHS compliant.

Applications Features
Optical Network Wiring Low Excess Loss
Test Equipment
CATV System
Telecommunication network
FTTH/FTTX

Quick Details
Place of Origin: Wuhan, China(Mainland) Model: Simplex/Duplex/Quad
Sleeve: ceramic sleeve Leadtime: 2 weeks
Mode: single mode

Company Profile
Business type: Manufacturer
Main products: optical passive devices, including optical coupler/splitter, PLC splitter, Fused WDM,TWDM,CWDM,OADM,DWDM, isolator, circulator, patch cord, adaptor etc.

Ordering Information
SADP-A-S-Q-S-LC-FPC-LC-FPC

Config	Fiber mode	Core	Type	Housing of 1st End	Ferrell Type	Housing of 2nd End	Ferrell Type
A=Adaptor	S=Single mode	S=Simplex	S=Standard	FC	MPC= Male PC	FC	MPC= Female PC
C=Converter	M=Milt-mode	D=Duplex	F=Flange	SC	MPC= Male PC	SC	MPC= Female PC
P=Plug	/	Q=Quad	0=Oval		FAPC= Female APC		FAPC= Female APC
/			P=Pismatic	LC	FAPC= Female APC	LC	FAPC= Female APC

Specification

Parameter	Unit	Value
Connector	/	FC ST SC LC
Sleeve	/	Zirconia
Insertion Loss	dB	≤0.20 (Plug≤0.30)
Repeatability	Time	>1000

Wuhan Seifree Technology Co., Ltd is located at the Optical Valley, East Lake National High-tech Development Zone of Wuhan. It specializes in R&D, manufacturing, sales of Optical Passive Components. With the great technologies in optical research and production, Seifree gathers a number of optical talents on fiber communication, which possess the rich experience of R&D and a strong capability of technology innovation.

The product includes thin-film filter (DWDM, CWDM, Triple-play WDM), Fused Bi-Conical Taper (Coupler, WDM) and Waveguide Splitter (PLC Splitter), Micro-optics (Circulator, Isolator) Fiber optical Interconnect (Optical Jumper, Adaptor) and other components and modules of Active (CWDM SFP) and Passive.

We create a good working atmosphere, solidarity and cooperation, and build the corporate culture --Service, Excellence, Innovation, Fidelity, Reciprocity, Economical, and Development. All products are designed, manufactured and delivered to meet the requirements of Telcordia and ISO9001.

We welcome you to consider Seifree to provide the high-quality product and considerate service for meet your demands.
