SHENZHEN FIBERLINK COMMUNICATION LIMITED >> LC SM MM Fiber Optic Adapter

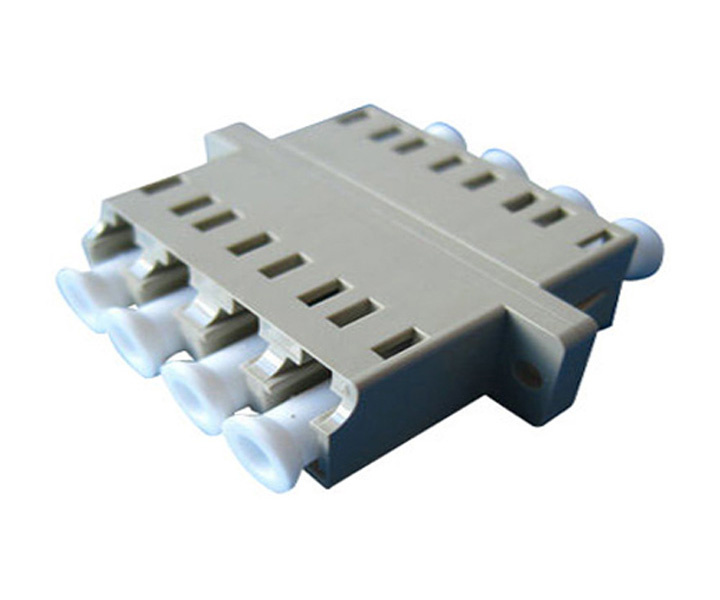

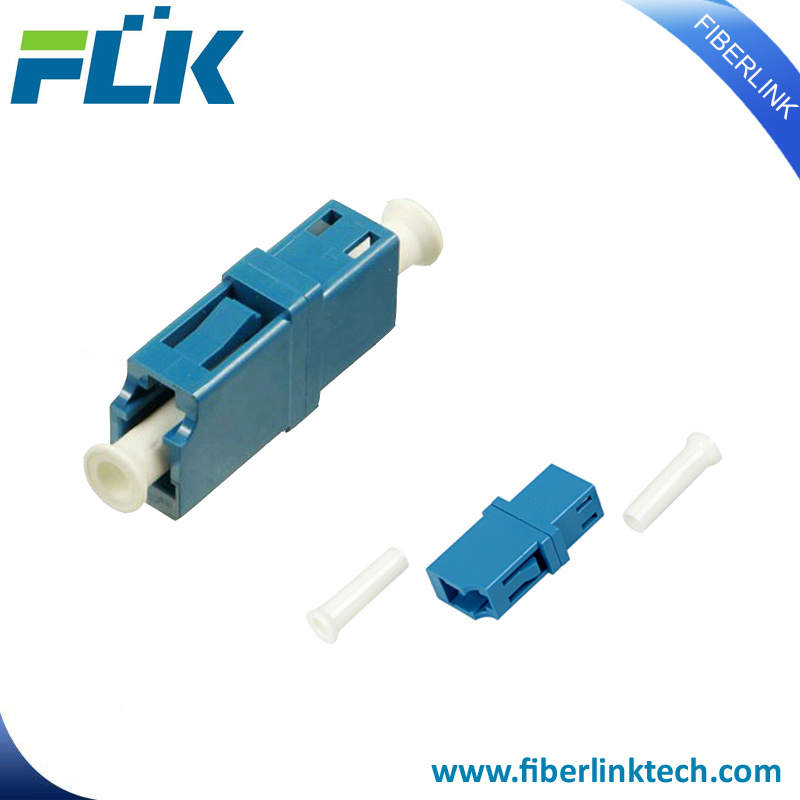

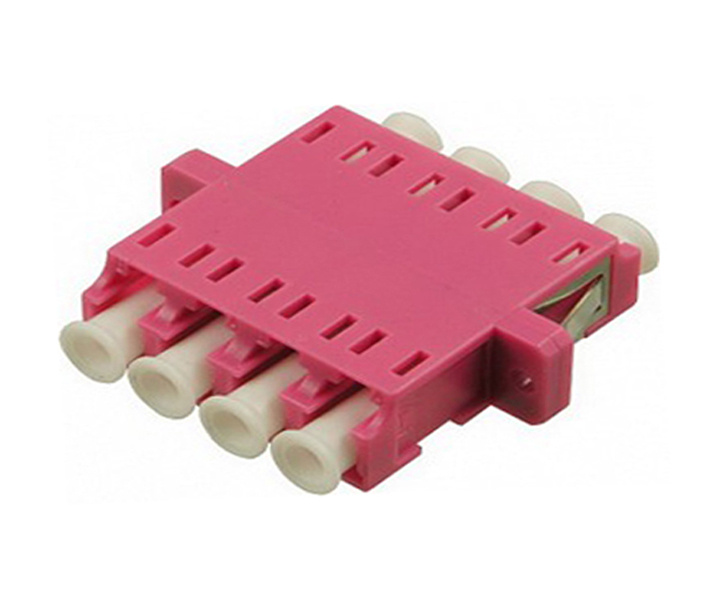

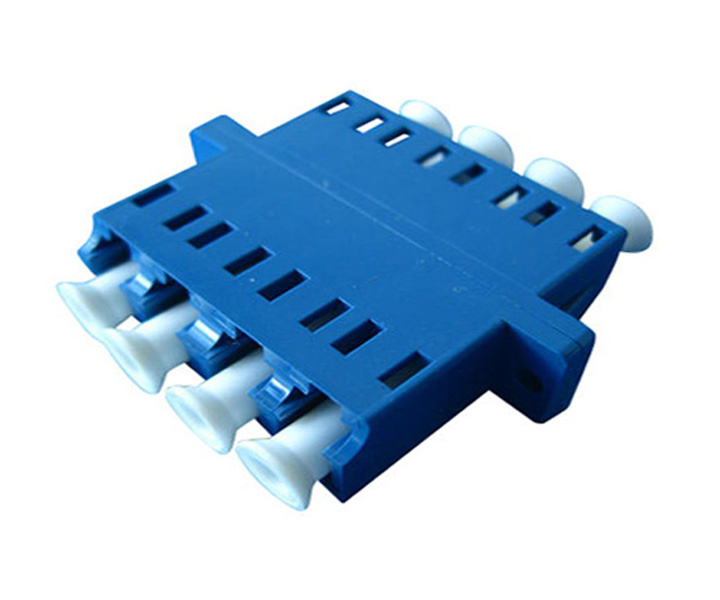

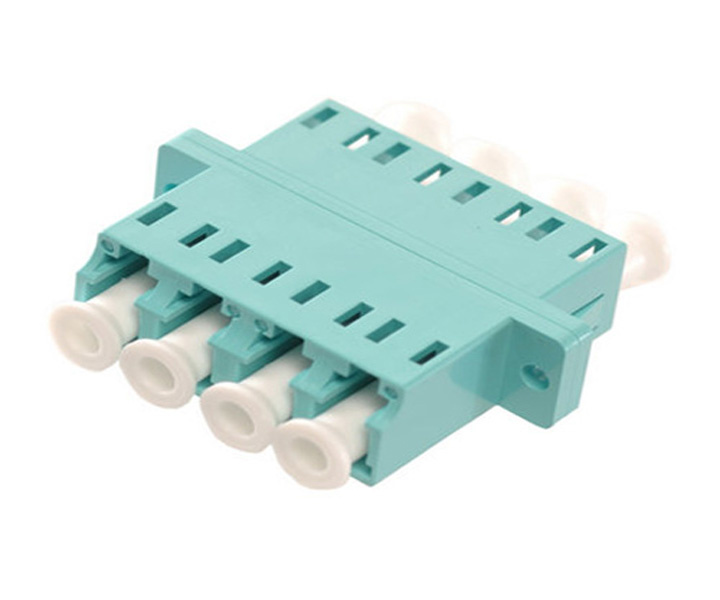

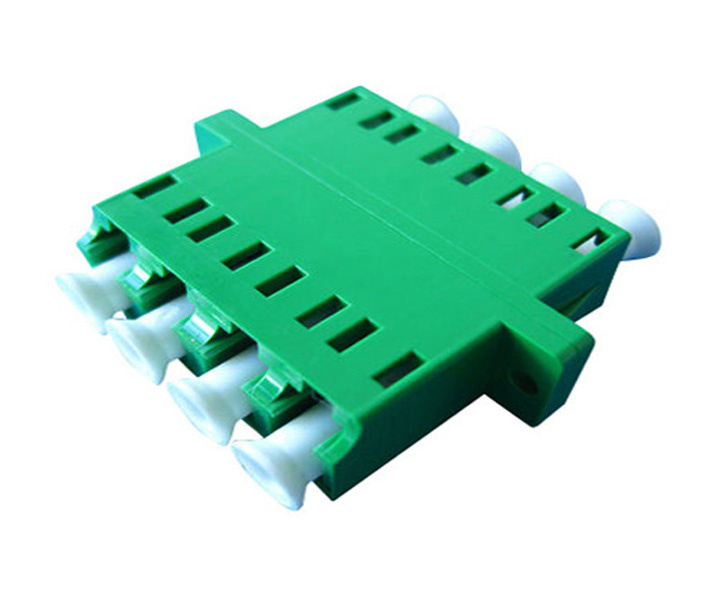

LC SM MM Fiber Optic Adapter

LC SM MM Fiber Optic Adapter
Price: US $ 1.2-3.5/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union
Prod Model: Fiber Optic Adapter
Cable Jacket Material: Plastic or Metal
Structure: LC
Transmission Medium: Single-Mode or Multi-Mode
Number Of Cores: Simplex or Duplex or Multi-Cores
Ferrule Endface: PC or APC
Application: Fiber Optic Adapter
Connector Type: LC
Brand: Fiberlink

Product Description






Descriptions
LC Fiber Optic Adaptors are comprised of a polymer outer body and inner assembly fitted with a precision alignment mechanism. LC SM or MM Optical Adapters are precision made and manufactured to demanding specifications. The combination of a ceramic/phosphor bronze alignment sleeves and precision molded polymer housing provides consistent long-term mechanical and optical performance.

Features
Excellent changeability and directivity
100% Optic test (Insertion Loss)
Ceramic and phosphor bronze sleeve tube optional
Comply with LSZH


Applications
Fiber optic transmission system
CATV networks
Testing/Measurement Instruments
Fiber distribution frame, Mounts in Fiber Optic Wall Mount and Rack Mount Cabinets


Specifications
Polish TypeUnitPCAPC
Insertion LossdB≤0.20≤0.20
Return LossdB≥50≥60
Mating Durability (500Cycles)≤0.20dB
Temperature Stability≤0.30dB
Operating Temperature-40 ~ 85ºC
Storage Temperature-40 ~ 85ºC
Our company supplies high-performance fiber optic communication system products with high quality and favorable price. Our main products are Fiber optic cable, Fiber patch cord, Fiber adapter, Fiber attenuator, FBT Coupler, PLC splitter, Fiber patch panel, Fiber termination box, Fiber distribution box, Fiber optic splice closure, MPO system and FTTH solution products, etc. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

Interconnect Products Division: Develops and manufactures fiber optic components for a diverse range of applications. The division's products include Fiber optic connectors, patch cords andadapters, attenuators, couplers, PLC splitters, circulators, and isolators.

Solution Products Division: Known for providing Fiber Optic Communication Solution in the world, the Solution Products division focused on fiber accessories and systems, such as Fiber patch panel, Fiber termination box, Fiber distribution enclosure, Fiber optic splice closure, MPO system andFTTH solution products, etc.

OEM Products Division: OEM Products division provides OEM services to our clients by not only complete customers' requirements but also give active suggestions to improve the products' performance and quality. This division's main mission is to help customers stay competitive by constant innovation service.
