LC1-D 9A to 95A Telemecanique Contactor AC Contactor

Name: LC1-D 9A to 95A Telemecanique Contactor AC Contactor
Brand: all-electronics-online.com
SKU: 606887744
Availability: InStock
Rating: 4.4 (101 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LC1-D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Professional Manufacture:	10 Years
Certificate:	CE, ISO9001
Quality Guarantees:	2 Years
Voltage:	AC220V/AC380V
Theory:	Voltage Relay
Size:	Miniature
Usage:	Start&Control AC Motor

Product Description

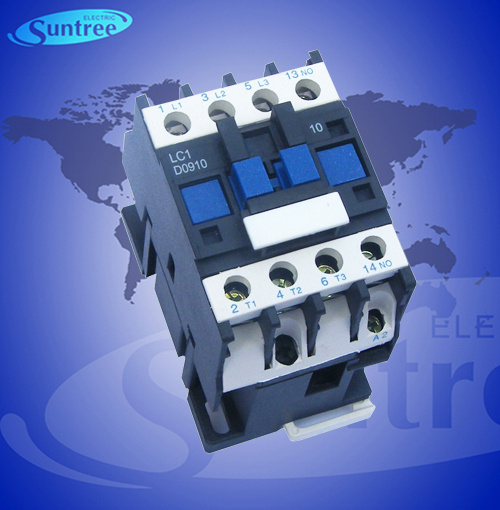

LC1-D 9A to 95A magnetic AC contactor with CE certificate 24V 48V 110V 220V 380V

1) LC1-D95 series AC Contactor is suitabie for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor.

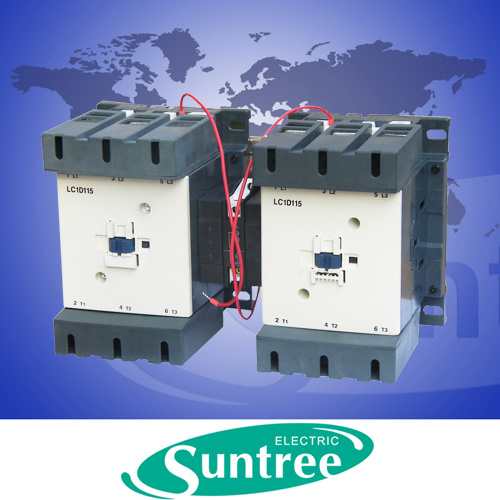

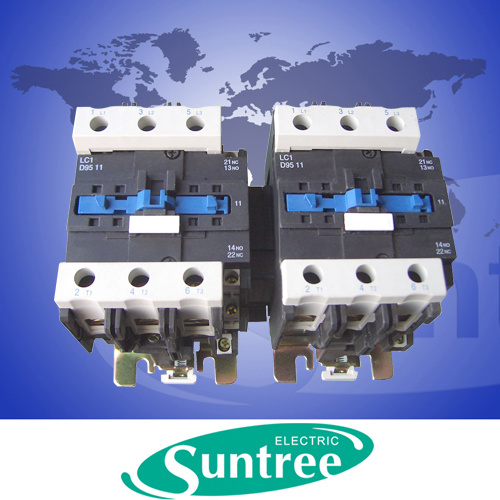

2) Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contsctor, star-delta starter.With the thermal relay, it is combined into the electromagnetic starter.The Contactor is produced according to IEC 60947-4, GB14048-4.

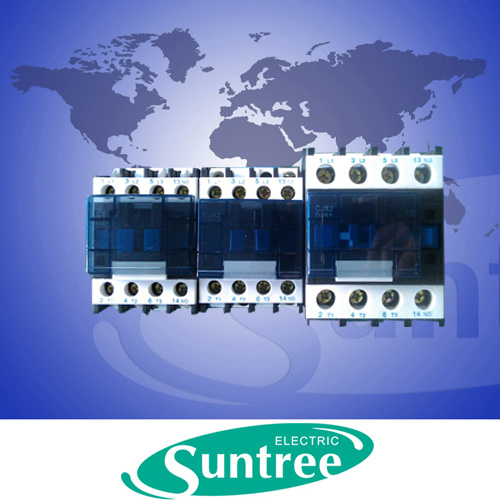

3) We supply all range Contactors, such as LC1-D, LC1-F, LC1-K, 3TB, 3TF, ect.Please contact us for further information, we are interested to develope business relationshio with you.

Volts

110

220

230

240

380

400

415

440

500

600

50Hz

60Hz

50/60Hz

Technical Data

Type		LC1-D09	LC1-D12	LC1-D18	LC1-D25	LC1-D32	LC1-D40	LC1-D50	LC1-D65	LC1-D80	LC1-D95
Rated working current (A)	AC3	9	12	18	25	32	40	50	65	80	95
Rated working current (A)	AC4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Standard power ratingsof 3-phase motors 50/60Hz in category AC-3	220/230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380/400V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	25	37	45	45
	500V	5.5	7.5	10	15	18.5	22	30	37	55	55
	660/690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Rated heat current (A)		20	20	32	40	50	60	80	80	125	125
Electrical life	AC3 (x10 4 )	100	100	100	100	80	80	60	60	60	60
Electrical life	AC4 (x10 4 )	20	20	20	20	20	15	15	15	10	10
Mechanical life (x10 4 )		1000	1000	1000	1000	800	800	800	800	600	600
Number of the contacts	3P+NO					3P+NC+NO
Number of the contacts	3P+NC					3P+NC+NO
