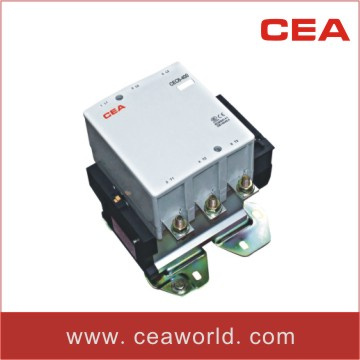

LC1-F AC Contactor

Name: LC1-F AC Contactor
Brand: all-electronics-online.com
SKU: 690367185
Availability: InStock
Rating: 4.6 (147 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CEC6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

CEC6 series AC Contactor is applicable to the circuits up to the rated voltage100VAC 50Hz or 60Hz, rated current from 115ATO 800A, for long distance breaking circuit and frequently starting or controling the motor. It also can be used for the control of distribution circuits of rated current from 200A to 1600A.

Type		CEC6-115	CEC6-150	CEC6-185	CEC6-225	CEC6-265	CEC6-330
Rated Operating Current(A)	AC-3	115	150	185	225	265	330
Rated Operating Current(A)	AC-1	200	250	275	315	350	400
Standard Power Ratings of 3-phase Motors AC-3(KW)	220V/230V	30	40	55	63	75	100
	380/400V	55	75	90	110	132	160
	415V	59	80	100	110	140	180
	400V	59	80	100	110	140	200
	500V	75	90	110	129	160	200
	660/690V	80	100	110	129	160	200
	1000V	65	65	100	100	147	160

Type		CEC6-400	CEC6-500	CEC6-630	CEC6-780	CEC6-800
Rated Operating Current(A)	AC-3	400	500	630	780	800
Rated Operating Current(A)	AC-1	500	700	1000	1500	1500
Standard Power Ratings of 3-phase Motors AC-3(KW)	220/230V	110	147	200	220	220
	380/400V	200	250	335	400	400
	415V	200	280	375	425	420
	440V	250	295	400	425	420
	500V	257	355	400	450	430
	660/690V	280	335	450	475	470
	1000V	185	I335	450	450	450

Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.

The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.

Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.

Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
