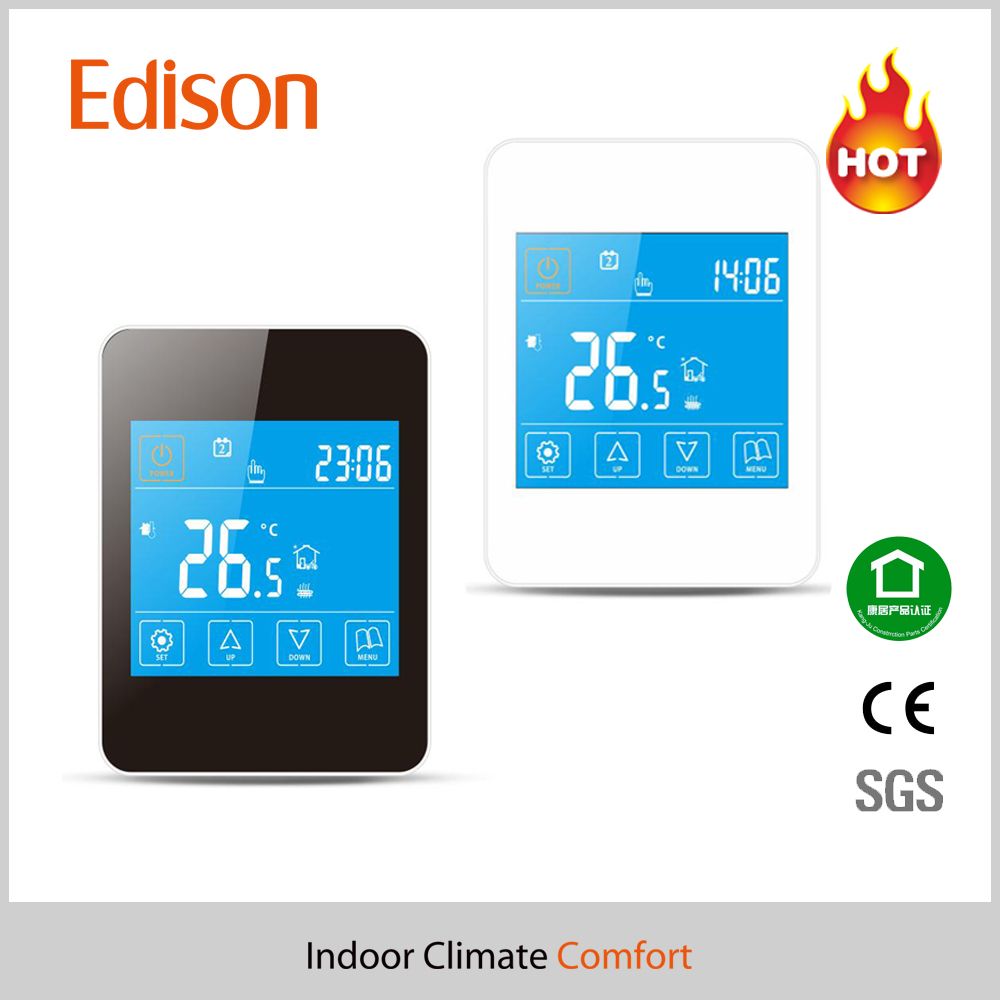

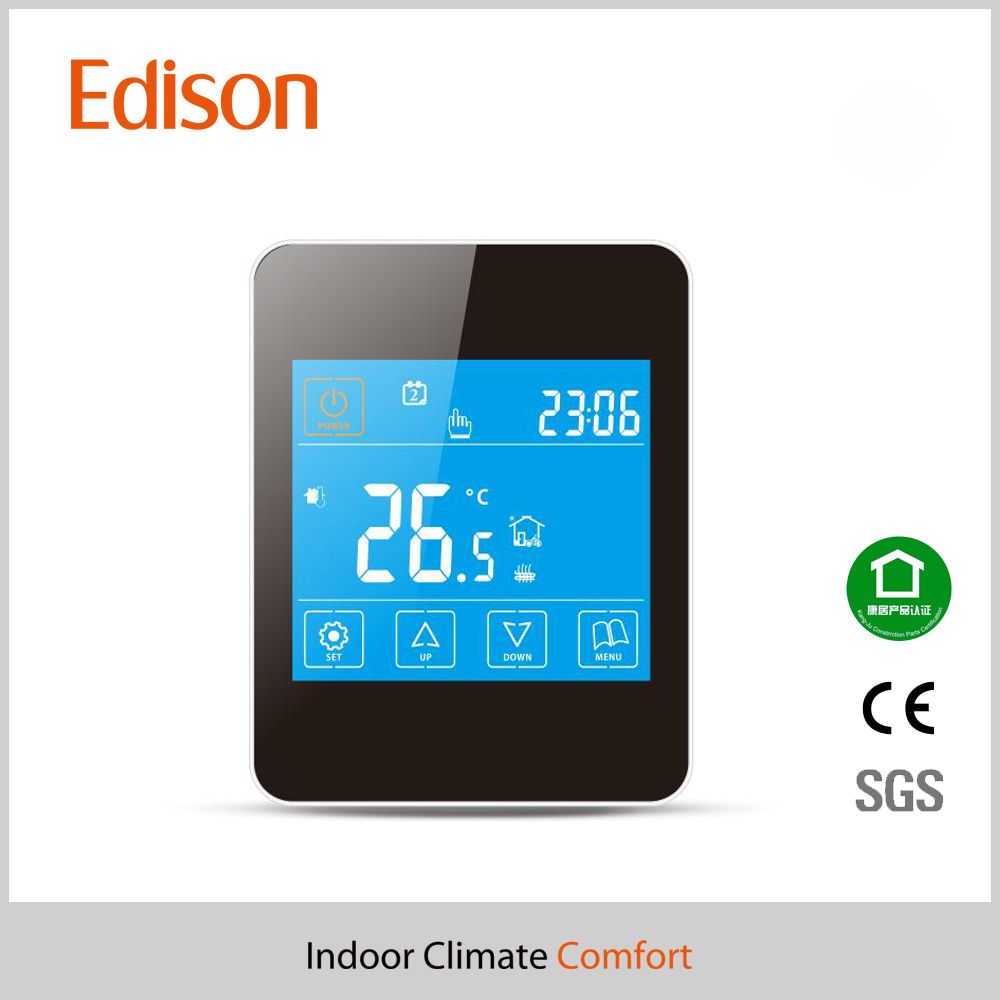

LCD Touch Screen Heating Room Temperature Thermostat (TX-928H)

LCD Touch Screen Heating Room Temperature Thermostat (TX-928H)
Price: Negotiable/Piece
Min Order: 300/Piece
Pay Type: T/T
Prod Model: TX-928H
Voltage: 220V
Color: White/Black Surface
Application: Manifold, Boiler, Water Heater, Electric Heater
LCD: Touch Screen with Blue Backlight Display
Current: 3A/20A
Guarantee: 18 Months

Product Description



LCD touch screen heating room temperature thermostat for water / electric heating system(TX-928H)

Professional smart temperature controller room thermostats manufacturer
TX-928H LCD touch screen heating room thermostat is avalaible for water / electric heating system with 7-day, 6-period time program control.
Models are with NTC sensor to detect ambient and floor temperature and do the control compared with the setting one. Manual, time program and temporary mode can be switch any time by press the relevant keys. De-frost protection function will be active when ambient temperature below 5celsius,Prevent water pipe from freezing and burning.

Features:
1.Touch screen LCD display with blue backlight
2.7-day,6-period time program
3.On/off output for valve or electric devices
4.Manual, time program and temporary mode
5.De-frost protection
6.Double sensor to control and limit the temp
7.Key-lock function
8.Memory function: Memory condition after on/ off
8.Mounted onto standard 86*86mm junction box
7.Power Supply: 95VAC-240VAC
8.Dry contact function:is optional


Technical data:
Mode TX-928H Heating room temperature thermostat
ApplicationManifold, boiler, water heater, electric heater
TypeUnderfloor heating
Power Supply95VAC-240VAC
Consumption< 2W
Control typeOn/off control
Temp. SensorNTC 10K 25 °C
Temp. limitation5-60°C (default 35°C)
Switch deviation bandwidth seting1-5°C/0.5 °C per step
Ambient0-60 °C
InstallationVertical
Shell MaterialABS Flameproof Plastic
Protection gradeIP20
AppearanceWhite/Black Surface
Energy savingSleeping function and time programmable
Switch current ratingWater heating: ≤3A ; Electric Heating: ≤20A
On /off differential temp.0.5°C~5°C
Transport and storage temp.-20°C~60°C
Ambient conditions0-90°C,Humidity:<95percent
Set point range/Setting unit5-35°C/0.5°C  per step
Wiring port≤1.5mm2
Accuracy±1°C
De-frost protectionOn/off by advanced setting
Workdays time program switching5/6/7 workdays setting,or turn off the time program
Sensor selectionBuilt-in or out or double is choiced by advanced setting
Dry contact function output delay0-5mins
Highest/lowest setpoint(temp.) limit setting5-90°C/ 1°C per step
Recover factory settingAvailable by advanced setting
Dimension86mm*110mm*12mm
CertificationCE (EMC LVD)

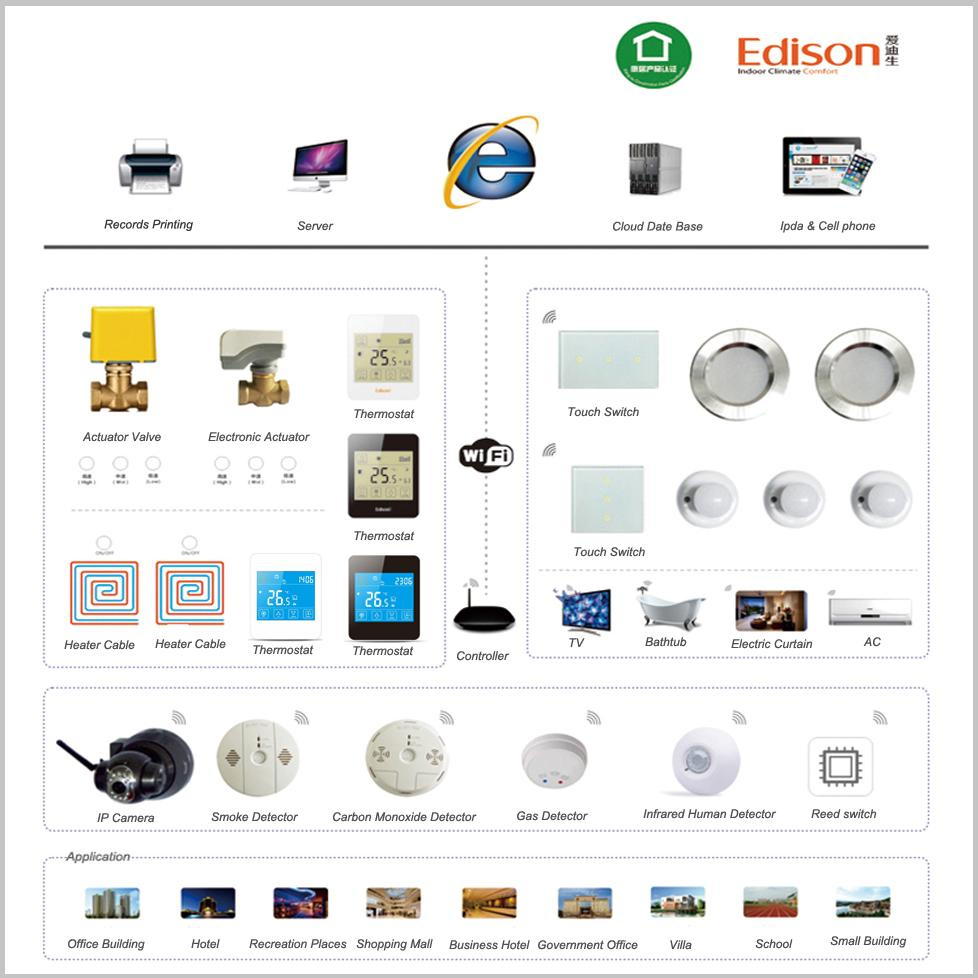

TX-928H LCD Touch Screen Heating Room Temperature Thermostat is applicated in smart home system :


CE Certification:



About US

Company Introduction

Zhuhai Edison Smart Home Co., Ltd.(Stock Code: 837831) is a wholly owned subsidiary of Guangzhou Seagull Kitchen and Bath Products Co., Ltd (Stock Code: 002084).

Edison is devoting to R & D to manufacture and trade for room thermostats and valves series in the heating control, AC Control and smart home control products, which has obtained more than 40 invention patents and utility patents in the field of HVAC control and wifi, zigbee wireless technology, and achieved related professional certifications in Europe, America, Australia and other countries.

Edison adhering to steady development -- "be honest, hardworking, loving and do not take shortcuts". The freedom to chase our individual dream through our sweat, toil, imagination and creativity. And the imperative to strive together as well, to achieve a common good, a great good with our customers and suppliers.

Edison Focus on " Comfort and Energy Conservation"

TECHNOLOGY & QUALITY
High Quality Originates from High Standards.

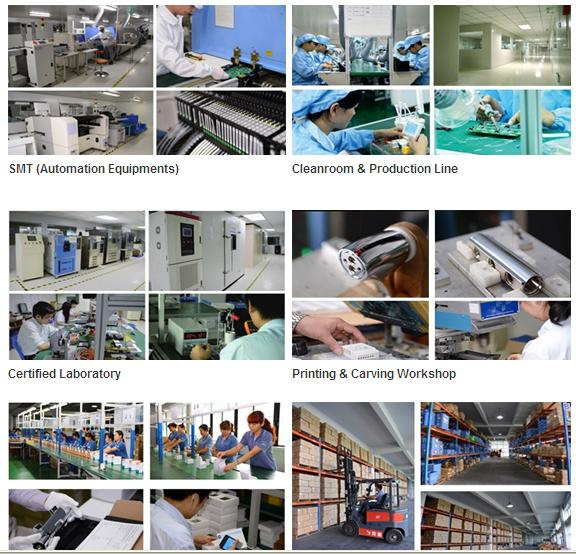

From raw material forming, brass casting, forging, zinc die casting, CNC machining, plating, calibration, SMT and electronic products assembling in a Class 100,000 cleanroom, Edison has full range of European industrial standard production processes in house, and we are aiming to provide competitive quality products with 100% on time in full delivery service



OEM /ODM order can be available

Edison has a strong design and R&D team and would like to undertake customized order included hardware, software and product design

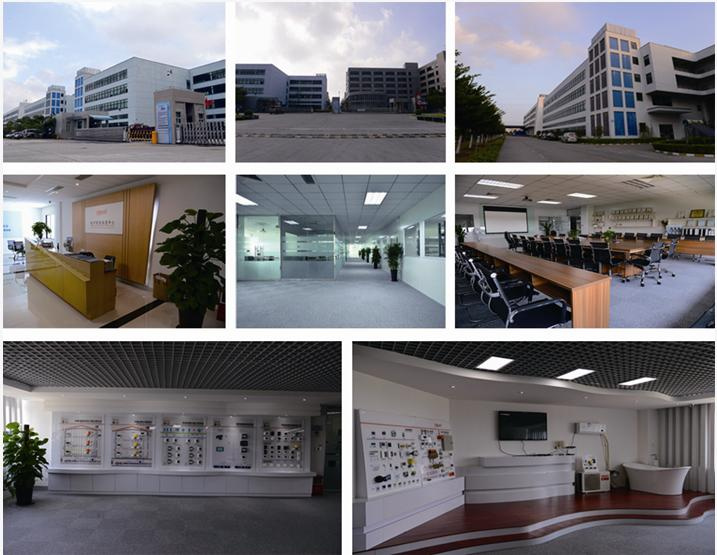

Zhuhai Edison Smart Home Co., Ltd. is a wholly owned subsidiary of Guangzhou Seagull Kitchen and Bath Products Co., Ltd. With the manufacturing base covering an area of 300, 000 square meters, which registered "Edison" trademark in European Union in 2003. In 2010, Edison won the "China Well-known Brand" title, and first passed "National Comfortable Housing Certificate" which was acknowledged by the National Housing and Urban & Rural Construction Ministry. Moreover, Edison won the Excellent Product Award at International high-tech Fair in 2012.

Seagull Group with the registered capital RMB280 Million went public in Shenzhen Stock Exchange A share in 2006. By now, the total asset of Seagull Group is high up to RMB1, 510 Million, its annual sales volume is over 60 million units and constant sales revenue enjoys more than RMB1.2 billion.

Seagull Group as a high-tech enterprise has passed ISO9001 International Quality System Certification and established ISO14001 Environmental Management System & OHSAS8001 Career Health System.

Relying on the solid technology and the production capability of Seagull Group in casting of copper alloys, forging, machining, plating, electronics & communication and other fields, Edison has developed many series of HVAC control products in the past decade and obtained the professional certificate in Europe, America and Australia etc. Thereby Edison keeps the leading position in the domestic HVAC industry. Edison focused on developing HVAC energysaving, water saving, environmental products and invested a huge sum of money to supply under floor heating, radiator, intelligent control system of air conditioning, integration system of heating measurement & temperature, and the corresponding accessory products in comfortable household product field characterized at thermostatic, constant moisture & constant oxygen to meet a variety of individual demand of the government and the market. Among them, Heat Metering and Temperature control system and the Time On/Off & Area Metering System have been cognized by both the government and industry in the northeast, north China and northwest regions.

Edison stresses independent research & development and has obtained numbers of technology patent. To meet customer's individual demand through rapid response, Edison is anticipated to achieve a win-win situation of common development for both the company and customer.

Edison adhering to steady development -- "be honest, hardworking, loving and do not take shortcuts".

We will continue to work hard to create a comfortable environment for sustainable development of society, focusing on the integration of comfortable home systems and HVAC energy saving, and serving the community.

Edison has obtained more than 40 invention patents and utility patents in the field of HVAC control and zigbee technology, and achieved related professional certifications in Europe, America, Australia and other countries.
