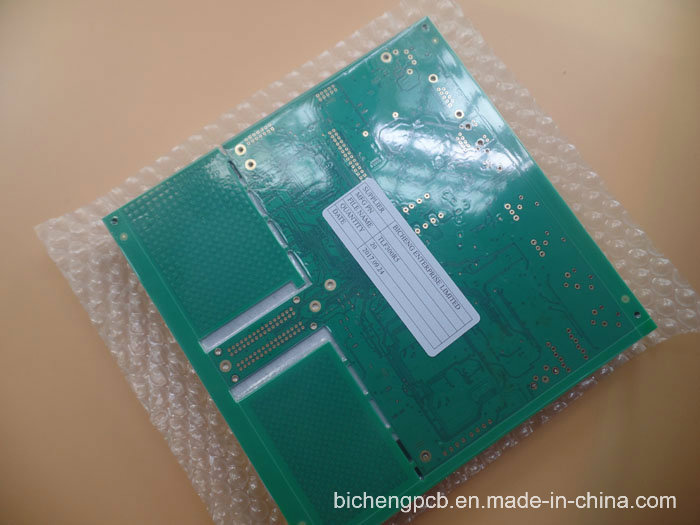

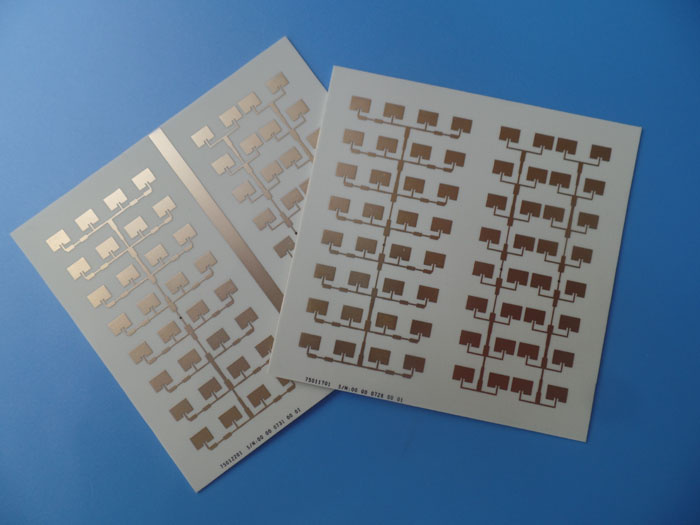

Lead Free PCB Specified Dielectric Taconic 10layer
| Price: |
US $ 2.90/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-481.1757-V1.1 |
| Final Foil External: |
1oz |
| Final Height Of PCB: |
1.6mm |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Green, Psr-2000gt600d, Taiyo |
| Colour Of Component Legend: |
White, Ijr+4000 MW300, Taiyo |
| Minimum Trace And Space: |
4mil/4mil |
| Minimum / Maximum Holes: |
0.3/6.60mm |
| Test: |
100% Electrical Test Prior Shipment |
| Impedance Control: |
Differential Pairs, 4/4mil, 4.5/6mil 90ohm |
| Outline Dimension: |
0.0059" (0.15mm) |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Brand: |
Bicheng |

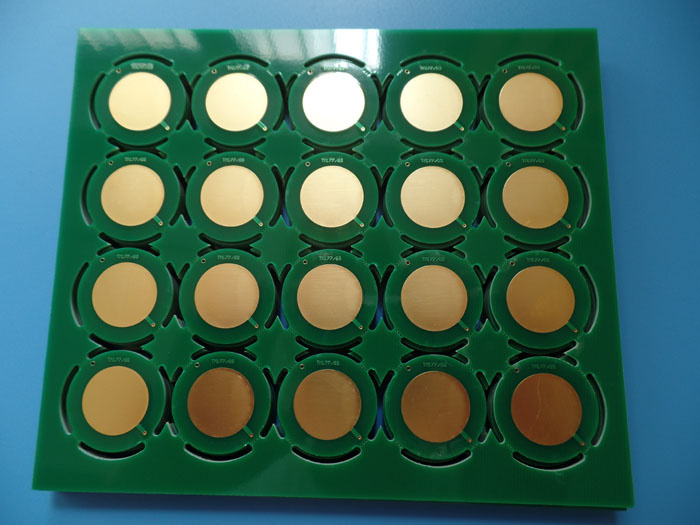

Product Description
Parameters & Data Sheet| PCB SIZE | 245 x 221mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 10 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 17um(0.5oz)+plate TOP Signal |
| 4mil prepreg |
| copper ------- 18um(0.5oz) GND Plane |
| 5mil FR-4 |
| copper ------- 18um(0.5oz) SIG1 |
| 5mil prepreg |
| copper ------- 18um(0.5oz) SIG2 |
| 5mil FR-4 |
| copper ------- 18um(0.5oz) PWR Plane |
| 13mil prepreg |
| copper ------- 18um(0.5oz) GND Plane |
| 5mil FR-4 |
| copper ------- 18um(0.5oz) SIG3 |
| 5mil prepreg |
| copper ------- 35um(1oz) SIG4 |
| 5mil FR-4 |
| copper ------- 35um(1oz) GND Plane |
| 4mil prepreg |
| copper ------- 17um(0.5oz)+plate BOT Signal |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4mil/4mil |
| Minimum / Maximum Holes: | 0.3/6.6mm |
| Number of Different Holes: | 19 |
| Number of Drill Holes: | 3019 |
| Number of Milled Slots: | 2 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | Differential pairs impedance control, L1-L3-L7-L10, 4/4mil, 4.5/6mil 90ohm+/-10%.Single trace impedance
control: L3- L4- L7- L8, 4mil, 7mil track 50 ohm +/-10% |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-180 TG>170, er<5.4 |
| Final foil external: | 1.0oz |
| Final foil internal: | 0.5oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold (22.1%) 2µ" over 100µ" nickel |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Green, psr-2000GT600D, TAIYO |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR+4000 MW300, TAIYO |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Tracking Devices For Vehicles
Plc Programming Tutorial
Fleet GPS Tracking
AC AC Converter
Satellite Systems, Embeded System |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Parameters & Data Sheet| PCB SIZE | 245 x 221mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 10 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 17um(0.5oz)+plate TOP Signal |
| 4mil prepreg |
| copper ------- 18um(0.5oz) GND Plane |
| 5mil FR-4 |
| copper ------- 18um(0.5oz) SIG1 |
| 5mil prepreg |
| copper ------- 18um(0.5oz) SIG2 |
| 5mil FR-4 |
| copper ------- 18um(0.5oz) PWR Plane |
| 13mil prepreg |
| copper ------- 18um(0.5oz) GND Plane |
| 5mil FR-4 |
| copper ------- 18um(0.5oz) SIG3 |
| 5mil prepreg |
| copper ------- 35um(1oz) SIG4 |
| 5mil FR-4 |
| copper ------- 35um(1oz) GND Plane |
| 4mil prepreg |
| copper ------- 17um(0.5oz)+plate BOT Signal |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4mil/4mil |
| Minimum / Maximum Holes: | 0.3/6.6mm |
| Number of Different Holes: | 19 |
| Number of Drill Holes: | 3019 |
| Number of Milled Slots: | 2 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | Differential pairs impedance control, L1-L3-L7-L10, 4/4mil, 4.5/6mil 90ohm+/-10%.Single trace impedance
control: L3- L4- L7- L8, 4mil, 7mil track 50 ohm +/-10% |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-180 TG>170, er<5.4 |
| Final foil external: | 1.0oz |
| Final foil internal: | 0.5oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold (22.1%) 2µ" over 100µ" nickel |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Green, psr-2000GT600D, TAIYO |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR+4000 MW300, TAIYO |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Tracking Devices For Vehicles
Plc Programming Tutorial
Fleet GPS Tracking
AC AC Converter
Satellite Systems, Embeded System |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |

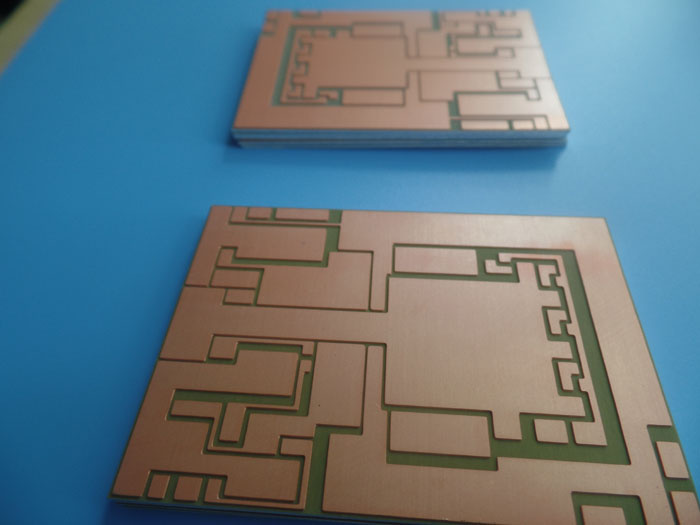

Company ProfileYou're benefit from following 5 types of 2 layer PCB's from Bicheng Enterprise Limited.
(1) FR-4 material (The most common used today)
Normal TG, High TG 170, High CTI 600V
Material (CCL) Brand: ITEQ, SHENGYI, KB
(2) High frequency material
RO4350B, RO4003C
PTFE (F4B series from China Brand)
(3) Insulated Metal Substrate (IMS) PCB, typical stack-up as follows
L1---Copper conductor
PP---dielectric material
L2---copper conductor
PP---dielectric material
AL---aluminum base
(4) Metal core PCB (MCPCB), typical stack-up as follows
L1---copper conductor
PP---dielectric material
AL---aluminum core
PP---dielectric material
L2---copper conductor

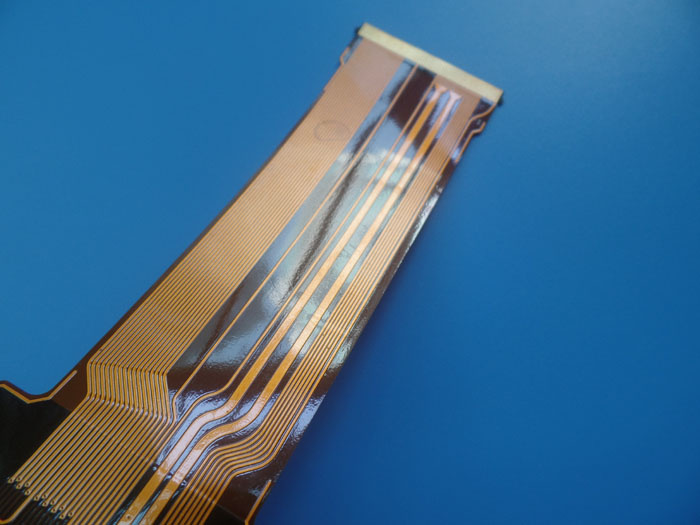

(5)Polyimide material (Flexible PCB)
PCB Board
Aluminum PCB
Microwave PCB
Flexible PCB
Shipping method:
By DHL, UPS, FedEx, TNT using clients account (for prototypes)
The forwarder agent of DHL, UPS, FedEx, TNT in Shenzhen
We can ship parcel by Russia special airline for Russian customer
By sea or air for mass quantity according to customer's requirements
By customer's forwarder
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
