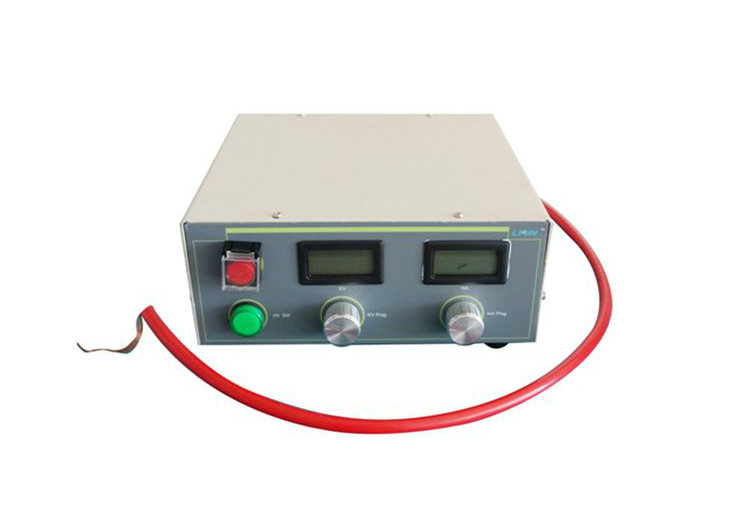

Leadsun High Voltage DC Power Supply LP50KV/1mA 24V Input 50kv Output

Prod Model:	50KV 1mA
Tj:	-20oc~50oc
Working Frequency:	50kHz
Output Type:	Single
Warranty:	1 Year
Output Power:	1 - 50W
Input Voltage:	220V
Connection Mode:	Series Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CE
Starting Mode:	Soft Start
Brand:	Leadsun

Product Description

Leadsun High Voltage DC Power Supply LP50KV/1mA 24V Input 50KV Output
Product Description
High Voltage Power Supply ESP50KV-1MA

Items	Parameters	Remarks
Input voltage	24V DC	Wave less than 10%
Rating power	50W
Max rating output voltage	50kV
Max rating output current	1mA
Comparative voltage control accuracy	0.5%	Uo=80%*Umax
Absolute voltage control accuracy	1.5%	Uo=80%*Umax
Voltage/temperature Coefficient	20V/1K
Voltage programming accuracy	Better than 5%
Output Voltage range	0-50 KV adjustable
Output limited current	1.0mA
Control response time	Better than 50mS
Ambient temperature	-20~50ºC
Ambient humidity	10%~90% no atomization
Cooling system	air cooling
Voltage adjusting system	Phase-shifting PWM
current control mode	Peak value testing Constant current of average value	Within 100nS peak value overloading, cut up and restart automatically
Working frequency	40khz
Exchanging efficiency	Better than 70%	Output voltage from 50%~75%, efficiency 80%~90%
Voltage regulation rate	0.5%
Outline dimension	220*220*100	Height*width*depth
Voltage and current programming	By potentiometer
