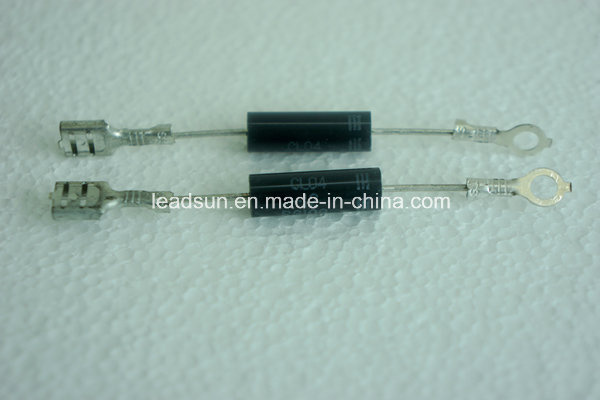

Leadsun High Voltage Diode Cl04-12 12kv

Name: Leadsun High Voltage Diode Cl04-12 12kv
Brand: all-electronics-online.com
SKU: 716105902
Availability: InStock
Rating: 5 (103 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CL04-12
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	P-type Semiconductor
Package:	Through-Hole
Application:	Rectifiction
Model:	Cl04-12
Brand:	Leadsun

Product Description

CL04-12 High voltage rectifier diode using high reliable mesa structure and diffusion craftwork, epoxy resin molded in compact structure.
Feature:
Avalanche characteristic
More sizes to choose
vacuum molded, non-corrosive epoxy resin case
Tj:-40ºC--+120ºC

Application:
High voltage rectifier used in electrostatic cleaning ·
High voltage generator
High voltage testing equipment
General purpose high voltage rectifier, voltage multiplier assembly

Absolute Maximum Ratings

No.	Item	symbol	Rating	Unit	Conditions
1	Repetitive Peak Reveres	VRRM	12	KV
2	Maximum Junction Temperature	Tjmax	125	ºC
3	Storage Temperature	Tstg	-40~+125	ºC
4	Average Forward Current	IO	450	mA
5	Forward Surge Current	IFSM	30	A

Electrical Characteristics (Tamb=25ºC,unless otherwise specified )

No.	Item	Symbol	Rating	Unit	Conditions
1	Normal Temperature Reverse Current	IR1	2.0max	μA	VR=VRRM
2	High Temperature Reverse Current	IR2	50max	μA	VR=VRRM Tamb=100ºC
3	Reverse Breakdown Voltage	VF	12.5	V	IF=450mA
4	Reverse Recovery Time	Trr		nS	IF=50mA IR=100mA

Test Conditions

No.	Item	Rating	Conditions
1	High Temperature Reverse Voltage Test	1000 hours	Half sinewave voltage with f=50HZ applied Tamb=100ºC
2	High Temperature Storage Test	1000 hours	Tamb=130±2ºC( in air )
3	Temperature change go on Damp heat Cyclic Test	five cycle two cycle	-40ºC(30min)→R.T.(3min)→+130ºC(30min)→R.T.(3min)×5 25ºC↗55ºC98%R.H.(3h)→55ºC98%↘93%R.H.(10min)→55ºC93%R.H.(8h40min)→55ºC93%↗98% R.H.(10min)→55ºC↘25ºC98%R.H.(3h)→25ºC98%R.H.(9h)×2
4	Resistance tp Soldering Heat Test	1 time	Solder trough Temperature : 350±10ºC Dip Time : 3.5s±0.5s
5	High-pressure smoke Test	10 hours	120ºC, 2×105pa
6	Insulation Resistance Test	1000MΩ1000MΩ	Between the center of the body and terminal , See Fig 1
7	Insulation Strength Test	10KV	1 minute between the center of the body and terminal .See Fig 1
8	Lead Bend Test	1 time	Force 10 N to the lead ,bent it to positive and negative 90 degree
9	Lead Pull Test	1 time	Force 70 N of axial to the lead for one minute
10	Drop Test	10 times	Naturally drop from 1 m height on maple plate

This is leadsun electronics from Anshan, China. Our company is specializing in designing and producing types of high voltage components, such as high voltage diodes, high voltage bridge rectifier, high voltage silicon assembly, special high voltage modular, multiply voltage modular and high frequency high voltage power supply. These products are widely applied for electrostatic cleaning, medical X-ray machine, CT, MR, dehydrating of crude oil, broadcast launching, laser power supply, high voltage modular, high voltage test equipment, TV/display FBT, air purifier, power supply, etc.
