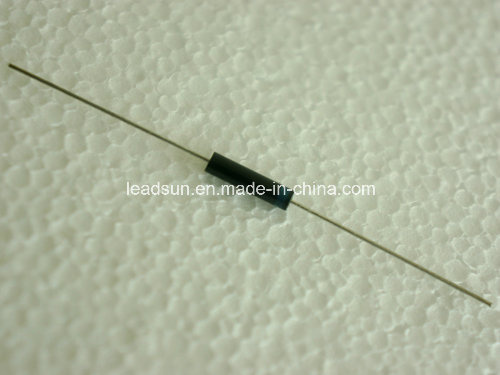

Leadsun High Voltage Diode Hv37-08 Medium Power High Voltage Silicon Diodes

Name: Leadsun High Voltage Diode Hv37-08 Medium Power High Voltage Silicon Diodes
Brand: all-electronics-online.com
SKU: 716098932
Availability: InStock
Rating: 4.3 (132 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HV37-08
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	P-type Semiconductor
Package:	Through-Hole
Application:	Rectification
Model:	Hv37-08
Brand:	Leadsun

Product Description

HV37-08 high voltage diodes adopt the designing of high reliable multiple mesa structure and silicon tube, molded in small volume and compact packaging surface by epoxy resin.
Features:
1.Fast recovery
2.Low forward on pressure, low leakage current
3.Protection of avalanche breakdown
4.Antiimpacting of discharging of CRT high voltage surge current
5.Axial lead diode, could weld on tube pin
6.Epoxy resin molded and can resist corrosion on its surface
Application:
l .Television and FBT display
2.Cathode ion generator, laser power supply
3.Neon lamp power supply, voltage multiplier assembly
4.DC high voltage generator assembly

No.	Item	Symbol	Unit	Rating	Conditions
1	Repetitive Peak Reverse Voltage	V_RRM	KV	8
2	Average Forward Current	I_{F (AV)}	mA	400	Tamb=60^oC 50HZ Sine-half Wave Rectification Average Value
3	Forward Surge Current	I_F_S_M	A	30A	Tamb=25^oC 50HZ Sine-half Wave,One Shot
4	Maximum Junction Temperature	T_jmax	^oC	130
5	Storage Temperature	T_stg	^oC	-40~+130

NO.	Item	Symbol	Unit	Rating	Test conditions
1	Forward Voltage Drop	V_FM	V	18max	I_F(AV)=400mA
2	Normal Temperature Reverse Current	I_RM₁	μA	2.0max	V_RM=8KV
3	High Temperature Reverse Current	I_RM₂	μA	15max	Tamb=100^oC V_RM=8KV
4	Reverse Recovery Time	trr	nS	80max	I_F=50 mA, I_R=100 mA.

This is leadsun electronics from Anshan, China. Our company is specializing in designing and producing types of high voltage components, such as high voltage diodes, high voltage bridge rectifier, high voltage silicon assembly, special high voltage modular, multiply voltage modular and high frequency high voltage power supply. These products are widely applied for electrostatic cleaning, medical X-ray machine, CT, MR, dehydrating of crude oil, broadcast launching, laser power supply, high voltage modular, high voltage test equipment, TV/display FBT, air purifier, power supply, etc.
