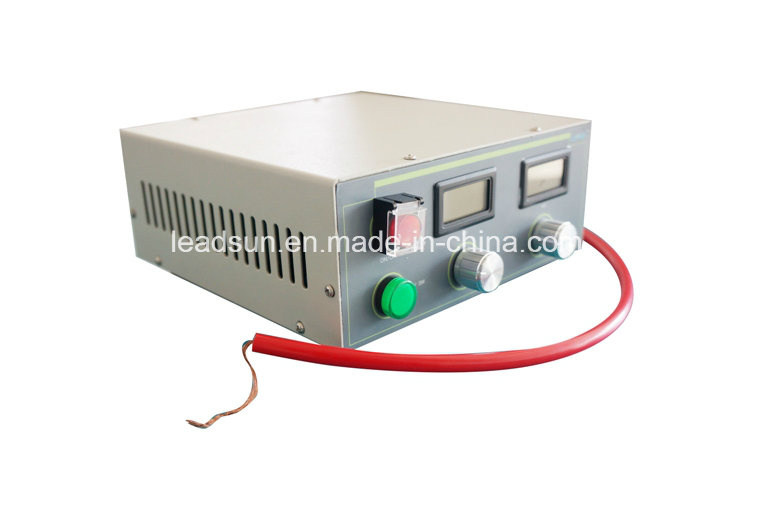

Leadsun Input 24V DC Output 30KV Variable Power Supply 30KV/1mA

Name: Leadsun Input 24V DC Output 30KV Variable Power Supply 30KV/1mA
Brand: all-electronics-online.com
SKU: 698959202
Availability: InStock
Rating: 4.9 (135 reviews)

Price:	US $ 645.16-1129.03/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	30KV/1mA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ambient Temperature:	-20oc~50oc
LHB:	1506060
Cooling:	Air Cooling
Output Type:	Single
Warranty:	1 Year
Output Power:	1 - 50W
Connection Mode:	Series Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CE
Input Voltage:	24V DC
Starting Mode:	Soft Start
Brand:	Leadsun

Product Description

Product Description
High Frequency High Voltage LA series LS30KV/1mA DC to DC

Item	Parameters	Remarks
Input voltage	24V DC	Wave less than 10%
Rated power	30W	Full load, output Umax, Imax
Rated output voltage	30kV
Rated output current	1mA
Relative voltage control accuracy	3%	*Uo=80%Umax**
Absolute voltage control accuracy	5%	*Uo=80%Umax**
Voltage/temperature coefficient	100V/1K
Voltage program accuracy	Better than 5%
Voltage output range	5-30KV adjustable
Output limiting current	1mA
Control response time	Better than 50mS
Ambient temperature	-20 ~ 50 ºC
Ambient humidity	10%-90% no atomization
Cooling	Air cooling
Constant voltage control mode	PWM
Current control mode	Constant current of average value Peak value testing	Within 100nS peak value testing, cut off and restart automatically
Working frequency	30kHz
Exchanging frequency	Better than 70%	Output voltage from 50%-75%,efficiency 80%-90%
Voltage regulation rate	5%	5mA-à10mA
Current voltage display	Displayed by pointer of the meter
Current and voltage program mode	By potentiometer
Dimension	*1506060 mm* *LHB*
