| Prod Model: |
ES-6005GD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mounted Way: |
Wall Mounted |
| Detector Type: |
Wired or Wireless Optional |
| Operation Voltage: |
110V-265V AC/12V/24V DC |
| Sensor Type: |
Semiconductor |
| Gas Can Be Detected: |
Natural Gas, LPG, Coal Gas |
| Installation Mode: |
Wall Mounted |
| Application: |
Special Equipment, Car/Motorcycle, Home, Traffic, Industry |
| Usage: |
Gas |
| Type: |
Sensor |
Product Description

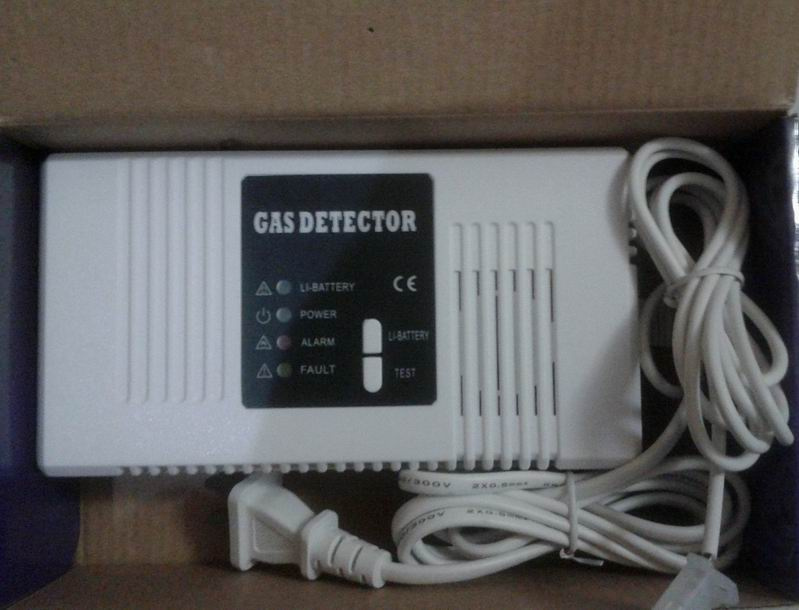

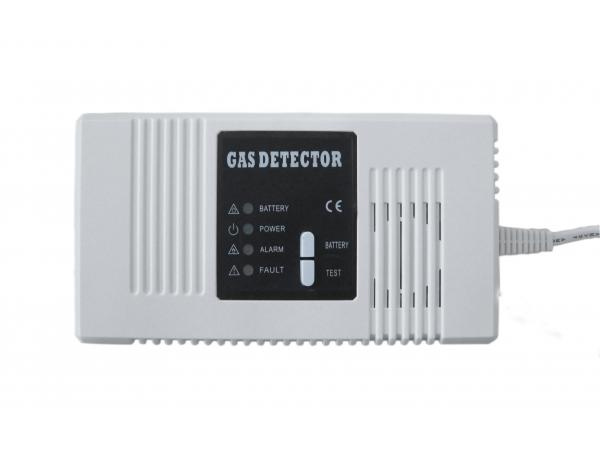

Leakage Alarm Gas Detector with rechargeable Li battery
Main features1. Modes of Operation:
I.
Independent Mode: When the detector used independently, it produces a sound and light alarm.
II.
Compatible Modes: The detector can also be connected in one of the following five modes.
· Wired network
· Wireless network
· Electromagnetic valve
· Wireless network and exhaust fan
· Wireless network with electromagnetic valve
Technical Parameters I. Sensor: Semiconductor type sensor
II. Static current: ≤ 40mA
III. Alarm current: ≤ 150mA
IV. Static consumption:
<1W
V. Alarm consumption
<3W
VI. Alarm volume: ≥ 80dB
VII. Working environment
: · Temperature
: 0ºC - 60ºC
· Humidity: ≤ 97%RH
VIII. Alarm density: Liquid petroleum gas: 1000ppm - 5000ppm
IX. Natural gas: 1000ppm-10000ppm
X. Responding recovery time:
≤30S
I. Li-Battery capacity: 1200mha, battery mode: about 24 hours
Detachable shut off valve wireWiringThe Yellow, Blue and White wires only need to be connected if you intend to trigger an external device such as a siren or monitoring systema. Red wire = Positive power input. This wire must be connected to a permanent 220v AC positive source.
b. Black wire = Negative power input. This wire must be connected to a permanent 220v AC negative source.
c. Yellow wire = Relay (Common) COM contact.
d. Blue wire = Relay (Normally open) NO contact.
e. White wire = Relay Normally closed) NC contact.
If you are connecting an exhaust fan to the detector, connect both blue and yellow wires to the exhaust switch.
Can work with gas solenoid valveFeatures
Well airproofed
Low power consumption
High sensitivity
Reliable performance
Small size and easy handle
Technical data
Target gas: Natural gas, lpg, and coal gas etc
Diameter: G1/2(dn15)-g4 (dn100)
Material: Brass or aluminium
Airproof material: Nbr rubber, fkm rubber
Opening manner: Manual reset
Closing manner: Dc power pulse actuation /manual
Valve closed time: ≤ 1sec
Allowed continued powered time: ≤ 30secs
Explosive proof level: Ip54 (request with shield)
LED Display
Packing
